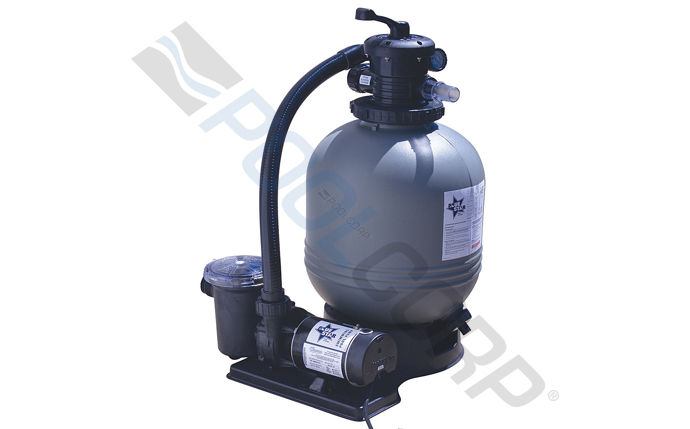

22" Blue Star Standard Sand System with 3' Cord
Product #:AG-PE-100011
Mfg. Part #:BS5225340-6S
- This product is obsolete.
- The superceded product was not found.
Waterway Plastics BS522-5340-6S Blue Star Standard Sand Filter System; 22 Inch, 2.6 sq-ft, 3 ft NEMA Cord, 1.5 HP 2-Speed Pump
22" Blue Star Standard Sand System with 3' Cord
Product #:AG-PE-100011
Mfg. Part #:BS5225340-6S
Description
22" Blue Star Standard Sand System with 3' Cord
Documents
No documents available
Branch Availability
content loaded
Specifications
- ColorGray
- Shipping Dimensions29 x 26 x 29.5 inch
- Design Flow Rate55 gal/min
- Each Product Weight82 pound
- Filtration Area2.6 square feet
- FinishStandard
- Horsepower1.5 horse power
- Includes2 Hoses (1-1/2 Inch x 6 ft), Filter/Pump Hose with Union Adapters, Hose Fittings and Hose Clamps, Standard System Base
- Master Carton Quantity1
- Pallet Quantity1
- Filter Control Valve7-Position, Top-Mount Multi-Port with Lever-Action Handle
- Motor Speed2-Speed
- Mounting BaseMolded Thermoplastic
- UPC Code806105435019
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

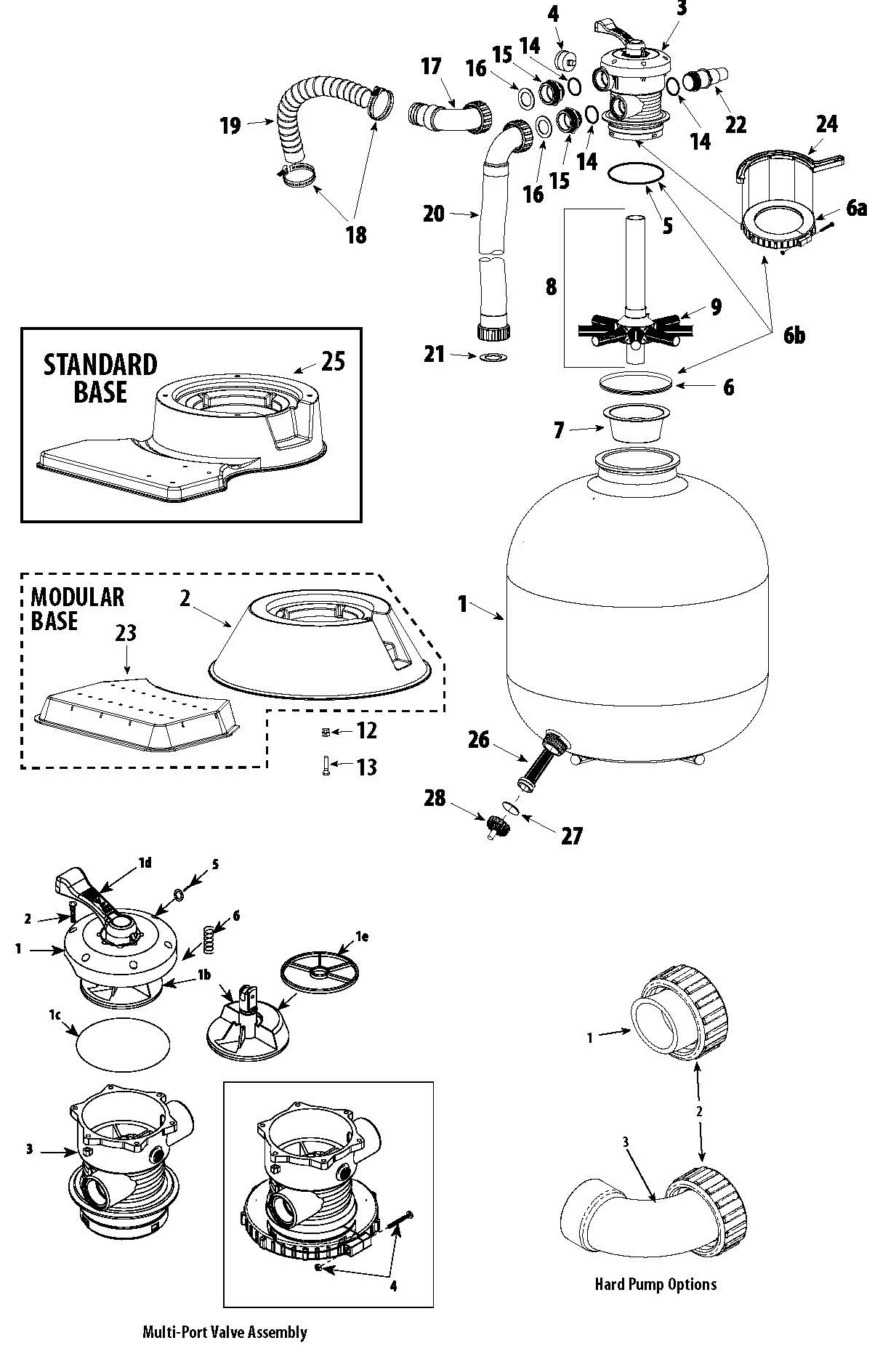

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
505-0281B
19" Oval Sand Filter Body with Threaded Sleeve Assembly
Product #:
Mfg #: 505-0281B
Notes:
Sand Filter Assembly2
2
672-7211B
Modular Filter Base
Product #:
Mfg #: 672-7211B
Notes:
Sand Filter Assembly3
3
WVS003B
WWP-051-7504
Product #: WWP-051-7504
Mfg #: WVS003B
Notes:
Sand Filter Assembly4
4
830-3000B
Pressure Gauge
Product #:
Mfg #: 830-3000B
Notes:
Sand Filter Assembly5
5
805-0435B
O-Ring - Multi-Port Valve
Product #:
Mfg #: 805-0435B
Notes:
Sand Filter Assembly6
6
505-3000B
Threaded Sleeve Assembly
Product #:
Mfg #: 505-3000B
Notes:
Sand Filter Assembly6a
6a
505-3010B
Split-Nut Assembly - Multi-Port Valve
Product #:
Mfg #: 505-3010B
Notes:
Sand Filter Assembly6b
6b
505-3020B
Split-Nut Assembly - Multi-Port Valve with Thread Sleeve and O-Ring
Product #:
Mfg #: 505-3020B
Notes:
Sand Filter Assembly7
7
502-2011B
Sand Fill Guide
Product #:
Mfg #: 502-2011B
Notes:
Sand Filter Assembly8
8
505-2150B
Lateral and Manifold Assembly - 19" Filter
Product #:
Mfg #: 505-2150B
Notes:
Sand Filter Assembly9
9
505-1930B
WWP-051-9806
Product #: WWP-051-9806
Mfg #: 505-1930B
Notes:
Sand Filter Assembly10
10
505-2020B
Drain Assembly (2004 and earlier)
Product #:
Mfg #: 505-2020B
Notes:
Sand Filter Assembly11
11
505-2030B
Drain Cap Assembly (2004 and earlier)
Product #:
Mfg #: 505-2030B
Notes:
Sand Filter Assembly12
12
820-0017B
3⁄8" Flat Washer
Product #:
Mfg #: 820-0017B
Notes:
Sand Filter Assembly13
13
819-0019B
3⁄8" Bolt -16 x 1 1⁄2" Hex - 19" Sand Filter
Product #:
Mfg #: 819-0019B
Notes:
Sand Filter AssemblyWholegoods
