Waterway
25 SqFt Top Load Cartridge Filter with Bypass Valve
Product #:WWP-05-3002
Mfg. Part #:502-2510
Waterway 502-2510 25 SqFt Top Load Cartridge Filter with Bypass Valve and 2" Slip
Waterway
25 SqFt Top Load Cartridge Filter with Bypass Valve
Product #:WWP-05-3002
Mfg. Part #:502-2510
Description
Waterway 502-2510 25 SqFt Top Load Cartridge Filter with Bypass Valve and 2" Slip. Designed for top load installations, this 25 SqFt cartridge filter prevents debris from contaminating pool water. The bypass valve releases when water pressure reaches high levels, protecting the filter cartridge. Made of durable PVC, the cartridge filter will provide years of dependable service.
Documents
No documents available
Branch Availability
content loaded
Specifications
- BrandWaterway
- ApplicationSpa
- ColorWhite
- Each Product Weight7.92 pound
- Filtration Area25 square feet
- FinishStandard
- Master Carton Quantity1
- MaterialPVC or Polyvinyl Chloride
- Minimum Sell Quantity1
- Pallet Quantity1
- Product Height18 inch
- Tank Diameter7.5 inch
- UPC Code806105088420
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

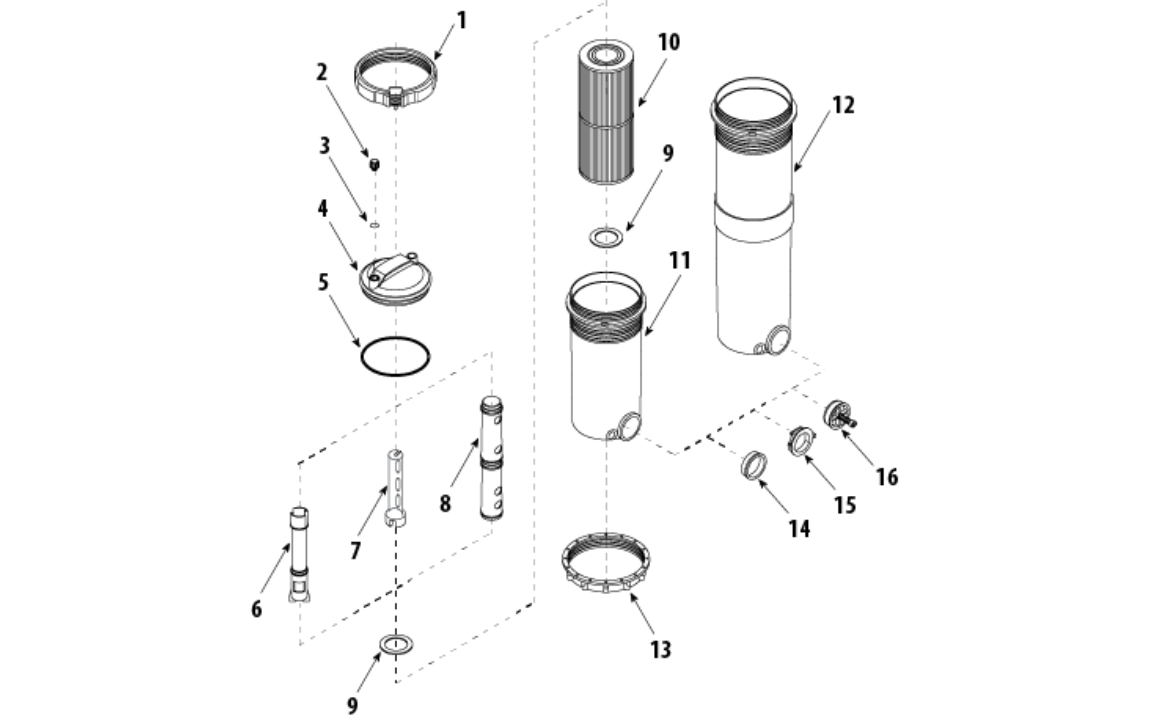

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
2
2
715-1001B
Plug - Air Relief
Product #:
Mfg #: 715-1001B
3
3
805-0114B
O-Ring - Air Relief Plug
Product #:
Mfg #: 805-0114B
4
4
511-1000B
Filter Lid with Handle
Product #:
Mfg #: 511-1000B
5
5
805-0360B
O-Ring - Filter Lid
Product #:
Mfg #: 805-0360B
6
6
500-1070B
Brominator Assembly - 10 Tablet
Product #:
Mfg #: 500-1070B
7
7
519-1051B
Mineral Purifier Canister Holder
Product #:
Mfg #: 519-1051B
8
8
500-1060B
Flow Restriction Tube
Product #:
Mfg #: 500-1060B
9
9
711-1010B
Spacer Ring
Product #:
Mfg #: 711-1010B
10
10
817-2500B
Filter Cartridge - 25 sq. ft. - 4 15⁄16" OD x 13 5⁄16" L
Product #:
Mfg #: 817-2500B
11
11
550-5000B
1 1⁄2" Filter Body - with Bypass
Product #:
Mfg #: 550-5000B
13
13
718-1000B
Nut - Filter Body
Product #:
Mfg #: 718-1000B
14
14
715-1010B
1 1⁄2" Plug
Product #:
Mfg #: 715-1010B
15
15
600-1040B
2" Bypass Valve Assembly
Product #:
Mfg #: 600-1040B
