250' White Spa Light Stainless Steel Face Ring 100W 120V

Product #:JDY-30-2543

Mfg. Part #:WSHV100WS250

  • This product is obsolete.
  • The superceded product was not found.

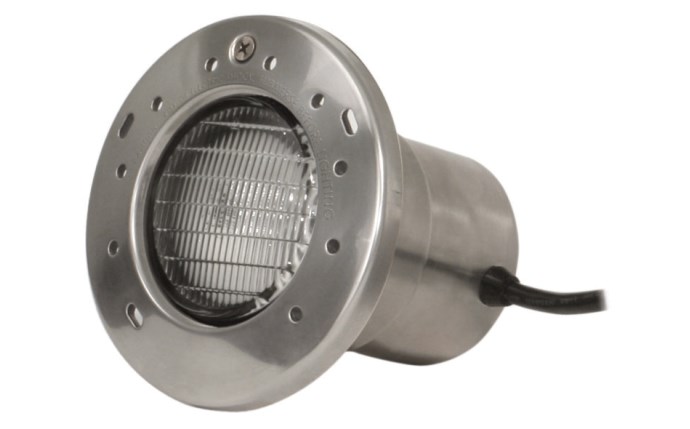

Jandy Pro Series WSHV100WS250 250' White Spa Light Stainless Steel Face Ring 100W 120V

Jandy

250' White Spa Light Stainless Steel Face Ring 100W 120V

Product #:JDY-30-2543

Mfg. Part #:WSHV100WS250

Description

Jandy Pro Series WSHV100WS250 250' White Spa Light Stainless Steel Face Ring 100W 120V lights up the night with a white pool and spa lights. Illuminate your pool and spa for an evening swim, backyard entertainment and added safety.

Documents

Feature Bullets

  • Stainless steel housing for corrosion-free performance
  • Incandescent version offers you all the choices you need for any pool
  • Cast a bright beam, far and wide
  • Unique tempered glass lens design
  • Illuminate the entry into your pool or spa and highlight tile and decking
  • ETL Listed to be installed in ProNiche or other manufacturer's niches

    • Branch Availability

    content loaded

    Specifications

    • BrandJandy
    • Cord Length250 foot
    • Shipping Dimensions16 x 16 x 12 inch
    • Each Product Weight27 pound
    • Light Bulb TypeIncandescent
    • Light ColorWhite
    • Master Carton Quantity1
    • MaterialStainless Steel
    • Minimum Sell Quantity1
    • Pallet Quantity1
    • Wattage100 watt
    • ChannelNone
    • UPC Code052337027458

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

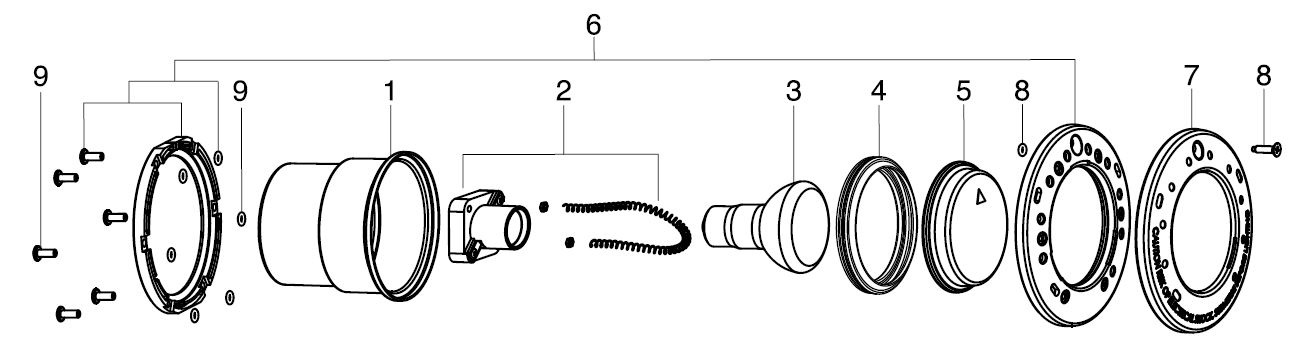

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    3
    3
    R0450501
    JDY-301-0084
    R0450501 100W 12V LG & SM WHITE LIGHT FLOOD LAMP
    Product #: JDY-301-0084
    Mfg #: R0450501
    3
    3
    R0450505
    JDY-301-0083
    R0450505 100W 120V SM WHITE LIGHT FLOOD LAMP
    Product #: JDY-301-0083
    Mfg #: R0450505
    4
    4
    R0400501
    JDY-301-4022
    R0400501 SILICONE SPA LIGHT LENS GASKET
    Product #: JDY-301-4022
    Mfg #: R0400501
    4
    4
    R0791100
    JDY-301-0805
    Silicone Gasket for Small CPHVLED & CPLVLED Series
    Product #: JDY-301-0805
    Mfg #: R0791100
    5
    5
    R0400601
    JDY-301-4023
    Glass Lens for Incandescent Light
    Product #: JDY-301-4023
    Mfg #: R0400601
    6
    6
    R0451201
    JDY-301-0016
    R0451201 SPA LIGHT CLAMP ASSY
    Product #: JDY-301-0016
    Mfg #: R0451201
    7
    7
    R0451301
    JDY-301-4014
    Small Stainless Steel Face Ring for Jandy® Incandescent Lights
    Product #: JDY-301-4014
    Mfg #: R0451301
    7
    7
    R0451302
    JDY-301-4015
    R0451302 WHITE PLASTIC SMALL FACE RING
    Product #: JDY-301-4015
    Mfg #: R0451302
    7
    7
    R0451303
    JDY-301-4016
    R0451303 BLACK PLASTIC SMALL FACE RING
    Product #: JDY-301-4016
    Mfg #: R0451303
    7
    7
    R0451304
    JDY-301-4017
    R0451304 GRY PLASTIC SMALL FACE RING
    Product #: JDY-301-4017
    Mfg #: R0451304
    7
    7
    R0451305
    JDY-301-1344
    R0451305 WHITE SPA LIGHT PLASTIC FACE RING SET
    Product #: JDY-301-1344
    Mfg #: R0451305
    8
    8
    R0450901
    JDY-301-4020
    R0450901 PILOT SCREW W/ RETAINER
    Product #: JDY-301-4020
    Mfg #: R0450901
    9
    9
    R0451401
    JDY-301-4024
    R0451401 CLAMP SCREW SET
    Product #: JDY-301-4024
    Mfg #: R0451401

    Wholegoods

    There are no wholegoods available.
