S.R. Smith

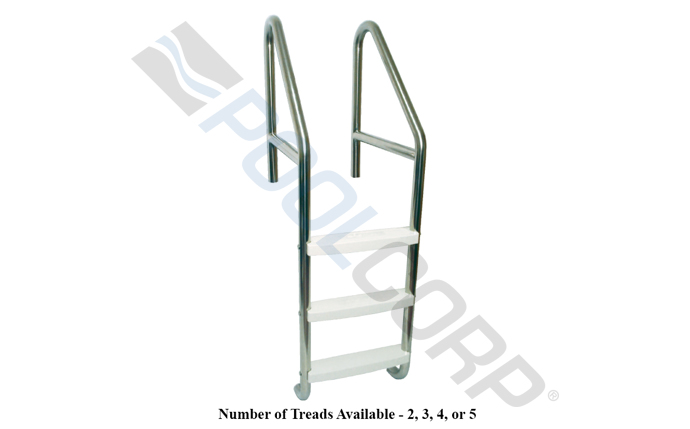

29" 3 Step Standard Plus Ladder with Crossbrace

Product #:SRS-35-8024

Mfg. Part #:10085


S.R. Smith 10085 29" 2 Step 304 Stainless Steel Standard Plus Ladder with Crossbrace with LTDF-106 Plastic Tread; 54" Height x 29" Width

S.R. Smith

29" 3 Step Standard Plus Ladder with Crossbrace

Product #:SRS-35-8024

Mfg. Part #:10085

Description

Standard Crossbrace Plus ladders are made from thick stainless steel tubing and are suitable for heavy duty use in commercial aquatic facilities. These ladders feature a crossbrace for added stability, with either durable plastic or stainless steel treads

Documents

Feature Bullets

  • The cross brace plus commercial ladder plastic series are moderate height ladders with moderate to long reach
  • The lower ends of the frames are bent to meet the pool wall and are fitted with white rubber bumpers
  • The cross brace is continuously welded to the front and rear legs by a tungsten inert gas process
  • The steps are constructed of white, heavy duty plastic with nominal dimension of 5 Inch x 20 Inch and come with all necessary stainless steel hardware
  • With proper anchoring, the cross brace plus Ladder is suitable for use on poured concrete, shotcrete, fiberglass, and vinyl commercial pools and spas as well as for other applications in most geographic areas
  • Ladder extends 5-1/2 Inch from pool wall
  • Frame is secured to the pool deck with two anchor sockets on 20 Inch centers

    • Branch Availability

    content loaded

    Specifications

    • BrandS.R. Smith
    • ApplicationPool
    • Shipping Dimensions59 x 39 x 2 inch
    • Commercial, Residential, or ProfessionalCommercial
    • Each Product Weight38 pound
    • Master Carton Quantity1
    • Material304 Stainless Steel
    • Minimum Sell Quantity1
    • Pallet Quantity1
    • Bend Radius4 inch
    • ChannelNone
    • Ladder Height54 inch
    • Ladder Width29 inch
    • Number of Steps2
    • Tread MaterialPlastic
    • Tubing Size Outer Diameter1.9 inch
    • Wall Thickness0.065 inch
    • UPC Code840671101930

    Parts & Schematics

    There are no parts or schematics available.
