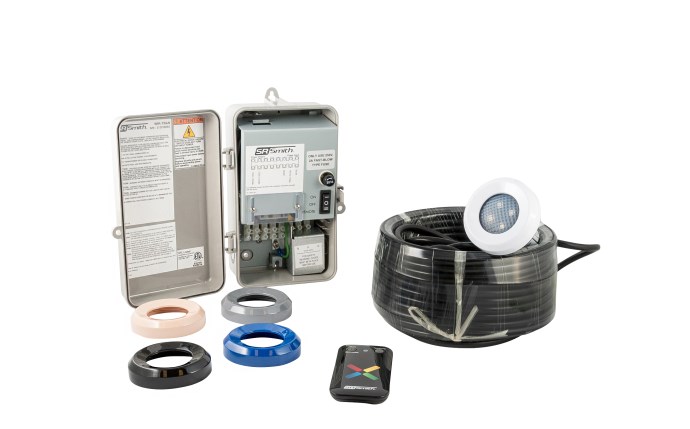

S.R. Smith Treo 1TR-WIRTRAN 30W Combo Kit with One Color LED Light, One WIR-TRAN Power Center & One Button Remote
Description
The WIR-TRAN wireless lighting control system is easy to install and simple to
operate. Now includes replaceable fuse for surge protection.
operate. Now includes replaceable fuse for surge protection.
Branch Availability
content loaded
Specifications
- BrandS.R. Smith
- ApplicationPool
- Shipping Dimensions18 x 16 x 12 inch
- ColorRed, Yellow, White, Green, Blue, Purple
- Commercial, Residential, or ProfessionalCommercial, Professional, Residential
- Cord Length80 foot
- Each Product Weight17 pound
- Includes(1) FLED-C-TR Color LED Pool Light, (1) WIR-TRAN Wireless Light Power Center with Internal 12 VAC Transformer and (1) Button Remote
- Light Bulb TypeLED
- Light Colorwhite, blue, green , red, amber, magenta
- Master Carton Quantity1
- Minimum Sell Quantity1
- Pallet Quantity1
- Power Rating (W)30
- Voltage Rating (VAC)120
- Wattage30 watt
- UPC Code840671120108

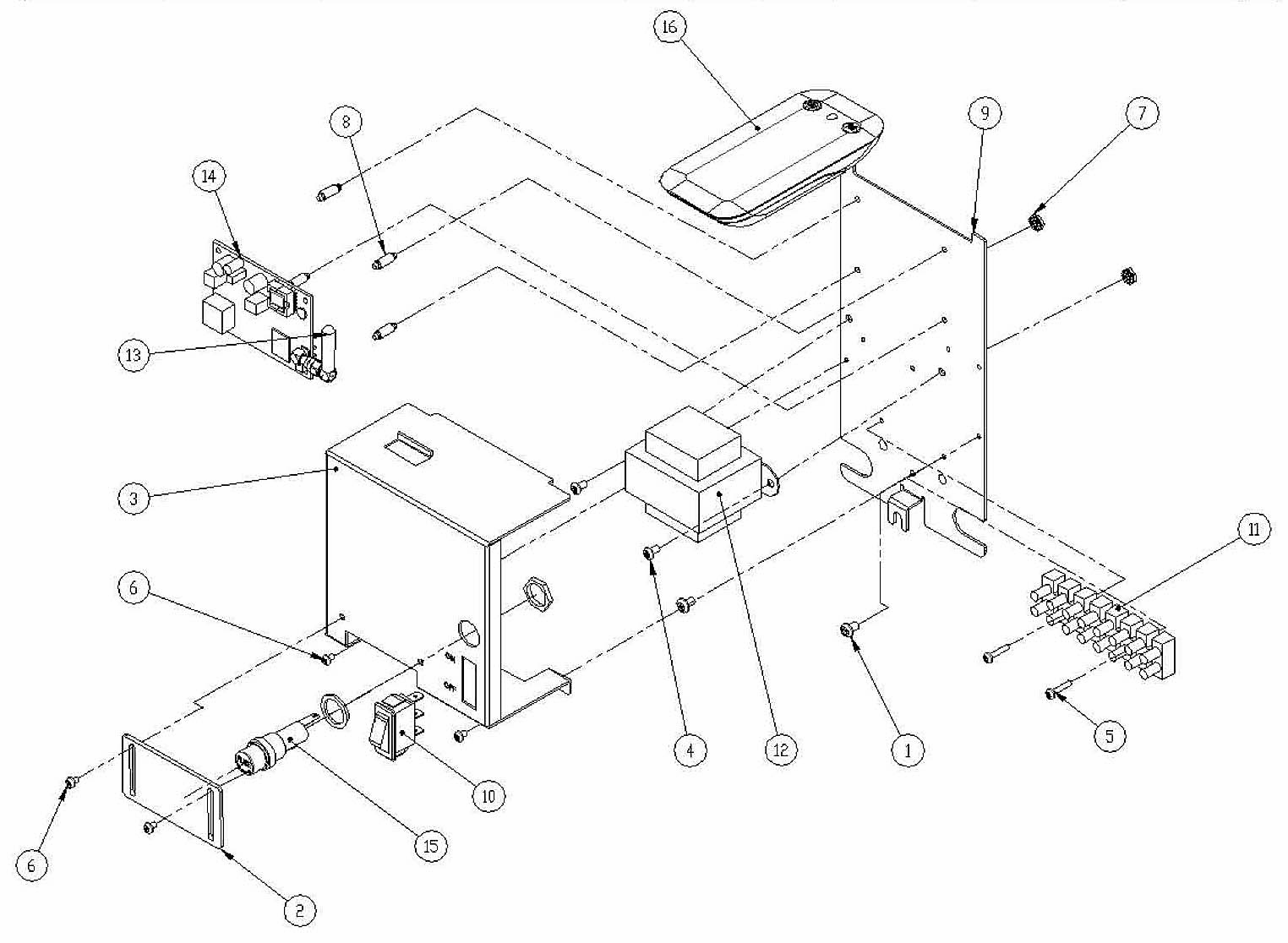

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
A10670
Screw, 8-32, 1/4 length
Product #:
Mfg #: A10670
2
2
02-15285-00
Relay Cover
Product #:
Mfg #: 02-15285-00
3
3
02-15314-00
Bracket Mount, WIR-TRAN
Product #:
Mfg #: 02-15314-00
4
4
10-15031-03
Screw, 6-32, 1/4 length
Product #:
Mfg #: 10-15031-03
5
5
10-15089-07
M3 Screw, 14mm length
Product #:
Mfg #: 10-15089-07
6
6
10-15089-01
M3 Screw, 4mm length
Product #:
Mfg #: 10-15089-01
7
7
11-15005-00
Nut, 6-32, Star Lock
Product #:
Mfg #: 11-15005-00
8
8
14-15032-00
PCB Standoff
Product #:
Mfg #: 14-15032-00
9
9
72-15210-00
Bracket, Mounting Plate
Product #:
Mfg #: 72-15210-00
10
10
38-15012-00
Rocker Switch, 20A, 125VAC
Product #:
Mfg #: 38-15012-00
11
11
41-15004-08
8 Position Terminal Block
Product #:
Mfg #: 41-15004-08
13
13
94-15265-00
Antennae, 5 CM, 915MHz
Product #:
Mfg #: 94-15265-00
14
14
94-15262-00
Receiver, 1-CH, W/120VAC, 915MHz
Product #:
Mfg #: 94-15262-00
15
15
A12664
Fuse Holder, 250V, 10A max
Product #:
Mfg #: A12664
16
16
94-15261-00
Transmitter, 1-CH, pLX Graphic
Product #:
Mfg #: 94-15261-00
