AquaStar Pool Products

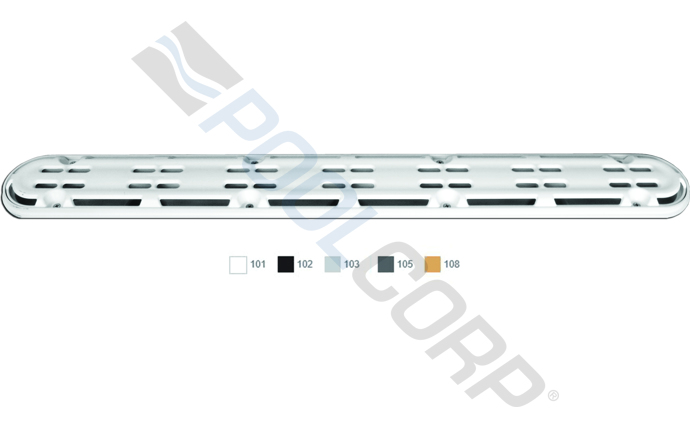

32" Black Channel Drain Anti Entrapment Suction Outlet Cover and Frame
Product #:API-25-1342
Mfg. Part #:32CDAVFR102
AquaStar Pool Products 32CDAVFR102 32" Black Channel Drain Anti Entrapment Suction Outlet Cover and Frame
AquaStar Pool Products
32" Black Channel Drain Anti Entrapment Suction Outlet Cover and Frame
Product #:API-25-1342
Mfg. Part #:32CDAVFR102
Description
This Channel Drain Anti Entrapment Suction Outlet Cover and Frame is for field-fabricated sumps in concrete pools. Disposable "dog bone" supports retain shape during all phases of construction. All components meet or exceed ANSI/APSP 16-2011 and NSF/ANSI 50-2009a national standards and ASTM G154 UV testing exposure.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandAquaStar Pool Products
- ApplicationPool
- Shipping Dimensions32.5 x 4.5 x 2 inch
- Cover Open Area22.6 square inch
- Each Product Weight2.167 pound
- Floor Flow Rate Measure A236 gal/min
- For Use WithFor Field-Fabricated Sump (Concrete Pools)
- Includes32 Inch Channel Drain, 32 Inch Anti Entrapment Suction Outlet Cover, (4) 32 Inch Channel Drain, Frame Support "Dog Bones", (16) #10 x 3/4 Inch Flat Head Phillips Type A 316 Stainless Steel Screw
- Master Carton Quantity12
- MaterialPolymer
- Minimum Sell Quantity1
- Pallet Quantity1
- Pool or Spa TypeConcrete
- Standards ApprovalsNSF Certified, ANSI Certified, APSP Certified, ASTM Certified
- Wall Flow Rate Measure A136 gal/min
- Floor Flow Rate Measure A at3.4 ft/s
- For Use WithFor Field-Fabricated Sump (Concrete Pools)
- Wall Flow Rate Measure A at1.9 ft/s
- UPC Code0883612002118
