AquaStar Pool Products

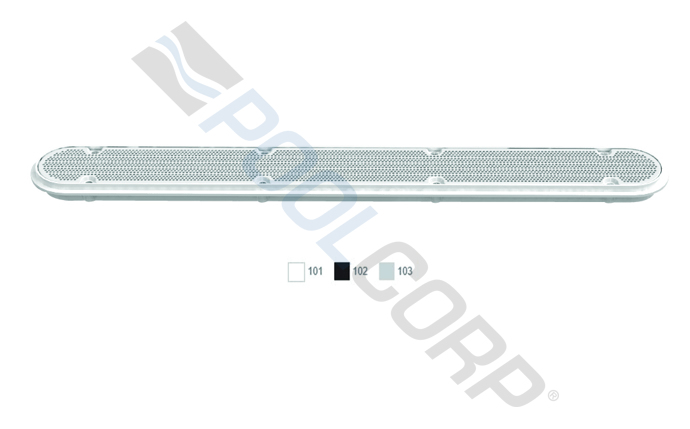

32" Light Gray Channel Drain Pinhole Anti Entrapment Cover and Frame
Product #:API-25-3218
Mfg. Part #:32CDPHFR103
AquaStar Pool Products 32CDPHFR103 32" Light Gray Channel Drain Pinhole Anti Entrapment Cover and Frame
AquaStar Pool Products
32" Light Gray Channel Drain Pinhole Anti Entrapment Cover and Frame
Product #:API-25-3218
Mfg. Part #:32CDPHFR103
Description
This Channel Drain Pinhole Anti Entrapment Suction Outlet Cover with Frame is for field-fabricated sumps in concrete pools. Disposable "dog bone" supports retain shape during all phases of construction. All components meet or exceed ANSI/APSP 16-2011 and NSF/ANSI 50-2009a national standards and ASTM G154 UV testing exposure.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandAquaStar Pool Products
- ApplicationInground, Pool
- Shipping Dimensions33 x 8 x 5 inch
- ColorLight Gray
- Cover Open Area27.9 square inch
- Each Product Weight2.167 pound
- Floor Flow Rate Measure A268 gal/min
- Includes32 Inch Channel Drain, (16) #10 x 3/4 Inch Flat Head Phillips Type A 316 Stainless Steel Screw, (4) 32 Inch Channel Drain, Frame Support "Dog Bones", 32 Inch Channel Drain Anti Entrapment Suction Outlet "Pinhole" Cover
- Master Carton Quantity12
- MaterialPolymer
- Minimum Sell Quantity1
- Pallet Quantity1
- Pool or Spa TypeConcrete
- Standards ApprovalsNSF Certified, ANSI Certified, APSP Certified, ASTM Certified
- Wall Flow Rate Measure A172 gal/min
- Floor Flow Rate Measure A at3.1 ft/s
- Wall Flow Rate Measure A at2 ft/s
- UPC Code0883612069791
