Brands
AquaStar Pool Products

32" Light Gray Channel Drain with 3-Port Sump for Vinyl

Product #:API-25-1709

Mfg. Part #:32CDFLV103

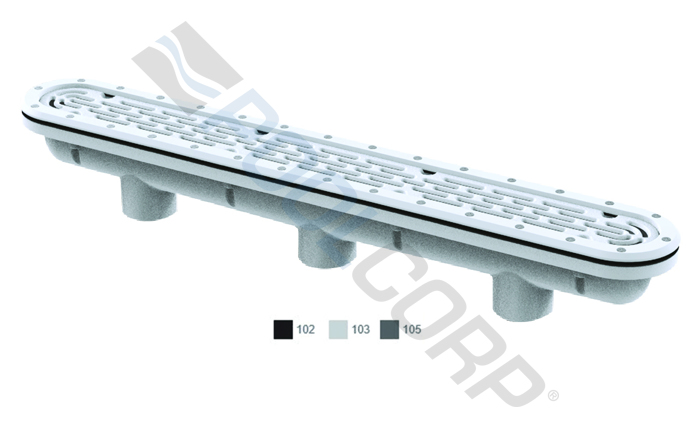

AquaStar Pool Products 32CDFLV103 32" Light Gray Channel Drain with 3-Port Sump for Vinyl

AquaStar Pool Products

32" Light Gray Channel Drain with 3-Port Sump for Vinyl

Product #:API-25-1709

Mfg. Part #:32CDFLV103

Description

This 32" Channel Drain Flat Grate Suction Outlet Cover and 3-Port Sump is for use with vinyl. Its permanently attached gasket reduces gasket alignment problems. It meets or exceeds ANSI/APSP 16-2011 and NSF/ANSI 50-2009a national standards and ASTM G154 UV testing.

Documents

Feature Bullets

  • Light gray finish
  • Two drains in one
  • Stainless steel screws
  • 316 GPM at 3.9 fps floor flow rating
  • 208 GPM at 2.6 fps wall flow rating
  • Must use transitional glue when attaching to PVC pipe
  • Manufactured from superior UV-resistant engineered polymers
  • Replace drain cover every five years from the date of installation

    • Branch Availability

    content loaded

    Specifications

    • BrandAquaStar Pool Products
    • ApplicationInground, Pool
    • Shipping Dimensions36 x 6 x 6 inch
    • ColorLight Gray
    • Connection Size 12.5 inch
    • Connection Size 1 FITSocket
    • Connection Size 22 inch
    • Connection Size 2 FITSocket
    • Cover Open Area25.9 square inch
    • Each Product Weight7 pound
    • Floor Flow Rate Measure A316 gal/min
    • Includes32 Inch Three Port Manufactured Vinyl Sump Bucket with Gasket, 32 Inch Channel Drain Vinyl Clamping Ring with Gasket, 32 Inch Flat Channel Drain Cover, (2) 2 Inch NPT Plug, (30) #10 x 1 Inch Flat Head Phillips Type A 316 Stainless Steel Screw, (8) #10 x 1
    • MaterialABS or acrylonitrile butadiene styrene, Polymer
    • Minimum Sell Quantity1
    • Number of Drain Ports3
    • Pallet Quantity1
    • Pool or Spa TypeVinyl
    • Standards ApprovalsNSF Certified, ANSI Certified, APSP Certified, ASTM Certified
    • Wall Flow Rate Measure A208 gal/min
    • Connection Size 32 inch
    • Connection Size 3 FITFPT
    • Floor Flow Rate Measure A at3.9 ft/s
    • Wall Flow Rate Measure A at2.6 ft/s
    • UPC Code0883612025902
