AquaStar Pool Products

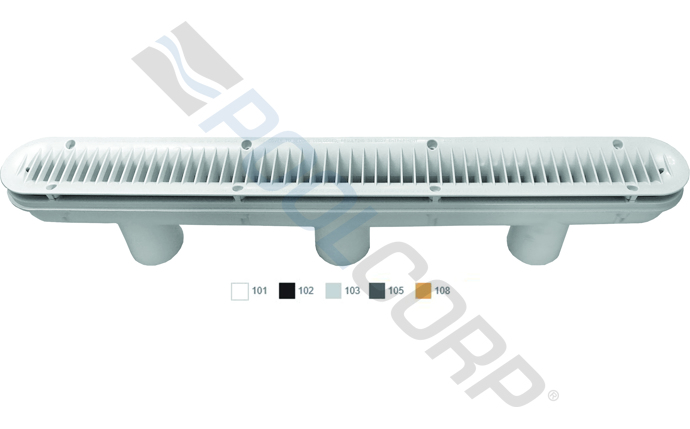

32" White Channel Drain Debris Catcher Suction Outlet Cover with 3-Port Sump
Product #:API-25-1859
Mfg. Part #:32CDLT101
AquaStar Pool Products 32CDLT101 32" White Channel Drain Debris Catcher Suction Outlet Cover with 3-Port Sump
AquaStar Pool Products
32" White Channel Drain Debris Catcher Suction Outlet Cover with 3-Port Sump
Product #:API-25-1859
Mfg. Part #:32CDLT101
Description
This Channel Drain Debris Catcher Suction Outlet Cover with 3-Port Sump has a uniquely engineered concave and convex design that allows for superior debris catching while exceeding UL articulate probe finger and knuckle ASME A112 2008 tests. A disposable plastic pre-gunite and plaster insert keeps debris out and retains sump shape during construction. All components meet or exceed ANSI/APSP 16-2011 and NSF/ANSI 50-2009a national standards and ASTM G154 UV testing exposure.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandAquaStar Pool Products
- ApplicationInground, Pool
- Shipping Dimensions33 x 5 x 7 inch
- ColorWhite
- Connection Size 12.5 inch
- Connection Size 1 FITSocket
- Connection Size 22 inch
- Connection Size 2 FITSocket
- Cover Open Area50.1 square inch
- Each Product Weight6.25 pound
- Floor Flow Rate Measure A196 gal/min
- For Use WithFor Sump (Concrete Pools)
- Includes32 Inch Three Port Manufactured Sump Bucket, 32 Inch Leaf Trap Insert, 32 Inch Leaf Trap Cover, (2) 2 Inch NPT Plug, 32 Inch Plaster Shield Channel Drain, (8) #10 x 1-1/4 Inch Pan Head Phillips 316 Stainless Steel Screw, (8) #10 x 3/4 Inch Flat Head Phill
- Master Carton Quantity4
- MaterialPolymer
- Minimum Sell Quantity1
- Number of Drain Ports3
- Pallet Quantity1
- Pool or Spa TypeConcrete
- Standards ApprovalsNSF Certified, UL Certified, ANSI Certified, APSP Certified, ASME Certified, ASTM Certified
- Wall Flow Rate Measure A192 gal/min
- Connection Size 32 inch
- Connection Size 3 FITFPT
- Floor Flow Rate Measure A at1.3 ft/s
- For Use WithFor Sump (Concrete Pools)
- Wall Flow Rate Measure A at1.2 ft/s
- UPC Code0883612025568
