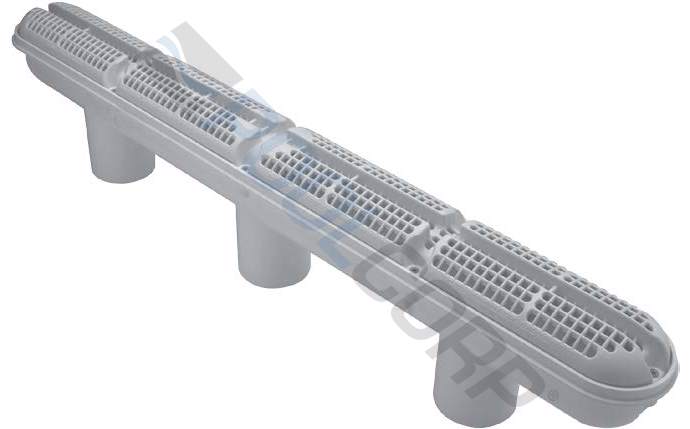

32" White Ultra Strip Channel Drain Field Built Sump

Product #:WWP-25-8754

Mfg. Part #:640-1330 V

  • This product is obsolete.
  • The superceded product was not found.

Waterway Plastics 640-1330 32" White Ultra Strip Channel Drain Field Built Sump

Waterway

32" White Ultra Strip Channel Drain Field Built Sump

Product #:WWP-25-8754

Mfg. Part #:640-1330 V

Description

Waterway Plastics 640-1330 is compliant to the latest Consumer Safety Product Commission requirements (CPSC). Listed and Certified and Tested in strict accordance with the requirements of ASME A112.19.8-2007 and ASME A112.19.8a-2008

Documents

Feature Bullets

  • Total Open Area: 37.7 sq. in.
  • Frame Size: 32" Channel
  • Floor Flow Rate (One Port Center): 288 GPM @ 2.47 ft/sec
  • Floor Flow Rate (Two Ports): 352 GPM @ 3.02 ft/sec Wall Flow Rate (One Port Center): 232 GPM @ 1.99 ft/sec
  • Wall Flow Rate (Two Ports): 304 GPM @ 2.61 ft/sec
  • Flow Rate @ 1.5 ft/sec: 175 GPM
  • Ports - 2" S or 2 1/2" SPG
  • 2 - 2" MPT Plugs Included

    • Branch Availability

    content loaded

    Specifications

    • BrandWaterway
    • ApplicationPool
    • Shipping Dimensions8 x 8 x 33.38 inch
    • ColorWhite
    • Commercial, Residential, or ProfessionalProfessional, Residential
    • Cover Open Area37.7 square inch
    • Cover ShapeOval
    • Cover StyleUltra Strip
    • Each Product Weight4.17 pound
    • FinishTextured
    • Floor Flow Rate Measure A288 gal/min
    • Floor Flow Rate Measure B352 gal/min
    • Floor Flow Rate Measure B at3.02 ft/s
    • Frame Size32 inch
    • Master Carton Quantity1
    • MaterialPVC or Polyvinyl Chloride
    • Pallet Quantity1
    • Pool or Spa TypeConcrete
    • Wall Flow Rate Measure A232 gal/min
    • Floor Flow Rate Measure A at2.47 ft/s
    • Wall Flow Rate Measure A at1.99 ft/s
    • Wall Flow Rate Measure B304 gal/min
    • Wall Flow Rate Measure B at2.61 ft/s
    • UPC Code806105403483

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

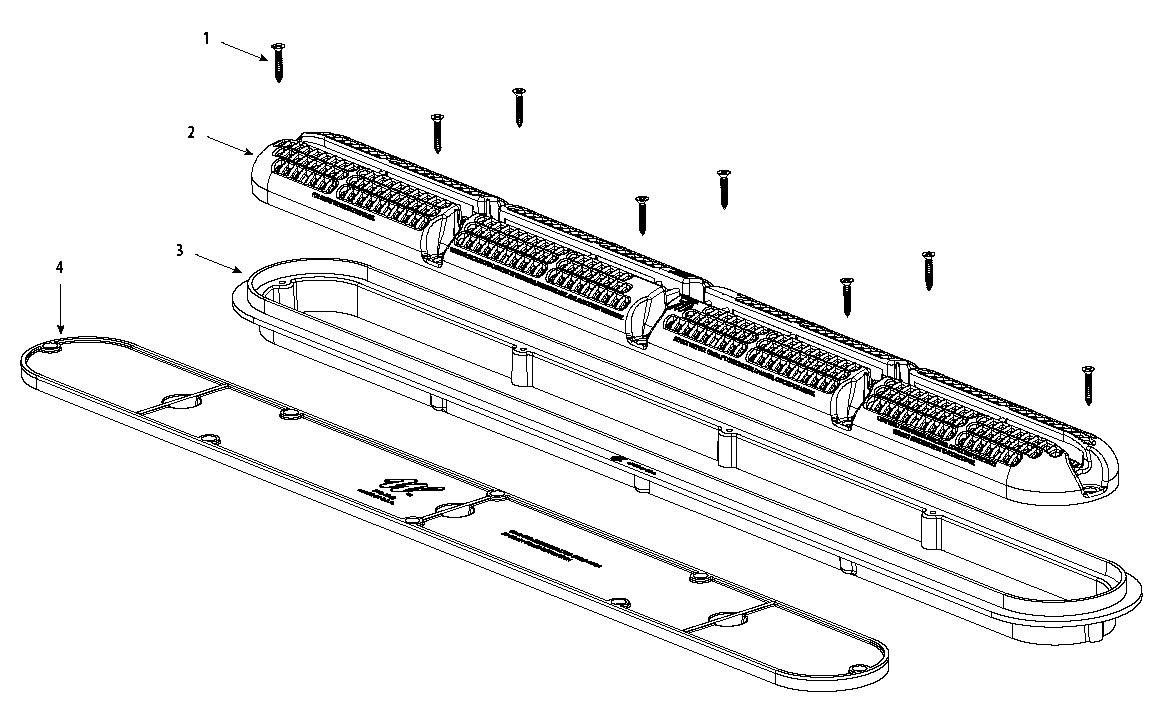

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    642-1310V
    32 Grate White
    Product #:
    Mfg #: 642-1310V
    2
    2
    642-1311V
    32 Grate Black
    Product #:
    Mfg #: 642-1311V
    3
    3
    642-1317V
    32 Grate Gray
    Product #:
    Mfg #: 642-1317V
    4
    4
    642-1319-BEIV
    32 Grate Beige (TAN)
    Product #:
    Mfg #: 642-1319-BEIV
    5
    5
    642-1319-DKGV
    32 Grate Dark Gray
    Product #:
    Mfg #: 642-1319-DKGV
    6
    6
    715-9910
    WWP-56-1231
    2" White NPT Plug
    Product #: WWP-56-1231
    Mfg #: 715-9910
    7
    7
    642-1300
    32 3-Port Vinyl Liner Sump
    Product #:
    Mfg #: 642-1300
    8
    8
    715-1360
    32 Plaster Cover/Plug
    Product #:
    Mfg #: 715-1360
