AquaStar Pool Products

32" White Vinyl Channel Drain Pinhole Suction Cover & 3-Port Sump

Product #:API-25-3224

Mfg. Part #:32CDPHV101

  • This product is obsolete.
  • The superceded product was not found.

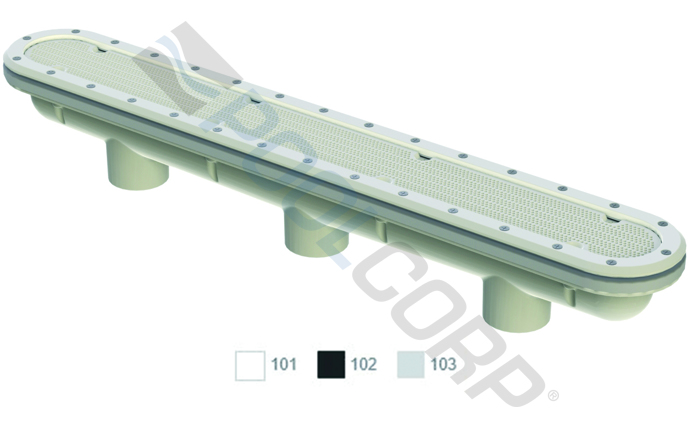

AquaStar Pool Products 32CDPHV101 32" White Vinyl Channel Drain Pinhole Suction Cover & 3-Port Sump

AquaStar Pool Products

32" White Vinyl Channel Drain Pinhole Suction Cover & 3-Port Sump

Product #:API-25-3224

Mfg. Part #:32CDPHV101

Description

This 32" White Vinyl Channel Drain Pinhole Suction Cover and 3-Port Sump acts as a safety measure, preventing entrapment. It is for single or multiple drain use. The drain cover should be replaced every five years from the date of installation. All components meet or exceeds ANSI/APSP 16-2011 and NSF/ANSI 50-2009a national standards and ASTM G154 UV testing.

Branch Availability

content loaded

Specifications

  • BrandAquaStar Pool Products
  • ApplicationPool
  • Shipping Dimensions33 x 5 x 7 inch
  • ChannelNon-Preferred
  • ColorWhite
  • Commercial, Residential, or ProfessionalCommercial, Residential
  • Connection Size 12.5 inch
  • Connection Size 1 FITSocket
  • Connection Size 22 inch
  • Connection Size 2 FITSocket
  • Cover Open Area27.9 square inch
  • Each Product Weight7 pound
  • FinishStandard
  • Floor Flow Rate Measure A268 gal/min
  • For Use WithFor Vinyl
  • Includes32 Inch Three Port Manufactured Vinyl Sump Bucket, 32 Inch Channel Drain Vinyl Clamping Ring with Gasket, 32 Inch Channel Drain Vinyl Clamping Gasket, 32 Inch Pinhole Channel Drain Anti Entrapment Suction Outlet Cover, (2) 2 Inch NPT Plug, (8) #10 x 1-1/4
  • MaterialPolymer
  • Minimum Sell Quantity1
  • Number of Drain Ports3
  • Pool or Spa TypeVinyl
  • Standards ApprovalsNSF Certified, ANSI Certified, APSP Certified, ASTM Certified
  • Wall Flow Rate Measure A172 gal/min
  • Connection Size 32 inch
  • Connection Size 3 FITFPT
  • Floor Flow Rate Measure A at3.1 ft/s
  • For Use WithFor Vinyl
  • Wall Flow Rate Measure A at2 ft/s
  • UPC Code0883612069692
