Hayward
34" HCF Series Commercial Fiberglass Sand Filter with 2" Bulkhead
Product #:CHT-05-1014
Mfg. Part #:HCF234C

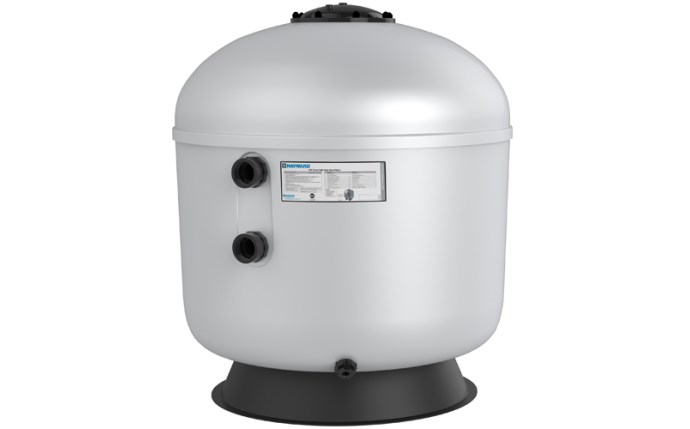

Hayward® HCF234C 34" HCF Series Commercial Fiberglass Sand Filter with 2" Bulkhead
Hayward
34" HCF Series Commercial Fiberglass Sand Filter with 2" Bulkhead
Product #:CHT-05-1014
Mfg. Part #:HCF234C
Description
Hayward® HCF234C 34" HCF Series Commercial Fiberglass Sand Filter with 2" Bulkhead. The HCF Series Filters feature an improved internal and external design that enhances performance and endurance. The filters distribute water more evenly with a multi-diffuser configuration, increasing filter cycles, effectiveness, and longevity of the filter. Installation and maintenance are easier than ever before. A transparent manway simplifies operation and the UV-protected and infusion molded fiberglass shell reduces corrosion and shields the unit from the elements, such as blooming and biofilm build up.
Branch Availability
content loaded
Specifications
- BrandHayward
- Commercial, Residential, or ProfessionalCommercial
- Shipping Dimensions37 x 37 x 45 inch
- Each Product Weight134.44 pound
- Filtration Area6.31 square feet
- Minimum Sell Quantity1
- Product Depth37 inch
- Product Height44.5 inch
- Product Weight134.4 pound
- Product Width37 meter
- Sand Required750 pound
- Side Clearance4 inch
- Standards ApprovalsNSF Certified, cULus Certified
- Tank MaterialFiberglass
- Vertical Clearance18 inch
- Normal Start Up Pressure50 pounds per square inch
- UPC Code0610377404099

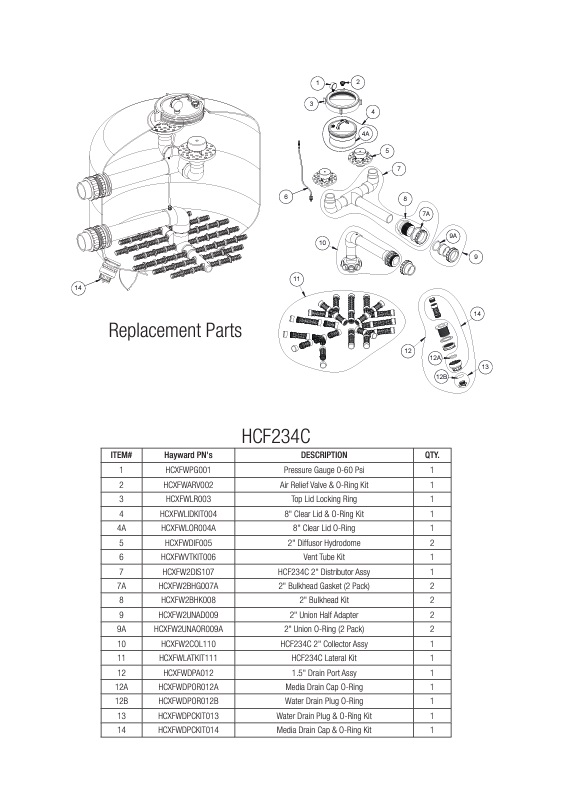

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
HCXFWPG001
Pressure Gauge 0-60 PSI
Product #:
Mfg #: HCXFWPG001
Notes:
1 req.2
2
HCXFWARV002
Air Relief Valve & O-Ring Kit
Product #:
Mfg #: HCXFWARV002
Notes:
1 req.3
3
HCXFWLR003
Top Lid Locking Ring
Product #:
Mfg #: HCXFWLR003
Notes:
1 req.4
4
HCXFWLIDKIT004
8" Clear Lid & O-Ring Kit
Product #:
Mfg #: HCXFWLIDKIT004
Notes:
1 req.4A
4A
HCXFWLOR004A
8" Clear Lid O-Ring
Product #:
Mfg #: HCXFWLOR004A
Notes:
1 req.5
5
HCXFWDIF005
2" Diffusor Hydrodome
Product #:
Mfg #: HCXFWDIF005
Notes:
2 req.6
6
HCXFWVTKIT006
Vent Tube Kit
Product #:
Mfg #: HCXFWVTKIT006
Notes:
1 req.7
7
HCXFW2DIS007
HCF234C 2" Distributor Assy
Product #:
Mfg #: HCXFW2DIS007
Notes:
1 req.7A
7A
HCXFW2BHG107A
2" Bulkhead Gasket (2 Pack)
Product #:
Mfg #: HCXFW2BHG107A
Notes:
2 req.8
8
HCXFW2BHK008
2" Bulkhead Kit
Product #:
Mfg #: HCXFW2BHK008
Notes:
2 req.9
9
HCXFW2UNAD009
2" Union Half Adapter
Product #:
Mfg #: HCXFW2UNAD009
Notes:
2 req.9A
9A
HCXFW2UNAOR009A
2" Union O-Ring (2-Pack)
Product #:
Mfg #: HCXFW2UNAOR009A
Notes:
2 req.10
10
HCXFW2COL110
HCF234C 2" Collector Assy
Product #:
Mfg #: HCXFW2COL110
Notes:
1 req.11
11
HCXFWLATKIT111
HCF234C Lateral Kit
Product #:
Mfg #: HCXFWLATKIT111
Notes:
1 req.12
12
HCXFWDPA012
1.5" Drain Port Assy
Product #:
Mfg #: HCXFWDPA012
Notes:
1 req.Wholegoods
There are no wholegoods available.
