Hayward

34" HCF Series Gel Coated Commercial Sand Filter

Product #:CHT-05-1006

Mfg. Part #:HCF343T

  • This product is obsolete.
  • The superceded product was not found.

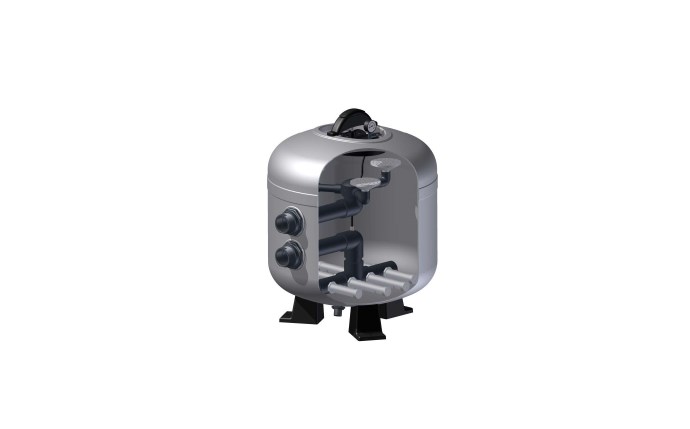

Hayward HCF343T HCF Series 34" Commercial Sand Filter 3" Port

Hayward

34" HCF Series Gel Coated Commercial Sand Filter

Product #:CHT-05-1006

Mfg. Part #:HCF343T

Description

Hayward HCF343T HCF Series 34" Commercial Sand Filter 3" Port . Hayward HCF series of filters have been engineered to fit todays demanding applications. Overhead multi-diffuser distribution is combined with a horizontal lateral grid array that improves water distribution over the filter bed resulting in linger filter cycle time, improved filtration, and a more efficient backwash cycle. The twist-lock, tool-free rapid open/close lid mechanism with positive O-Ring seal simplifies operation and ensures long-term durability and reliability.

Branch Availability

content loaded

Specifications

  • BrandHayward
  • ApplicationPool, Spa
  • Shipping Dimensions38 x 38.3 x 54.3 inch
  • Backwash Flow Rate126 gal/min
  • Backwash Min Flow Rate126 gal/min
  • ChannelNone
  • ColorGray
  • Commercial, Residential, or ProfessionalCommercial
  • Each Product Weight196 pound
  • Filtration Area6.3 square feet
  • Filtration Rate20 GPM/ft2
  • Inlet/Outlet Sizes2 inch
  • Inlet/Outlet Sizes FITThreaded
  • Master Carton Quantity1
  • Maximum Working Pressure50 pounds per square inch
  • Minimum Sell Quantity1
  • Pallet Quantity1
  • Side Clearance34 inch
  • Standards ApprovalsANSI Standard 50 Certified
  • Tank ColorGray
  • Vertical Clearance47.5 inch
  • UPC Code0610377194662

WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

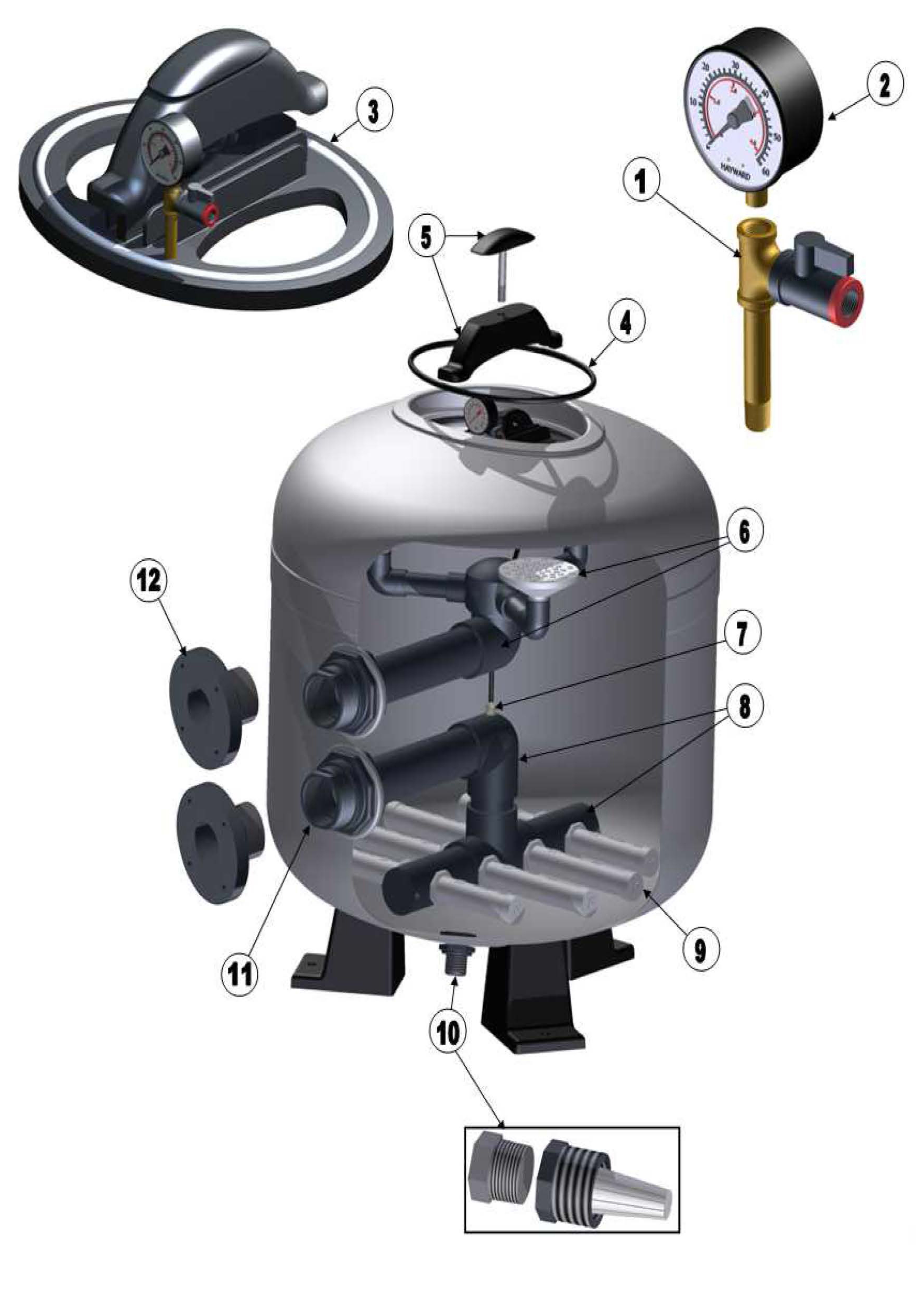

Parts & Schematics

content loaded
Mfg #
Product #
Description
Notes
1
1
HCXFARV1000
HAY-051-9848
Product #: HAY-051-9848
Mfg #: HCXFARV1000
2
2
HCXFPGB1000
HAY-051-9821
Product #: HAY-051-9821
Mfg #: HCXFPGB1000
3
3
HCXFMWC1000
HAY-051-9873
HCXFMWC1000 MANWAY COVER ASSY
Product #: HAY-051-9873
Mfg #: HCXFMWC1000
4
4
HCXFMCG1000
HAY-051-9842
Product #: HAY-051-9842
Mfg #: HCXFMCG1000
5
5
HCXFMWY1000
Manway Cover Yoke & Knob Assy
Product #:
Mfg #: HCXFMWY1000
6
6
HCXFDMA1002
HAY-051-9926
HCXFDMA1002 DISTRIBUTION MANIFOLD ASSY
Product #: HAY-051-9926
Mfg #: HCXFDMA1002
7
7
HCXFARA1001
Internal Air Relief Assembly
Product #:
Mfg #: HCXFARA1001
8
8
HCXFCMA1002
HAY-051-9915
HCXFCMA1002 COLLECTOR MANIFOLD ASSY
Product #: HAY-051-9915
Mfg #: HCXFCMA1002
9
9
HCXFCLK1001
HAY-051-1111
HCXFCLK1001 LATERAL KIT
Product #: HAY-051-1111
Mfg #: HCXFCLK1001
10
10
HCXFDFA1000
HAY-051-9877
HCXFDFA1000 DRAIN FITTING ASSY
Product #: HAY-051-9877
Mfg #: HCXFDFA1000
11
11
HCXFBFA1001
HAY-051-9872
Product #: HAY-051-9872
Mfg #: HCXFBFA1001
