Hayward

36" HCF Series Commercial Fiberglass Sand Filter with 2.5" Bulkhead

Product #:HAY-05-9961

Mfg. Part #:HCF236C

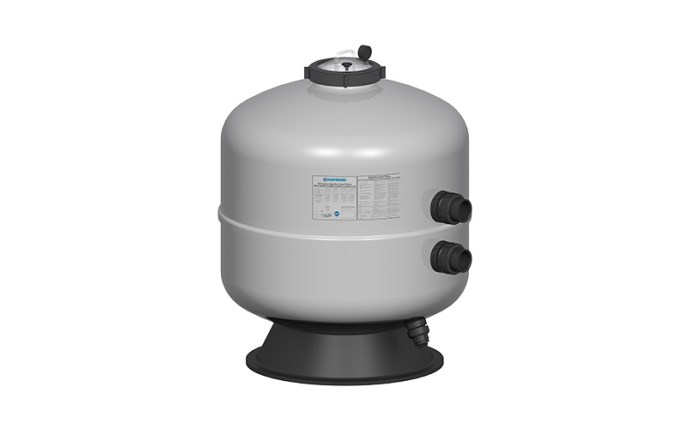

Hayward® HCF236C 36" HCF Series Commercial Fiberglass Sand Filter with 2.5" Bulkhead

Hayward

36" HCF Series Commercial Fiberglass Sand Filter with 2.5" Bulkhead

Product #:HAY-05-9961

Mfg. Part #:HCF236C

Description

Hayward® HCF236C 36" HCF Series Commercial Fiberglass Sand Filter with 2.5" Bulkhead. The Hayward 36" HCF Series Commercial FG Sand Filter with 2.5" Bulkhead sets a new standard for performance and longevity in the recreational water market. Designed to improve filtration and lengthen filter cycles, it's made with a UV-protected gel coat that shields the filter against the elements, preventing fiberglass blooming. Its secure lid mechanism enables easy inspection, and with material like proprietary resins and fiberglass, it's also virtually corrosion-proof.

Branch Availability

content loaded

Specifications

  • BrandHayward
  • Commercial, Residential, or ProfessionalCommercial
  • Shipping Dimensions37 x 39 x 46 inch
  • Each Product Weight167.5 pound
  • Filtration Area7.05 square feet
  • MaterialFiberglass
  • Maximum Working Pressure50 pounds per square inch
  • Minimum Sell Quantity1
  • Product Depth37.4 inch
  • Product Height47.6 inch
  • Product Weight167.5 pound
  • Product Width37.4 inch
  • Sand Required900 pound
  • Side Clearance4 inch
  • Tank ColorGray
  • Tank Diameter37.4 inch
  • Tank MaterialFiberglass
  • Vertical Clearance18 inch
  • UPC Code0610377404082

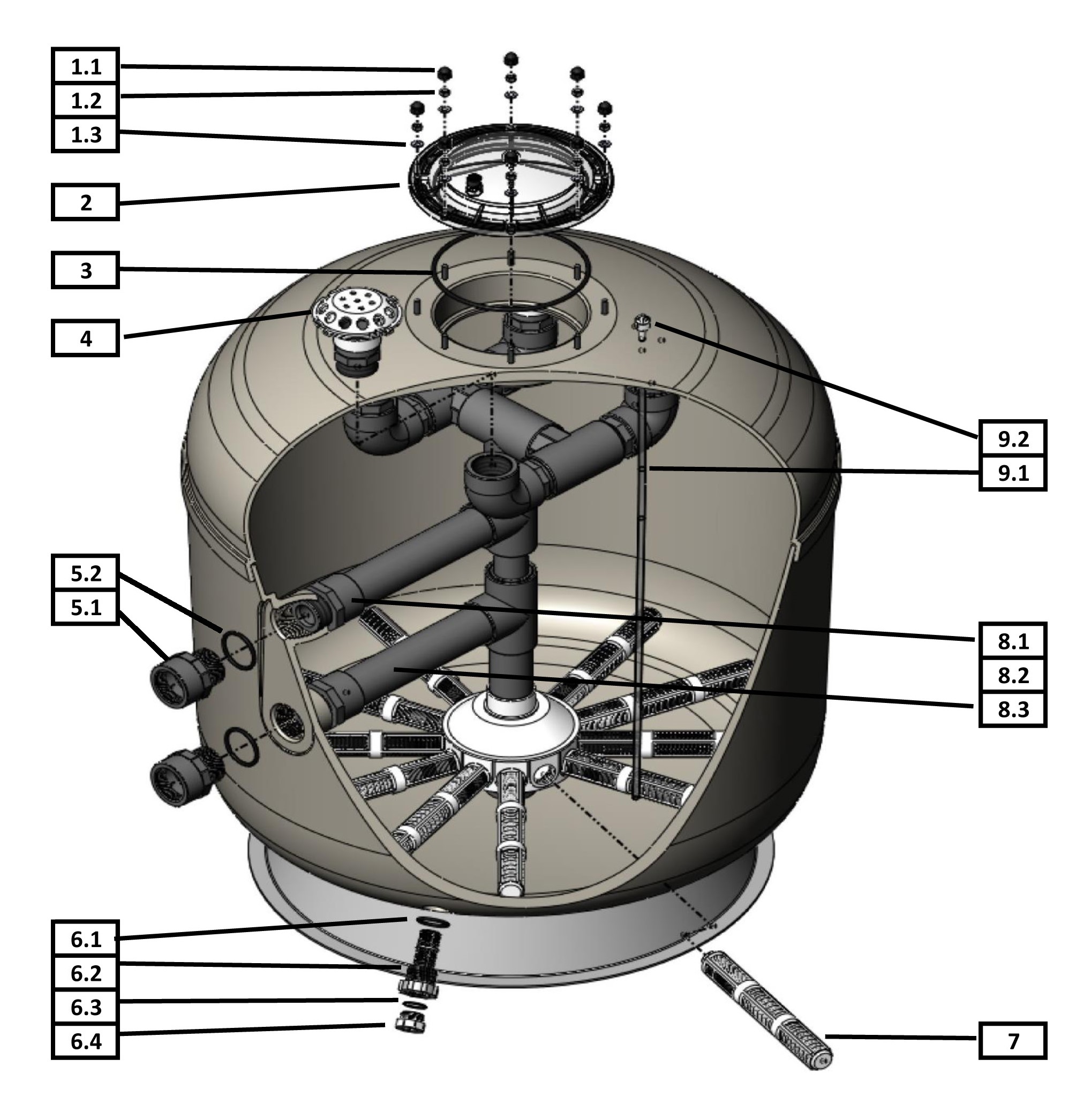

Parts & Schematics

content loaded
Mfg #
Product #
Description
Notes
1
1
HCXFMCH1000
HAY-051-0016
Product #: HAY-051-0016
Mfg #: HCXFMCH1000
Notes:
CONTAINS 8 SETS PER KIT
1.1
1.1
HCXFMCH1000
NUT COVER
Product #:
Mfg #: HCXFMCH1000
1.2
1.2
HCXFMCH1000
Nut
Product #:
Mfg #: HCXFMCH1000
1.3
1.3
HCXFMCH1000
HAY-051-0016
Product #: HAY-051-0016
Mfg #: HCXFMCH1000
2
2
HCXFMCL1000
HAY-051-0017
POLYCARBONATE MANWAY COVER
Product #: HAY-051-0017
Mfg #: HCXFMCL1000
3
3
HCXFMCG1000
MANWAY COVER O-RING
Product #:
Mfg #: HCXFMCG1000
4
4
HCXFDIF1000
HAY-051-0019
Product #: HAY-051-0019
Mfg #: HCXFDIF1000
5
5
HCXFBHE1000
HAY-051-0020
Product #: HAY-051-0020
Mfg #: HCXFBHE1000
5.1
5.1
HCXFBHE1000
BULKHEAD
Product #:
Mfg #: HCXFBHE1000
5.2
5.2
HCXFBHE1000
HAY-051-0020
Product #: HAY-051-0020
Mfg #: HCXFBHE1000
6
6
HCXFDK1000
HAY-051-0021
Product #: HAY-051-0021
Mfg #: HCXFDK1000
6.1
6.1
HCXFDK1000
DRAIN BODY O-RING
Product #:
Mfg #: HCXFDK1000
6.2
6.2
HCXFDK1000
DRAIN BODY
Product #:
Mfg #: HCXFDK1000
6.3
6.3
HCXFDK1000
CAP O-RING
Product #:
Mfg #: HCXFDK1000
6.4
6.4
HCXFDK1000
HAY-051-0021
Product #: HAY-051-0021
Mfg #: HCXFDK1000
