Hayward
36" HCF Series Commercial Fiberglass Sand Filter with 3" Bulkhead
Product #:HAY-05-9962
Mfg. Part #:HCF336C

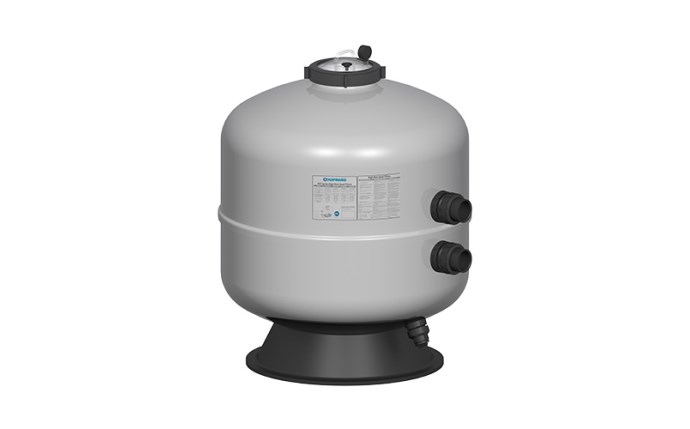

Hayward® HCF336C 36" HCF Series Commercial Fiberglass Sand Filter with 3" Bulkhead
Hayward
36" HCF Series Commercial Fiberglass Sand Filter with 3" Bulkhead
Product #:HAY-05-9962
Mfg. Part #:HCF336C
Description
Hayward® HCF336C 36" HCF Series Commercial Fiberglass Sand Filter with 3" Bulkhead. The Hayward 36" HCF Series Commercial FG Sand Filter with 3" Bulkhead sets a new standard for performance and longevity in the recreational water market. Designed to improve filtration and lengthen filter cycles, it's made with a UV-protected gel coat that shields the filter against the elements, preventing fiberglass blooming. Its secure lid mechanism enables easy inspection, and with material like proprietary resins and fiberglass, it's also virtually corrosion-proof.
Branch Availability
content loaded
Specifications
- BrandHayward
- Commercial, Residential, or ProfessionalCommercial
- Shipping Dimensions37 x 39 x 46 inch
- Each Product Weight180.73 pound
- Filtration Area7.05 square feet
- MaterialFiberglass, Resin
- Maximum Working Pressure50 pounds per square inch
- Minimum Sell Quantity1
- Product Depth37.4
- Product Height47.6 inch
- Product Weight180.7 pound
- Product Width37.4 inch
- Sand Required900 pound
- Side Clearance4 inch
- Tank ColorGray
- Tank MaterialFiberglass, Resin
- Vertical Clearance18 inch
- UPC Code0610377404075

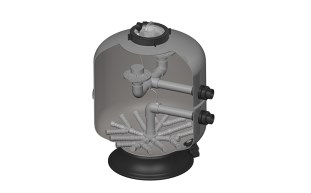

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
HCXFWPG001
Pressure Gauge 0-60 PSI
Product #:
Mfg #: HCXFWPG001
Notes:
1 req.2
2
HCXFWARV002
Air Relief Valve & O-Ring Kit
Product #:
Mfg #: HCXFWARV002
Notes:
1 req.3
3
HCXFWLR003
Top Lid Locking Ring
Product #:
Mfg #: HCXFWLR003
Notes:
1 req.4
4
HCXFWLIDKIT004
8" Clear Lid & O-Ring Kit
Product #:
Mfg #: HCXFWLIDKIT004
Notes:
1 req.4A
4A
HCXFWLOR004A
8" Clear Lid O-Ring
Product #:
Mfg #: HCXFWLOR004A
Notes:
1 req.5
5
HCXFWDIF005
2" Diffusor Hydrodome
Product #:
Mfg #: HCXFWDIF005
Notes:
2 req.6
6
HCXFWVTKIT006
Vent Tube Kit
Product #:
Mfg #: HCXFWVTKIT006
Notes:
1 req.7
7
HCXFW2DIS307
HCF336C 3" Distributor Assy
Product #:
Mfg #: HCXFW2DIS307
Notes:
1 req.7A
7A
HCXFW2BHG307A
3" Bulkhead Gasket (2 Pack)
Product #:
Mfg #: HCXFW2BHG307A
Notes:
2 req.8
8
HCXFW2BHK308
3" Bulkhead Kit
Product #:
Mfg #: HCXFW2BHK308
Notes:
2 req.9
9
HCXFW2UNAD309
3" Union Half Adapter
Product #:
Mfg #: HCXFW2UNAD309
Notes:
2 req.9A
9A
HCXFW2UNAOR309A
3" Union O-Ring (2-Pack)
Product #:
Mfg #: HCXFW2UNAOR309A
Notes:
2 req.10
10
HCXFW2COL310
HCF336C 3" Collector Assy
Product #:
Mfg #: HCXFW2COL310
Notes:
1 req.11
11
HCXFWLATKIT311
HCF336C Lateral Kit
Product #:
Mfg #: HCXFWLATKIT311
Notes:
1 req.12
12
HCXFWDPA012
1.5" Drain Port Assy
Product #:
Mfg #: HCXFWDPA012
Notes:
1 req.Wholegoods
There are no wholegoods available.
