Hayward
36" HCF Series Gel Coated Commercial Sand Filter 3" Flanged
Product #:CHT-05-1002
Mfg. Part #:HCF363

- This product is obsolete.
- The superceded product was not found.

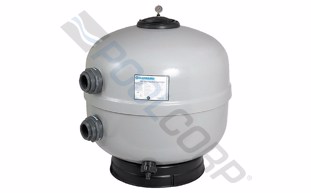

Hayward HCF363 HCF Series 36" Gel Coated Commercial Sand Filter 3" Flanged
Hayward
36" HCF Series Gel Coated Commercial Sand Filter 3" Flanged
Product #:CHT-05-1002
Mfg. Part #:HCF363
Description

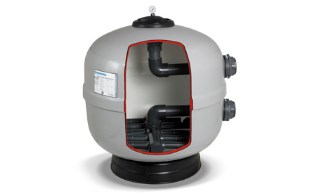

Hayward HCF363 HCF Series 36" Gel Coated Commercial Sand Filter 3" Flanged. Hayward HCF series of filters have been engineered to fit todays demanding applications. Overhead multi-diffuser distribution is combined with a horizontal lateral grid array that improves water distribution over the filter bed resulting in linger filter cycle time, improved filtration, and a more efficient backwash cycle. The twist-lock, tool-free rapid open/close lid mechanism with positive O-Ring seal simplifies operation and ensures long-term durability and reliability.
Documents
Branch Availability
content loaded
Specifications
- BrandHayward
- ApplicationPool, Spa
- Shipping Dimensions38 x 38 x 40 inch
- Backwash Flow Rate136 gal/min
- Backwash Min Flow Rate136 gal/min
- ChannelNone
- ColorGray
- Commercial, Residential, or ProfessionalCommercial
- Each Product Weight120 pound
- Filtration Area6.78 square feet
- Filtration Rate20 GPM/ft2
- Inlet/Outlet Sizes3 inch
- Master Carton Quantity1
- Maximum Working Pressure50 pounds per square inch
- Minimum Sell Quantity1
- Pallet Quantity1
- Product Weight192 pound
- Side Clearance36 inch
- Standards ApprovalsANSI Standard 50 Certified
- Tank ColorGray
- Vertical Clearance41 inch
- UPC Code0610377131889
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

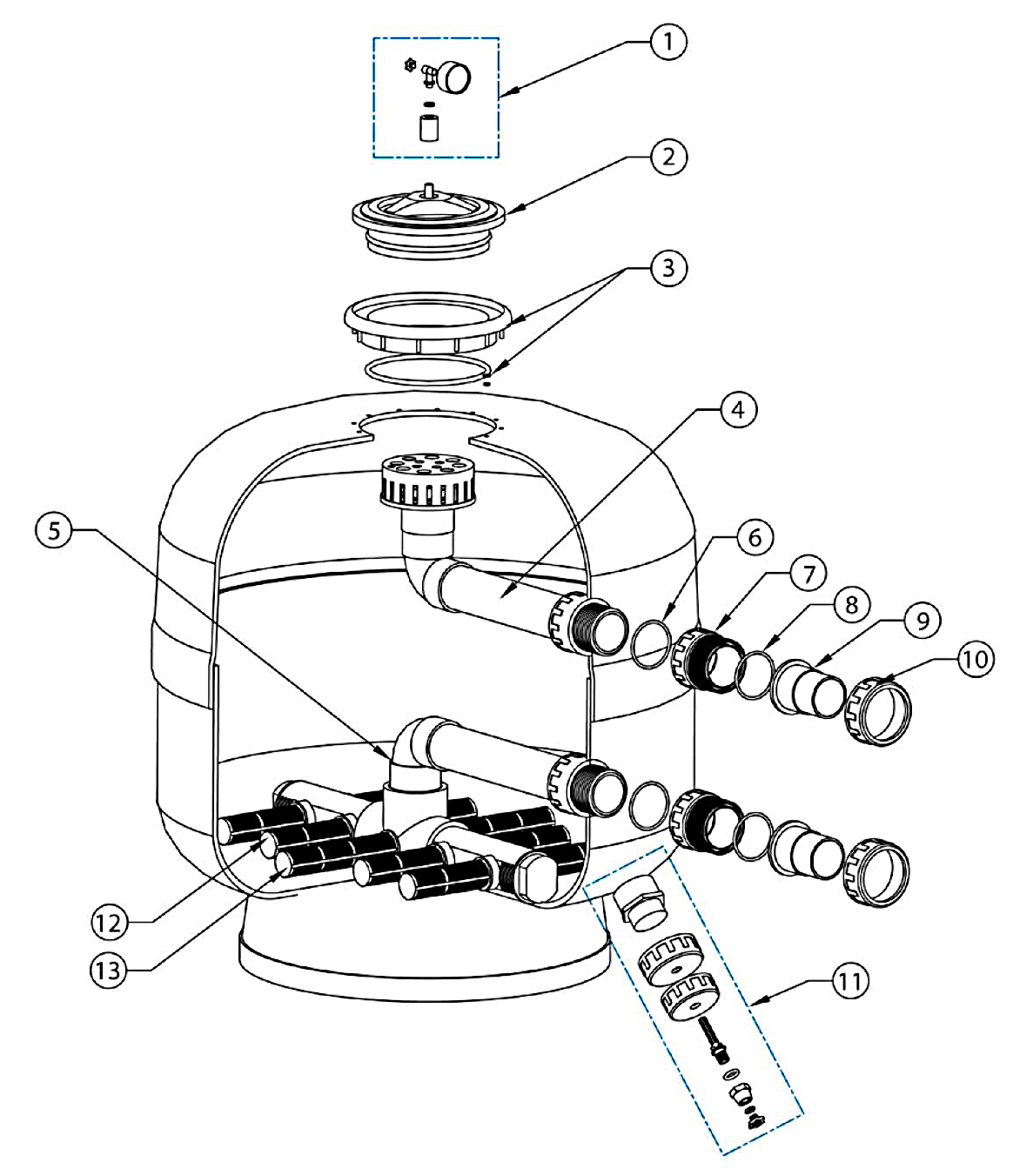

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
HCXF2780001
CHT-051-0001
HCXF2780001 HCF SAND FILTER GAUGE ASSY
Product #: CHT-051-0001
Mfg #: HCXF2780001
2
2
HCXF2780002
HAY-051-0002
HCXF2780002 HCF SERIES FILTER LID
Product #: HAY-051-0002
Mfg #: HCXF2780002
3
3
HCXF2780003
HAY-051-9883
HCXF2780003 NECK ASSY W/ HARDWARE
Product #: HAY-051-9883
Mfg #: HCXF2780003
7
7
HCXF2780004
HAY-051-9867
HCXF2780004 DRAIN ASSY
Product #: HAY-051-9867
Mfg #: HCXF2780004
4
4
HCXF2780243
HAY-051-9886
HCXF2780243 HCF302 SINGLE DIFFUSER ASSY
Product #: HAY-051-9886
Mfg #: HCXF2780243
5
5
HCXF2780244
HAY-051-9895
HCXF2780244 30" HCF302 LATERAL MANIFOLD
Product #: HAY-051-9895
Mfg #: HCXF2780244
4
4
HCXF1645143
HAY-051-9920
HCXF1645143 HCF363 TRIPLE DIFFUSER ASSY
Product #: HAY-051-9920
Mfg #: HCXF1645143
8,9
8,9
HCXF1645144
HAY-051-9900
HCXF1645144 36" HCF363 LATERAL MANIFOLD
Product #: HAY-051-9900
Mfg #: HCXF1645144
8,9
8,9
HCXF27802LAT
HAY-051-9851
HCXF27802LAT 30" HCF302 LATERAL KIT
Product #: HAY-051-9851
Mfg #: HCXF27802LAT
8,9
8,9
HCXF27857LAT
HAY-051-9855
HCXF27857LAT 36" HCF362 LATERAL KIT
Product #: HAY-051-9855
Mfg #: HCXF27857LAT
8,9
8,9
HCXF16451LAT
HAY-051-9854
HCXF16451LAT 36" HCF363 LATERAL KIT
Product #: HAY-051-9854
Mfg #: HCXF16451LAT
4
4
HCXF2785743
HAY-051-9917
HCXF2785743 HCF362 TRIPLE DIFFUSER ASSY
Product #: HAY-051-9917
Mfg #: HCXF2785743
5
5
HCXF2785744
HAY-051-9898
HCXF2785744 36" HCF362 LATERAL MANIFOLD
Product #: HAY-051-9898
Mfg #: HCXF2785744
