Hayward
36" HCF Series Gel Coated Commercial Sand Filter 3" Flanged
Product #:CHT-05-1010
Mfg. Part #:HCF363F

- This product is obsolete.
- The superceded product was not found.

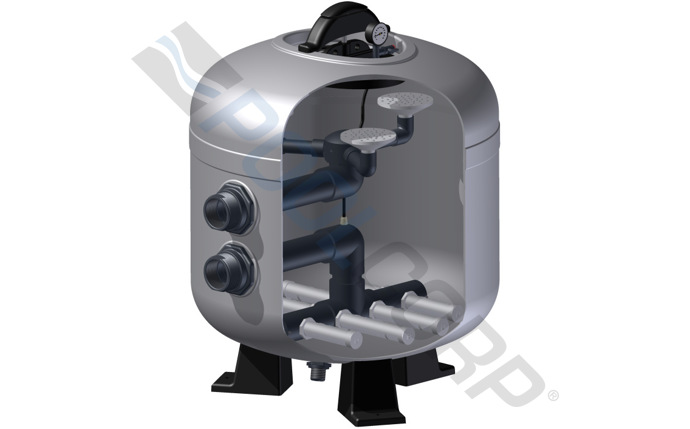

Hayward HCF363F HCF Series 36" Commercial Sand Filter 3" Flanged
Hayward
36" HCF Series Gel Coated Commercial Sand Filter 3" Flanged
Product #:CHT-05-1010
Mfg. Part #:HCF363F
Description
Hayward HCF363F HCF Series 36" Commercial Sand Filter 3" Flanged. Hayward HCF series of filters have been engineered to fit todays demanding applications. Overhead multi-diffuser distribution is combined with a horizontal lateral grid array that improves water distribution over the filter bed resulting in linger filter cycle time, improved filtration, and a more efficient backwash cycle. The twist-lock, tool-free rapid open/close lid mechanism with positive O-Ring seal simplifies operation and ensures long-term durability and reliability.
Branch Availability
content loaded
Specifications
- BrandHayward
- ApplicationPool, Spa
- Shipping Dimensions38 x 38.3 x 54.3 inch
- Backwash Flow Rate143 gal/min
- Backwash Min Flow Rate143 gal/min
- ChannelNone
- ColorGray
- Commercial, Residential, or ProfessionalCommercial
- Each Product Weight204 pound
- Filtration Area7.2 square feet
- Filtration Rate20 GPM/ft2
- Inlet/Outlet Sizes3 inch
- Master Carton Quantity1
- Maximum Working Pressure50 pounds per square inch
- Minimum Sell Quantity1
- Pallet Quantity1
- Side Clearance36.25 inch
- Standards ApprovalsANSI Standard 50 Certified
- Tank ColorGray
- Vertical Clearance48.5 inch
- UPC Code0610377194709
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

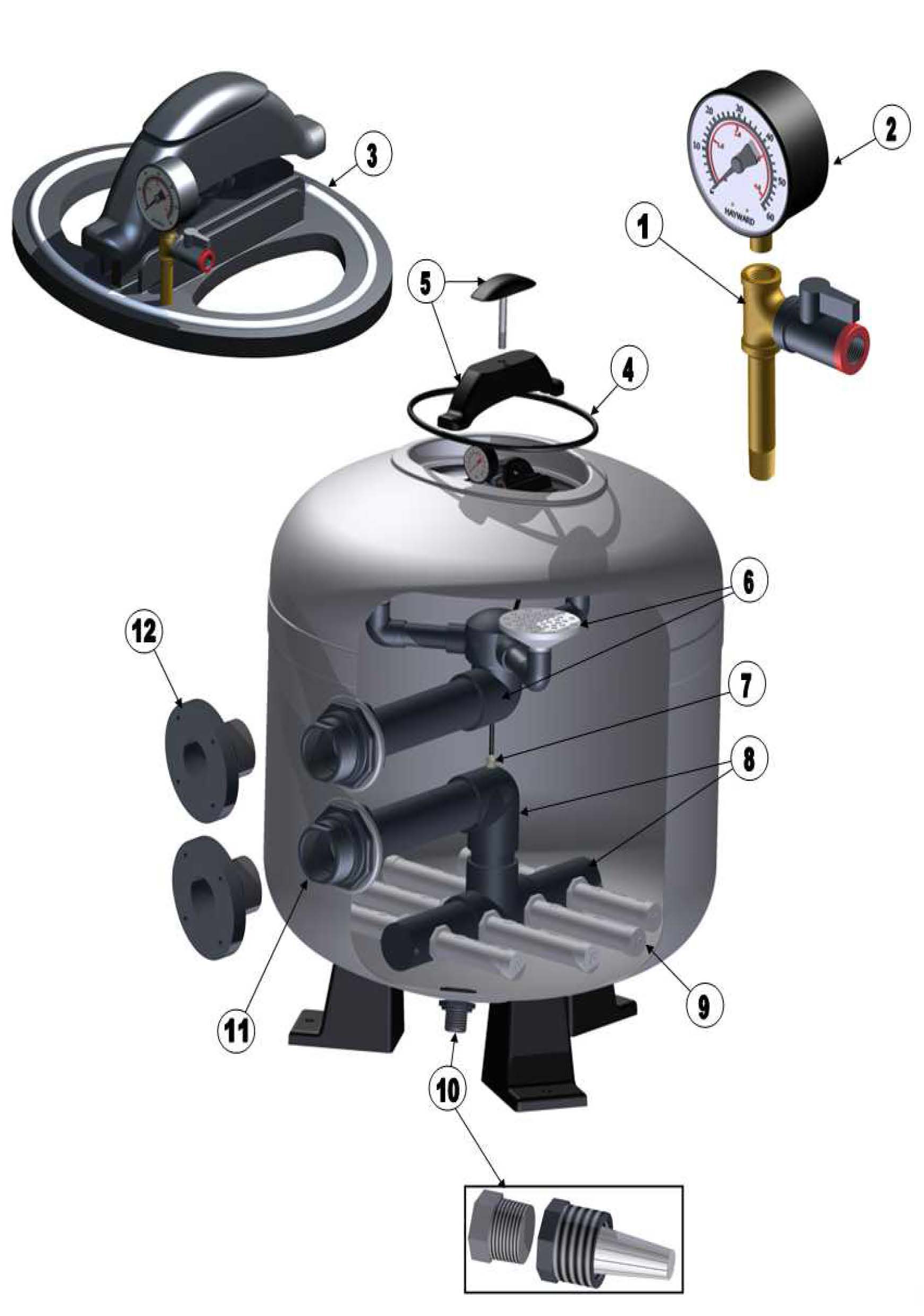

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
HCXFARV1000
HAY-051-9848
Product #: HAY-051-9848
Mfg #: HCXFARV1000
2
3
3
HCXFMWC1000
HAY-051-9873
HCXFMWC1000 MANWAY COVER ASSY
Product #: HAY-051-9873
Mfg #: HCXFMWC1000
4
5
5
HCXFMWY1000
Manway Cover Yoke & Knob Assy
Product #:
Mfg #: HCXFMWY1000
6
6
HCXFDMA1004
HAY-051-1112
HCXFDMA1004 DISTRIBUTION MANIFOLD ASSY
Product #: HAY-051-1112
Mfg #: HCXFDMA1004
7
7
HCXFARA1002
Internal Air Relief Assembly
Product #:
Mfg #: HCXFARA1002
8
8
HCXFCMA1004
HAY-051-9919
HCXFCMA1004 COLLECTOR MANIFOLD ASSY
Product #: HAY-051-9919
Mfg #: HCXFCMA1004
9
9
HCXFCLK1001
HAY-051-1111
HCXFCLK1001 LATERAL KIT
Product #: HAY-051-1111
Mfg #: HCXFCLK1001
10
10
HCXFDFA1000
HAY-051-9877
HCXFDFA1000 DRAIN FITTING ASSY
Product #: HAY-051-9877
Mfg #: HCXFDFA1000
11
11
HCXFBFA1001
HAY-051-9872
Product #: HAY-051-9872
Mfg #: HCXFBFA1001
12
12
HCXFFFK1000
HAY-051-9880
Product #: HAY-051-9880
Mfg #: HCXFFFK1000
