4" TxT Brass Steel Gate Valve

Product #:AMG-25-1533

Mfg. Part #:GV200-400T

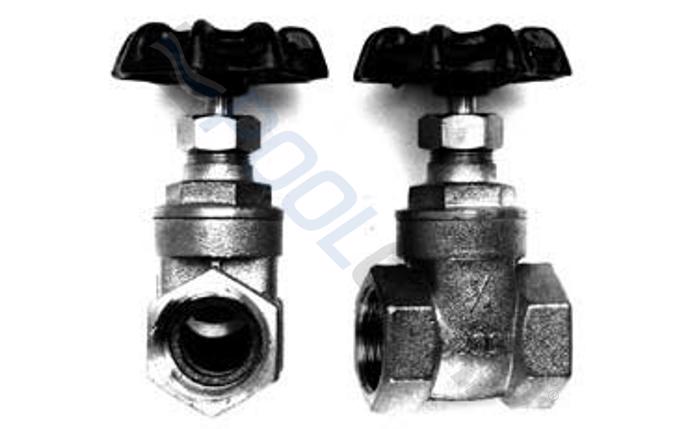

American Granby GV200-400T 4" TxT Brass Steel Gate Valve

American Granby

4" TxT Brass Steel Gate Valve

Product #:AMG-25-1533

Mfg. Part #:GV200-400T

Description

The American Granby GV200 Series Forged Brass Steel Gate Valve is constructed of heavy duty forged brass. Its die-cast body and forged bonnet are connected with a PTFE body to bonnet gasket for a leak proof seat. The GV200 is rated at 200 psi WOG and 125 psi SWP (working pressure, non shock).

Documents

Feature Bullets

  • Constructed of heavy duty forged brass
  • Die-cast body, forged bonnet are connected with a PTFE body to bonnet gasket for a leak proof seat
  • Screwed bonnet, non-rising stem, solid wedge disc and integral seats
  • Graphite stem seal packing
  • Cast iron hand wheel
  • Rated at 200 PSI WOG; 125 PSI SWP (working pressure, non shock)
  • Threaded ends produced to ANSI/ASME B1201 (NPT) standards
  • Sweat ends produced to ANSI B1618-1984 standards
  • Imported

    • Branch Availability

    content loaded

    Specifications

    • BrandAmerican Granby
    • ApplicationPool
    • Shipping Dimensions11.75 x 4.75 x 5.25 inch
    • ChannelConstruction Channel
    • ColorBlue, Gold
    • Commercial, Residential, or ProfessionalCommercial
    • Each Product Weight12.2 pound
    • MaterialBrass
    • Minimum Sell Quantity1
    • Pressure Rating200 pounds per square inch
    • Product Height4 inch
    • UPC Code642026003223
