Belgard

4" x 17 1/4" x 10 3/8" Diamond Pro Wall Cap Slate

Product #:OCB-37-8125

Mfg. Part #:16051886

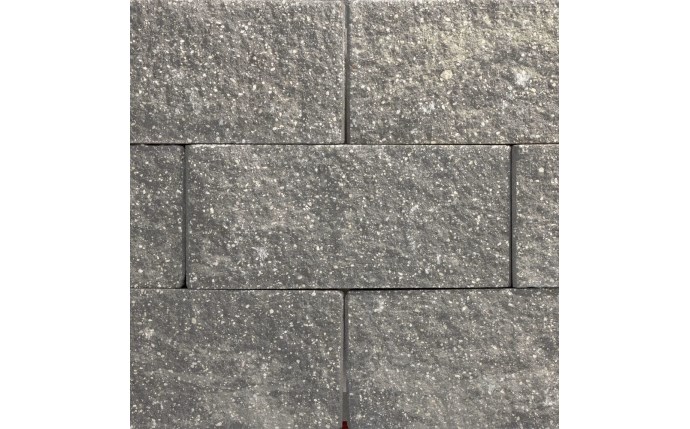

Belgard 16051886 4" x 17 1/4" x 10 3/8" Diamond Pro Wall Cap Slate

Belgard

4" x 17 1/4" x 10 3/8" Diamond Pro Wall Cap Slate

Product #:OCB-37-8125

Mfg. Part #:16051886

Description

Available in straight face and beveled face, the time tested strength of Diamond Pro® retaining wall systems makes it the contractors’ choice for large-scale projects.

Documents

Feature Bullets

  • Rear-lip locator
  • Large cores for ease in handling
  • Matching corner and cap for a seamless appearance
  • Gravity walls can be built up to 4 ft high, including buried course with a 7.1° batter
  • Walls in excess of 50 ft high have been built with Diamond Pro when combined with geosynthetic reinforcement
  • Minimum outside radius, measured from the top course to the front of the units: 4 ft
  • Minimum inside radius, measured on the base course to the front of the units: 6 ft

    • Branch Availability

    content loaded

    Specifications

    • BrandBelgard
    • ApplicationGarden Wall, Retaining Wall
    • Shipping Dimensions17 x 10 x 4 inch
    • ColorGray
    • Color FamilyGray
    • Commercial, Residential, or ProfessionalResidential
    • Each Product Weight44 pound
    • MaterialConcrete
    • Minimum Sell Quantity1
    • Pallet Quantity72
    • Paver/Coping/Veneer ColorSlate
    • Hardscape TypeRetaining Walls
