42" HCF Series Commercial Bobbin Wound Fiberglass Sand Filter

Product #:HAY-05-9963

Mfg. Part #:HCF342C

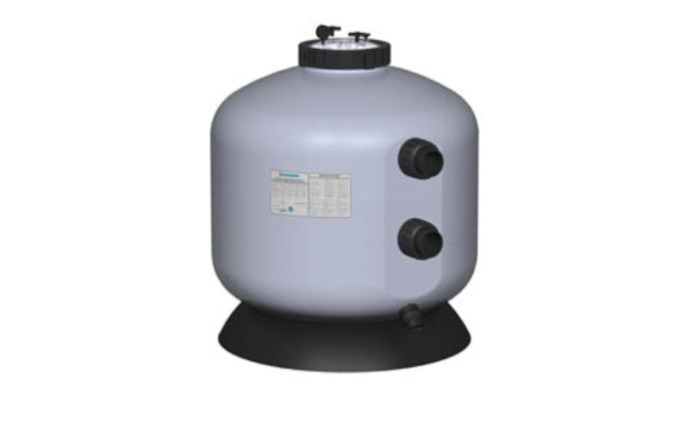

Hayward® HCF342C 42" HCF Series Commercial Bobbin Wound Fiberglass Sand Filter

Hayward

42" HCF Series Commercial Bobbin Wound Fiberglass Sand Filter

Product #:HAY-05-9963

Mfg. Part #:HCF342C

EA

Description

Hayward® HCF342C 42" HCF Series Commercial Bobbin Wound Fiberglass Sand Filter. The 42" HCF Series Commercial Bobbin Wound FG Sand Filter is designed to provide the ultimate in filtration performance and durability. Its larger size eliminates the need for multiple smaller filters, which means you’ll save valuable floor space, reduce installation and plumbing complexity, and simplify maintenance and backwashing. Constructed with heavy-duty filament-wound fiberglass and UV-protected resin, as well as corrosion-proof internals, this large-format HCF Series sand filter offers a powerful, streamlined filtration solution.

Feature Bullets

  • Large-format filter eliminates the need for multiple smaller filters, saving valuable space.
  • Provides flow rates up to 433 GPM.
  • Easy installation with simplified maintenance and backwashing.
  • Manufactured from heavy-duty filament-wound fiberglass for high-performance filtration and long-lasting durability.
  • UV-protected resin coat and corrosion-proof internals protect the filter from from even the harshest environments.
  • Large manway mechanism with positive seal enables easy inspection.
  • Durable fiberglass base for sturdy installation.

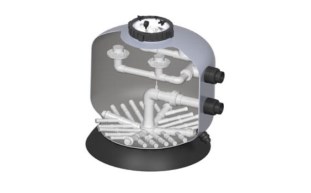

  • Industrial-grade laterals and quad diffusers improve filtration and lengthen filter cycle time.
  • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • ChannelNone
    • Shipping Dimensions46 x 43 x 49 inch
    • Commercial, Residential, or ProfessionalCommercial
    • Each Product Weight224.81 pound
    • Filter Media Pea Gravel225 pound
    • Filtration Area9.83 square feet
    • MaterialFiberglass
    • Maximum Working Pressure50 pounds per square inch
    • Minimum Sell Quantity1
    • Product Depth42 inch
    • Product Height48.66 inch
    • Product Weight224.8 pound
    • Product Width42 inch
    • Sand Required1400 pound
    • Side Clearance4 inch
    • Tank ColorLight Blue
    • Tank MaterialFiberglass
    • Vertical Clearance18 inch
    • Warranty - AdditionalParts - 5 year, Labor - 1 year
    • UPC Code0610377404068

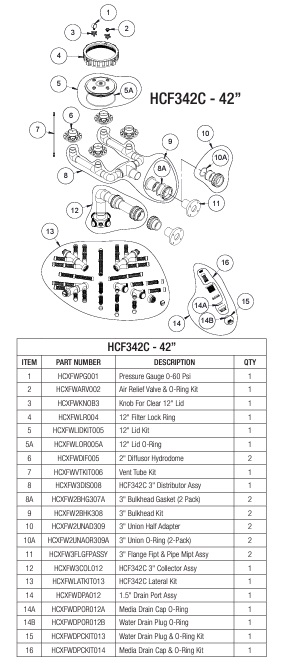

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    HCXFWPG001
    Pressure Gauge 0-60 PSI
    Product #:
    Mfg #: HCXFWPG001
    Notes:
    1 req.
    2
    2
    HCXFWARV002
    Air Relief Valve & O-Ring Kit
    Product #:
    Mfg #: HCXFWARV002
    Notes:
    1 req.
    3
    3
    HCXFWKNOB3
    Knob For Clear 12" Lid
    Product #:
    Mfg #: HCXFWKNOB3
    Notes:
    1 req.
    4
    4
    HCXFWLR004
    12" Filter Lock Ring
    Product #:
    Mfg #: HCXFWLR004
    Notes:
    1 req.
    5
    5
    HCXFWLIDKIT005
    12" Lid Kit
    Product #:
    Mfg #: HCXFWLIDKIT005
    Notes:
    1 req.
    5A
    5A
    HCXFWLOR005A
    12" Lid O-Ring
    Product #:
    Mfg #: HCXFWLOR005A
    Notes:
    1 req.
    6
    6
    HCXFWDIF005
    2" Diffusor Hydrodome
    Product #:
    Mfg #: HCXFWDIF005
    Notes:
    2 req.
    7
    7
    HCXFWVTKIT006
    Vent Tube Kit
    Product #:
    Mfg #: HCXFWVTKIT006
    Notes:
    1 req.
    8
    8
    HCXFW3DIS008
    HCF342C 3" Distributor Assy
    Product #:
    Mfg #: HCXFW3DIS008
    Notes:
    1 req.
    8A
    8A
    HCXFW2BHG307A
    3" Bulkhead Gasket (2 Pack)
    Product #:
    Mfg #: HCXFW2BHG307A
    Notes:
    2 req.
    9
    9
    HCXFW2BHK308
    3" Bulkhead Kit
    Product #:
    Mfg #: HCXFW2BHK308
    Notes:
    2 req.
    10
    10
    HCXFW2UNAD309
    3" Union Half Adapter
    Product #:
    Mfg #: HCXFW2UNAD309
    Notes:
    2 req.
    10A
    10A
    HCXFW2UNAOR309A
    3" Union O-Ring (2-Pack)
    Product #:
    Mfg #: HCXFW2UNAOR309A
    Notes:
    2 req.
    11
    11
    HCXFW3FLGFPASSY
    3" Flange Fipt & Pipe Mipt Assy
    Product #:
    Mfg #: HCXFW3FLGFPASSY
    Notes:
    2 req.
    12
    12
    HCXFW3COL012
    HCF342C 3" Collector Assy
    Product #:
    Mfg #: HCXFW3COL012
    Notes:
    1 req.
