AstralPool
42" x 118" 34 SqFt Horizontal Commercial Sand Filter with 6" Connection
Product #:ASP-05-2023
Mfg. Part #:20895
AstralPool 20895 42" x 118" 34 SqFt Horizontal Commercial Sand Filter with 6" Connection
AstralPool
42" x 118" 34 SqFt Horizontal Commercial Sand Filter with 6" Connection
Product #:ASP-05-2023
Mfg. Part #:20895
Description

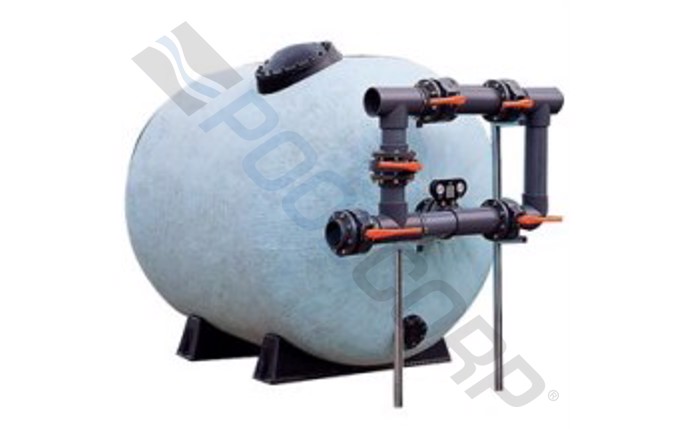

AstralPool 20895 42" x 118" 34 SqFt Horizontal Commercial Sand Filter with 6" Connection. AstralPool Horizontal Commercial Sand Filters are constructed in Jacksonville, Florida. Filters hold an NSF listing for working pressures of 50psi and test pressures of 75psi. Man-Way is a diameter of 16 Inch. Filters are constructed in six reinforced layers of laminated and filament fiberglass winding. Horizontal filters offer a vast range of surface areas and a 2 ft bed depth, providing space saving opportunities with NSF listed stacking capabilities. Standard and custom manifold systems, Semi and Fully Automated systems, Sand and Gravel required and sold separately
Documents
Branch Availability
content loaded
Specifications
- BrandAstralPool
- ApplicationPool
- ChannelNone
- Commercial, Residential, or ProfessionalCommercial
- Design Flow Rate680 gal/min
- Distance Between Inlet/Outlet19 inch
- Distance Inlet and Base13.5 inch
- Each Product Weight814 pound
- Filtration Area34 square feet
- IncludesManual Air Purge Valve, Water Drain Valve and Large Sand Drain
- Master Carton Quantity1
- Minimum Sell Quantity1
- Pallet Quantity1
- Pipe Size6 inch
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

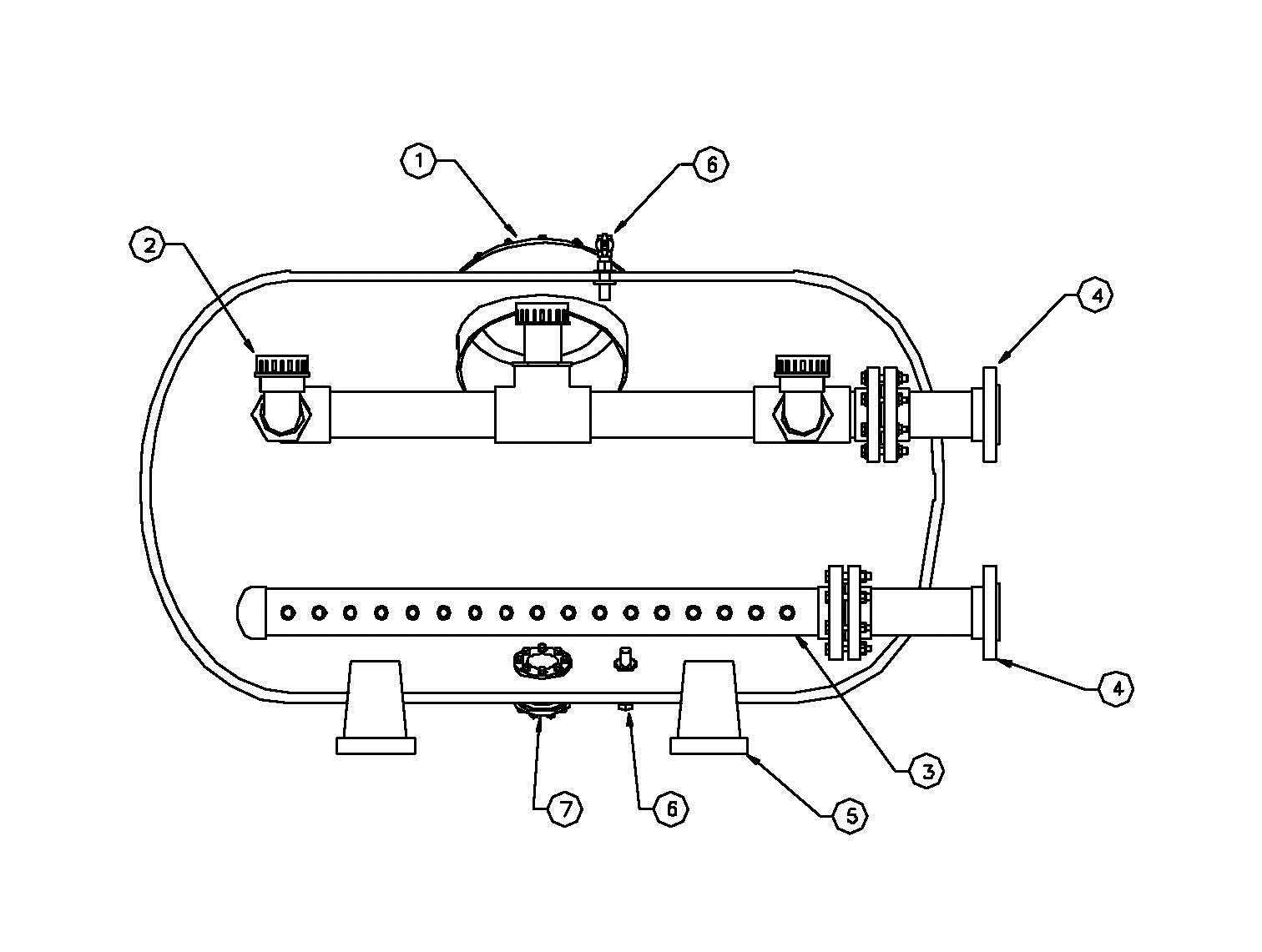

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
0545-0212
NUT CAP
Product #:
Mfg #: 0545-0212
1
1
7012112000
ASP-051-1210
7012112000 M12 LID NUT
Product #: ASP-051-1210
Mfg #: 7012112000
1
1
7013812000
ASP-051-1209
7013812000 M12 WASHER
Product #: ASP-051-1209
Mfg #: 7013812000
2
2
11319-0100
Diffuser Assembly
Product #:
Mfg #: 11319-0100
2
2
11325-0100
Diffuser Assembly
Product #:
Mfg #: 11325-0100
2
2
11330-0100
Diffuser Assembly
Product #:
Mfg #: 11330-0100
2
2
20895-0100
Diffuser Assembly
Product #:
Mfg #: 20895-0100
2
2
20896-0100
Diffuser Assembly
Product #:
Mfg #: 20896-0100
2
2
20897-0100
Diffuser Assembly
Product #:
Mfg #: 20897-0100
2
2
20898-0100
Diffuser Assembly
Product #:
Mfg #: 20898-0100
2
2
20899-0100
Diffuser Assembly
Product #:
Mfg #: 20899-0100
2
2
20900-0100
Diffuser Assembly
Product #:
Mfg #: 20900-0100
2
2
20901-0100
Diffuser Assembly
Product #:
Mfg #: 20901-0100
2
2
20902-0100
Diffuser Assembly
Product #:
Mfg #: 20902-0100
2
2
20903-0100
Diffuser Assembly
Product #:
Mfg #: 20903-0100
Wholegoods
There are no wholegoods available.
