Aqua Creek
500 lbs Capacity The Revolution Lift™ without Anchor
Product #:ACP-42-4067
Mfg. Part #:F-702RLNA
- This product is obsolete.
- The superceded product was not found.
Aqua Creek Products F-702RLNA 500 lbs Capacity The Revolution Lift™ without Anchor, 360 deg Rotation
Aqua Creek
500 lbs Capacity The Revolution Lift™ without Anchor
Product #:ACP-42-4067
Mfg. Part #:F-702RLNA
Description
Aqua Creek Products F-702RLNA 500 lbs Capacity The Revolution Lift™ without Anchor, 360 deg Rotation. The Revolution pool lift is our most versatile lift and able to accommodate individuals up to 500 pounds. The available accessories for this lift make the Revolution and ideal choice for hospitals or rehabilitation centers. Like all Aqua Creek ADA verified lifts, the Revolution is designed to be self-operated by the individual user. With easy to use 4 button remote, the user is able to control all movement and enjoy a fully independent aquatic experience
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandAqua Creek
- ApplicationPool, Pool Deck
- Shipping Dimensions70 x 48 x 42 inch
- ColorBlue
- Commercial, Residential, or ProfessionalCommercial
- Each Product Weight325 pound
- FinishPowder Coated
- Master Carton Quantity1
- MaterialStainless Steel
- Minimum Sell Quantity1
- Pallet Quantity1
- Power TypeBattery
- Weight Capacity500 pound
- Rotation (Degrees)360
- UPC Code811628020642
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

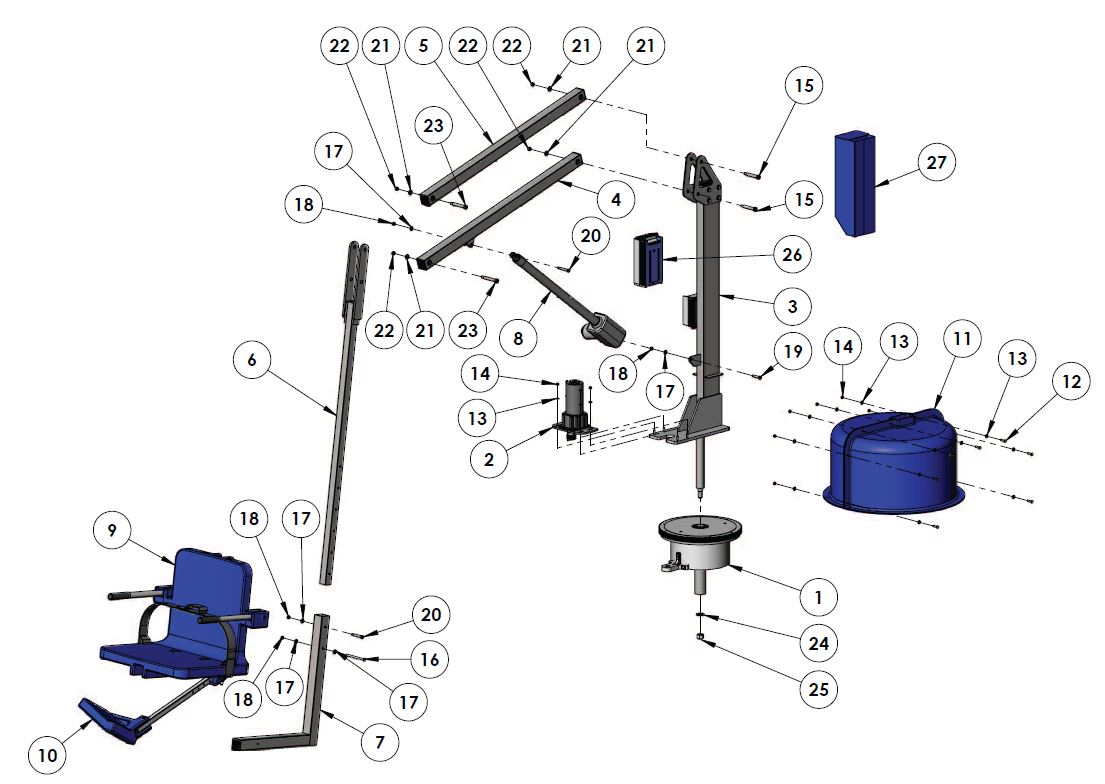

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
REV-200-96
BASE ASSEMBLY
Product #:
Mfg #: REV-200-96
2
2
REV-300-40
ROTATE MOTOR ASSEMBLY
Product #:
Mfg #: REV-300-40
3
3
REV-400-71
MAST ASSEMBLY
Product #:
Mfg #: REV-400-71
4
4
REV-500-10
LIFTING ARM ASSEMBLY
Product #:
Mfg #: REV-500-10
5
5
REV-600-10
CONTROL ARM ASSEMBLY
Product #:
Mfg #: REV-600-10
6
6
REV-700-31
CHAIR ARM ASSEMBLY
Product #:
Mfg #: REV-700-31
7
7
REV-800-20
CHAIR CRADLE ASSEMBLY
Product #:
Mfg #: REV-800-20
8
8
340643-00
LINAK, 600MM ACTUATOR
Product #:
Mfg #: 340643-00
9
9
SA-0904WDCAB
22 INCH WIDE SEAT ASSEMBLY
Product #:
Mfg #: SA-0904WDCAB
10
10
F-0904FRA
FOOTREST ASSEMBLY
Product #:
Mfg #: F-0904FRA
11
11
P-931
BLUE PLASTIC SHROUD
Product #:
Mfg #: P-931
12
12
BH 1/4 X 1
BOLT, 316 SS, 1/4-20 X 1 HCS
Product #:
Mfg #: BH 1/4 X 1
13
13
WF 1/4
WASHER, FLAT, 1/4, 316 SS
Product #:
Mfg #: WF 1/4
14
14
NN 1/4
NUT, 316 SS, NYLOCK, 1/4-20
Product #:
Mfg #: NN 1/4
15
15
BS 1/2 X 2 3/4 18-8
BOLT, 18-8 SS, 1/2 X 2 3/4 SHOULDER, 3/8-16 THREAD
Product #:
Mfg #: BS 1/2 X 2 3/4 18-8
