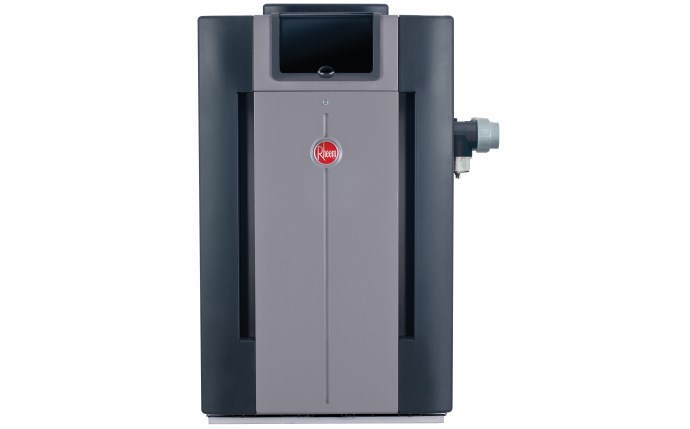

Rheem
#58 Liquid Propane Digital Polymer Heater 199K BTU 2000-3000 Elevation
Product #:RHM-15-1503
Mfg. Part #:009978
Rheem 009978 #58 Liquid Propane Digital Polymer Heater 199K BTU 2000-3000 Elevation
Rheem
#58 Liquid Propane Digital Polymer Heater 199K BTU 2000-3000 Elevation
Product #:RHM-15-1503
Mfg. Part #:009978
EA
Description
The Rheem gas heater has a polyester-coated, non-corrosive cabinet that is more durable than solvent borne- and water borne-coated metal cabinets. Every piece of sheet metal goes through a 7-stage wash system, making certain the powder paint has a perfect bond. Underneath the tough, yet beautiful finish you will find galvanized metal that offers superior rust prevention and years of durable service
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandRheem
- ApplicationPool, Spa
- Shipping Dimensions30 x 28 x 45 inch
- BTU Input199 British thermal unit
- Cabinet Depth20 inch
- Cabinet Height38 inch
- Cabinet Width28 inch
- ChannelNone
- ColorGray
- Commercial, Residential, or ProfessionalResidential
- Each Product Weight187 pound
- Flow Rate Max100 gal/min
- Flow Rate Min20 gal/min
- Fuel TypePropane
- MaterialPolymer
- Minimum Sell Quantity1
- Warranty - AdditionalParts - 2 year
- Warranty - General90 days
- UPC Code840891014416

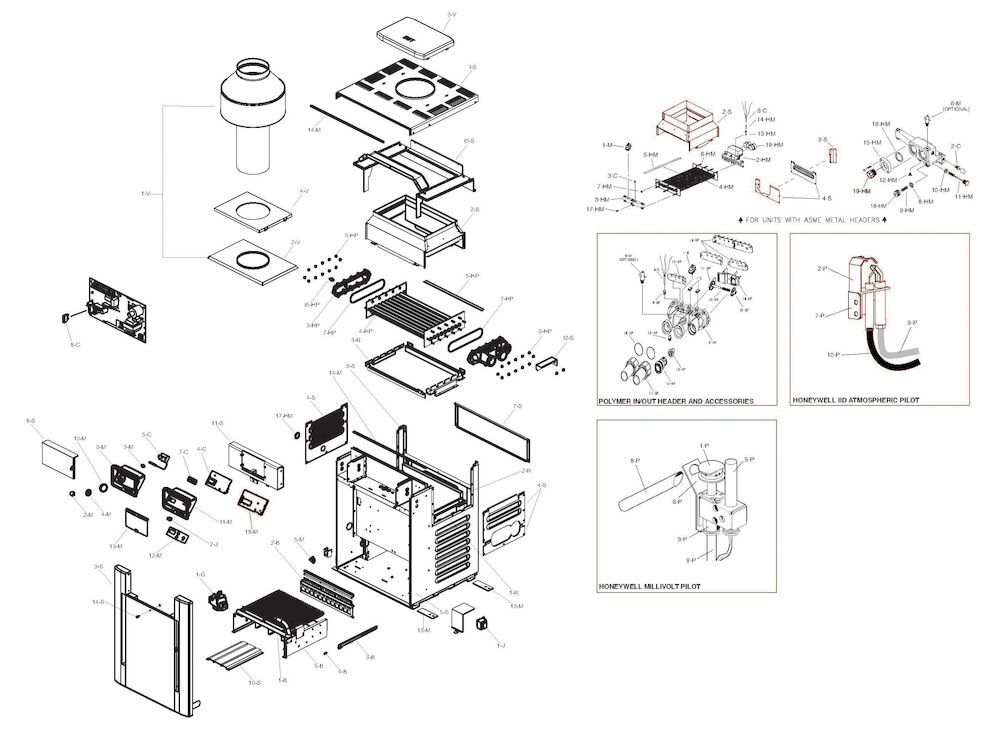

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1-B
1-B
019224F
Polymer Cupro HX Pro #58 Orifice
Product #:
Mfg #: 019224F
Notes:
For Installation At Over 2,000 Feet Above Sea Level, Derate 4% Per 1,000 Feet Above Sea Level. Refer To The Heater'S Rating Plate.2-B
2-B
010417F
RAY-151-8039
Burner Spacer/Hold Down Kit
Product #: RAY-151-8039
Mfg #: 010417F
3-B
3-B
100-10000414
Burner
Product #:
Mfg #: 100-10000414
Notes:
Qty 134-B
4-B
100-10006068
RAY-151-1179
Burner Orifice #58* (2000-2999 ft elevation)
Product #: RAY-151-1179
Mfg #: 100-10006068
Notes:
Qty 135-B
5-B
010423F
RAY-151-8050
Burner Tray w/o Manifold w/o burners
Product #: RAY-151-8050
Mfg #: 010423F
1-C
1-C
006725F
RAY-151-3701
High Limit Auto-Reset 135�F Deg Surface Mount
Product #: RAY-151-3701
Mfg #: 006725F
2-C
2-C
100-10000345
RAY-151-0058
P.C. Board/Control
Product #: RAY-151-0058
Mfg #: 100-10000345
3-C
3-C
013733F
RAY-151-3733
Fuse 5 AMP (P.C. Board)
Product #: RAY-151-3733
Mfg #: 013733F
4-C
4-C
009577F
RAY-151-1208
Temperature Sensor IID Units
Product #: RAY-151-1208
Mfg #: 009577F
5-C
5-C
018304F
RAY-151-0170
High Limit Auto-Reset 160�F Surface Mount (ASME Only)
Product #: RAY-151-0170
Mfg #: 018304F
1-G
1-G
004306F
RAY-151-3577
Combination Valve - Pro. IID
Product #: RAY-151-3577
Mfg #: 004306F
1-HP
1-HP
017994F
RAY-151-1019
Heat Exchanger Assy Copper - Units manufactured from 10/2019
Product #: RAY-151-1019
Mfg #: 017994F
Notes:
WARNING: Copper and Cupronickel heat exchangers and tube bundles are not interchangeable. Units with suffix "C" must use copper replacement parts and units with suffix "X" must use Cupronickel replacement parts2-HP
2-HP
017959F
RAY-151-1460
Inlet/Outlet Header Complete - Units manufactured from 10/2019
Product #: RAY-151-1460
Mfg #: 017959F
3-HP
3-HP
015095F
RAY-151-8362
Return Header
Product #: RAY-151-8362
Mfg #: 015095F
Notes:
Includes 6-HP - Flange Nut Kit (1/4-20)4-HP
4-HP
010061F
RAY-151-1465
Tube Bundle Copper
Product #: RAY-151-1465
Mfg #: 010061F
Notes:
WARNING: The Hydraulic conditions or water chemistry that caused the tube bundle to fail have very likely also damaged the bypass valve and Unitherm Governor. Raypak recommends you replace the Unitherm Governor and inspect the bypass assembly. Failure to do so could cause premature failure of this replacement part. WARNING: Copper and Cupronickel heat exchangers and tube bundles are not interchangeable. Units with suffix "C" must use copper replacement parts and units with suffix "X" must use Cupronickel replacement parts.Wholegoods
There are no wholegoods available.
