Jandy® CL580 Pro Series CL Series 47" 580 SqFt 4 Cartridge Filter System 50 psi 150 gpm
EA
Description
The design of the CL Cartridge Filter takes advantage of the filter's total surface area, providing the clearest water possible and extended cleaning cycles. This filter handles high flow rates with optimum hydraulic performance. CL large cartridge filters are technologically advanced and constructed with corrosion resistant polymeric materials for long-lasting performance. Universal unions make filter installation easy.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandJandy
- ApplicationPool
- Shipping Dimensions24 x 24 x 46 inch
- Cartridges Required4
- ChannelNone
- Design Flow Rate150 gal/min
- Distance Between Inlet/Outlet8.5 inch
- Distance Inlet and Base10.5 inch
- Distance Outlet and Base18.5 inch
- Each Product Weight109 pound
- Filtration Area580 square feet
- Filtration Rate150 GPM/ft2
- Includes2 Inch x 2-1/2 Inch Universal Unions, Sweep Elbow (SEFL1002)
- MaterialThermoplastic
- Maximum Flow Rate150 gal/min
- Maximum Working Pressure50 pounds per square inch
- Minimum Sell Quantity1
- Pallet Quantity4
- Product Height47 inch
- Product Weight101 pound
- Turnover 6hrs54000 gallon
- Turnover 8hrs72000 gallon
- Normal Start Up Pressure6 pounds per square inch
- UPC Code052337004244

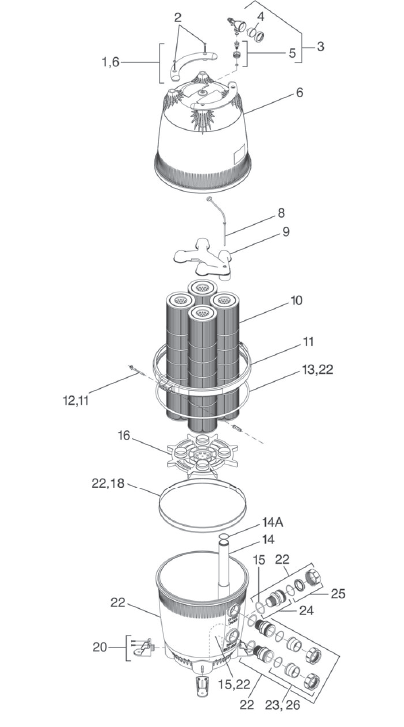

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
R0357100
TLD-051-3571
Product #: TLD-051-3571
Mfg #: R0357100
2
3
3
3
V55-110
Gauge/Air Release for Jandy Filter
Product #:
Mfg #: V55-110
4
5
6
6
6
R0554700
TLD-051-5027
Product #: TLD-051-5027
Mfg #: R0554700
-
8
9
9
9
25357-850-000
White Cartridge Top Manifold J-Style
Product #:
Mfg #: 25357-850-000
9
9
V55-200
Cartridge Manifold for Jandy Filter
Product #:
Mfg #: V55-200
10
10
R0357900
TLD-06-122
Product #: TLD-06-122
Mfg #: R0357900
10
10
FC-0820P
145 SqFt Point Bonded CL580/CV580 Cartridge Element
Product #:
Mfg #: FC-0820P
Wholegoods
There are no wholegoods available.
