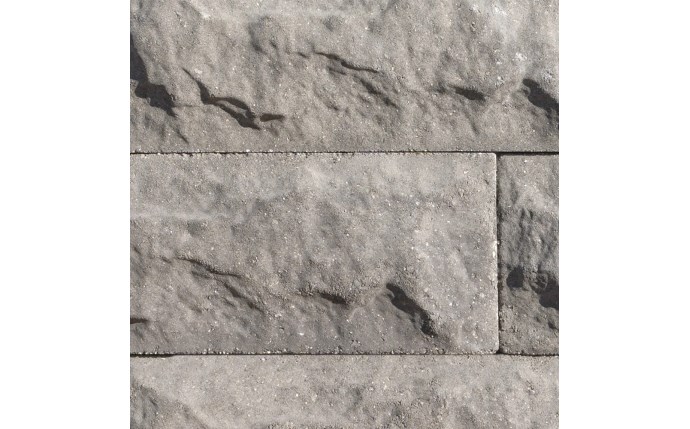

6" 3-Piece Belair 2.0 Segmental Retaining Wall Slate

Product #:OCB-37-7172

Mfg. Part #:16051254


Belgard 16051254 6" 3-Piece Belair 2.0 Segmental Retaining Wall Slate

Belgard

6" 3-Piece Belair 2.0 Segmental Retaining Wall Slate

Product #:OCB-37-7172

Mfg. Part #:16051254

SQF

Description

Belair Wall® 2.0 is ideal for retaining and freestanding wall construction where aesthetics are a key consideration. The attractive multipiece design and blended colors offer an alternative look to traditional retaining wall blocks. Belair Wall 2.0 can be used in curves and corners, terraces and raised patios, or steps and columns.

Documents

Feature Bullets

  • Freestanding & gravity walls can be built up to 3 feet high, including buried course.
  • Taller walls can be built using geosynthetic reinforced when designed by a qualified engineer.
  • Rear-lip on retaining wall block makes installation fast and accurate.
  • Freestanding Walls: 4-foot minimum radius using all 3 units.
  • Retaining Walls: 1″/9.5 degree Setback/System batter.
  • Minimum outside radius, measured on the top course to the front of the units: 4 feet.
  • Minimum inside radius, measured on the base course to the front of the units: 8 feet.

    • Branch Availability

    content loaded

    Specifications

    • BrandBelgard
    • ApplicationGarden Wall, Retaining Wall
    • Shipping Dimensions12 x 12 x 6 inch
    • ChannelConstruction Channel
    • ColorGray
    • Color FamilyGray
    • Commercial, Residential, or ProfessionalResidential
    • Each Product Weight90 pound
    • MaterialConcrete
    • Minimum Sell Quantity1
    • Pallet Quantity30
    • Block ColorSlate
    • Radius (Min. Inside)8 foot
    • Radius (Min. Outside)4 foot
