8" PVC With EPDM Seat

Product #:ASP-56-4135

Mfg. Part #:02587


Cepex, 02587, 8" PVC With EPDM Seat

8" PVC With EPDM Seat

Product #:ASP-56-4135

Mfg. Part #:02587

Description

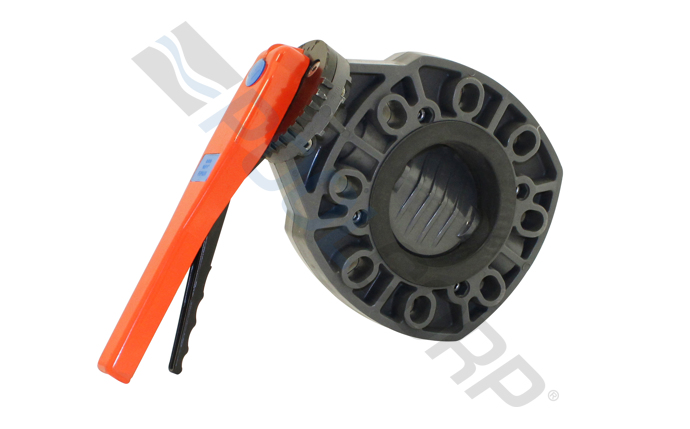

The Standard Classic Series of Butterfly Valves is ideally suited for flow control using minimal piping space and includes a EPDM Seat. The aluminum handle and a zinc plated steel shaft allow for excellent manual control of water flow with no chance of blow outs or leaks. This butterfly valve has a working pressure of 90 psi at 73ºF.

Feature Bullets

  • Ideally suited for flow control using minimal piping space.
  • 100% factory tested.
  • Minimal pressure drop.
  • Low maintenance.
  • Resistance to many inorganic chemicals.
  • Excellent flow characteristics.
  • Good mechanical strength.
  • PVC-U Body
  • D63-D140 (2” - 5”): PN 10 (150 psi)
  • D160 - D250 (6” - 10”): PN 6 (90 psi)
  • Branch Availability

    content loaded

    Specifications

    • Commercial, Residential, or ProfessionalCommercial
    • Each Product Weight0 pound
    • Master Carton Quantity1
    • MaterialPVC or Polyvinyl Chloride
    • Minimum Sell Quantity1
    • Pallet Quantity1
    • Pressure Rating90 pounds per square inch
    • Valve ColorGray
