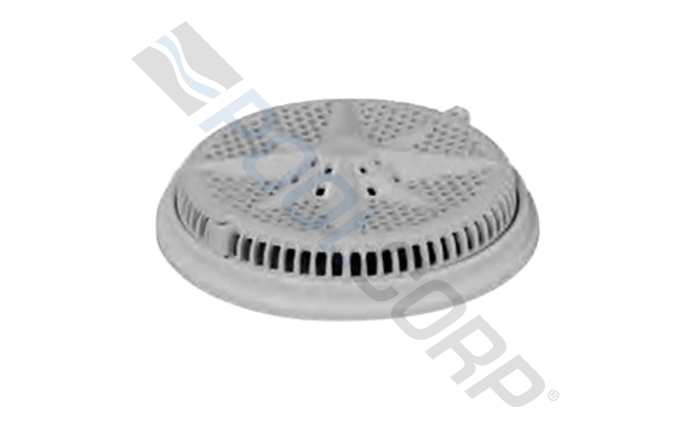

Pentair StarGuard® 500147 Main Drain Cover with Short Ring; Gray, 8", 2 Pack
Description
New StarGuard® main drains comply with provisions of the ANSI per ASME A112.19.8-2007 standard and the Virginia Graeme Baker Pool and Spa Safety Act. High quality StarGuard® main drains are available in white, black, gray, and dark gray as well as a variety of configurations to fit any residential inground pool or spa installation. Review the specifications to find the right StarGuard® model for your application. StarGuard® main drains have an industry leading 15.35 sq-in of open area for water flow. If you are in an area where water velocity through the grate is limited to 1.5 ft per sec, the StarGuard covers allow flow rates up to 72 gpm.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandPentair
- ApplicationInground, Pool, Spa
- Shipping Dimensions9 x 9 x 6 inch
- Commercial, Residential, or ProfessionalResidential
- Cover Open Area15.35 square inch
- Cover ShapeRound
- Cover StyleStarGuard
- Each Product Weight2.09 pound
- Floor Flow Rate Measure A144 gal/min
- Frame Size8 inch
- IncludesCover with Short Ring (2 Pack)
- Inner Diameter7.6 inch
- Master Carton Quantity1
- Minimum Sell Quantity1
- Outer Diameter8.64 inch
- Pallet Quantity1
- Standards ApprovalsANSI Certified, APSP Certified
- Wall Flow Rate Measure A112 gal/min
- UPC Code788379791193
