Pentair

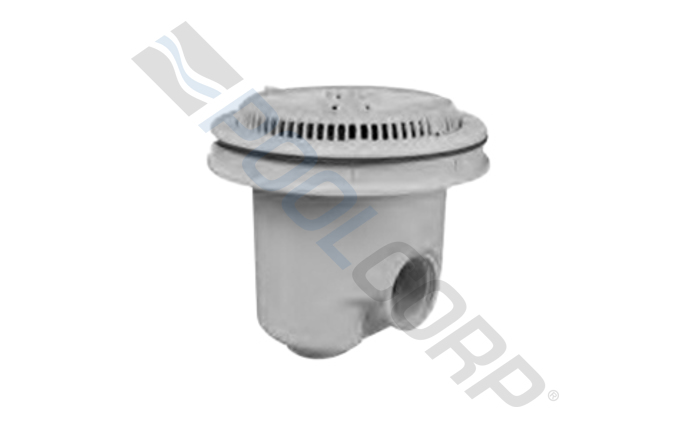

8" White StarGuard Drain with Vinyl Suction Cover, Frame and 2-Port ABS Sump
Product #:PAC-25-8020
Mfg. Part #:500130
Pentair StarGuard 500130 8" White Drain with Vinyl Suction Cover, Frame and 2-Port ABS Sump 2 Pack
Pentair
8" White StarGuard Drain with Vinyl Suction Cover, Frame and 2-Port ABS Sump
Product #:PAC-25-8020
Mfg. Part #:500130
Description
liner ABS sump (2 pack). New StarGuard® main drains comply with provisions of the ANSI per ASME A112.19.8-2007 standard and the Virginia Graeme Baker Pool and Spa Safety Act. High quality StarGuard® main drains are available in white, black, gray, and dark gray as well as a variety of configurations to fit any residential inground pool or spa installation. Review the specifications to find the right StarGuard® model for your application. StarGuard® main drains have an industry leading 15.35 sq-in of open area for water flow. If you are in an area where water velocity through the grate is limited to 1.5 ft per sec, the StarGuard covers allow flow rates up to 72 gpm.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandPentair
- ApplicationInground, Pool, Spa
- Shipping Dimensions15.3 x 13.8 x 9 inch
- ChannelNone
- Commercial, Residential, or ProfessionalResidential
- Cover Open Area15.35 square inch
- Cover ShapeRound
- Cover StyleStarGuard
- Each Product Weight6.25 pound
- Floor Flow Rate Measure A144 gal/min
- Frame Size8 inch
- Includes2 Inch Side and 1.5 Inch Bottom Vinyl Liner ABS Sump (2 Pack)
- Inner Diameter7.6 inch
- Master Carton Quantity1
- Minimum Sell Quantity1
- Outer Diameter9.8 inch
- Pallet Quantity1
- Pool or Spa TypeVinyl
- Standards ApprovalsANSI Certified, APSP Certified
- Wall Flow Rate Measure A112 gal/min
- Bottom Outlet Pipe Min Size1.5 inch
- Side Outlet Pipe Size2 inch
- UPC Code788379791117
