84" SFHT Commercial Series Horizontal Sand Filter

Product #:TLD-05-1254

Mfg. Part #:SFHT3484


Jandy® SFHT3484 84" SFHT Commercial Series Horizontal Sand Filter19.3 SqFt

Jandy

84" SFHT Commercial Series Horizontal Sand Filter

Product #:TLD-05-1254

Mfg. Part #:SFHT3484

EA

Description

Jandy® commercial horizontal sand filters provide superior filtration for enhanced water clarity in high-demand, commercial pool applications.

Documents

Feature Bullets

  • Heavy-duty 5-layer laminated fiberglass tank for years of trouble-free service
  • Isophthalic laminate applied radially and axially for maximum strength
  • Robotic hole placement ensures an exact fit of plumbing flanges
  • Industry-leading 16” round access hatch with clear viewport
  • Proprietary laterals load and unload media more effectively, aiding in fast, efficient backwash cycles
  • Generous drain outlet speeds media replacement
  • Every unit tested and documented before shipment
  • NSF-50 listed

    • Branch Availability

    content loaded

    Specifications

    • BrandJandy
    • ApplicationPool, Spa
    • Shipping Dimensions96 x 52 x 58 inch
    • Backwash Min Flow Rate96.5 gal/min
    • ChannelNone
    • ColorGray
    • Commercial, Residential, or ProfessionalCommercial
    • Each Product Weight925 pound
    • Filtration Area19.3 square feet
    • FinishStandard
    • IncludesFilter tank, air vent valve, tank feet, tank drain
    • MaterialFiberglass
    • Maximum Flow Rate386 gal/min
    • Maximum Working Pressure50 pounds per square inch
    • Minimum Sell Quantity1
    • Sand Required2000 pound
    • Side Clearance96.5 inch
    • Standards ApprovalsNSF Certified, ANSI Certified
    • Tank ColorGray
    • Tank Diameter34.75 inch
    • Turnover 6hrs138.96 gallon
    • Vertical Clearance41.5 inch
    • Warranty - General1 years
    • Sand Type Requirements# 20 Silica sand or Zeolite
    • UPC Code052337291965

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    R1016200
    TLD-051-1943
    Hatch Hardware for SFHT Sand Filter
    Product #: TLD-051-1943
    Mfg #: R1016200
    Notes:

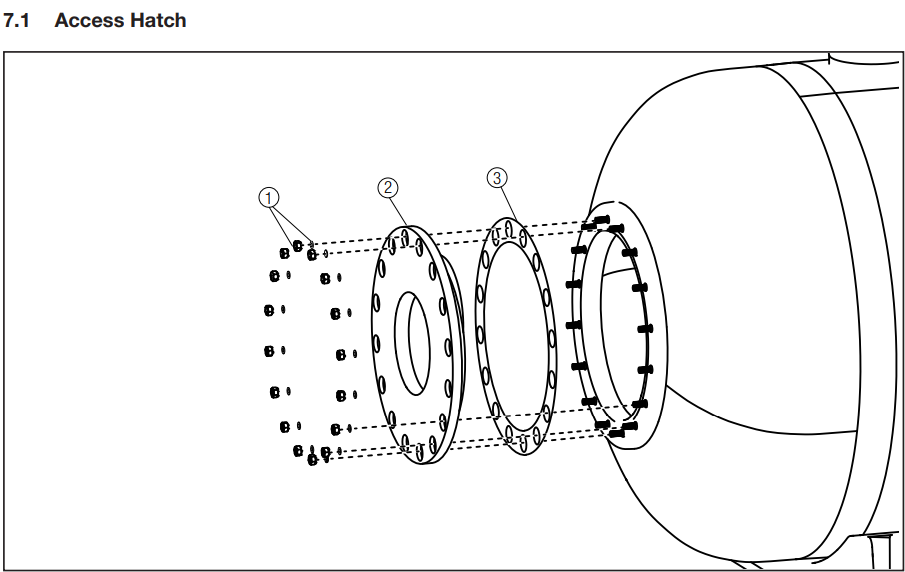

    Access Hatch
    2
    2
    R1016300
    TLD-051-1944
    Hatch with Viewport
    Product #: TLD-051-1944
    Mfg #: R1016300
    Notes:
    Access Hatch
    3
    3
    R1016400
    TLD-051-1945
    Hatch Gasket
    Product #: TLD-051-1945
    Mfg #: R1016400
    Notes:
    Access Hatch
    4
    4
    R1016500
    TLD-051-1946
    Complete Air Vent Valve
    Product #: TLD-051-1946
    Mfg #: R1016500
    Notes:

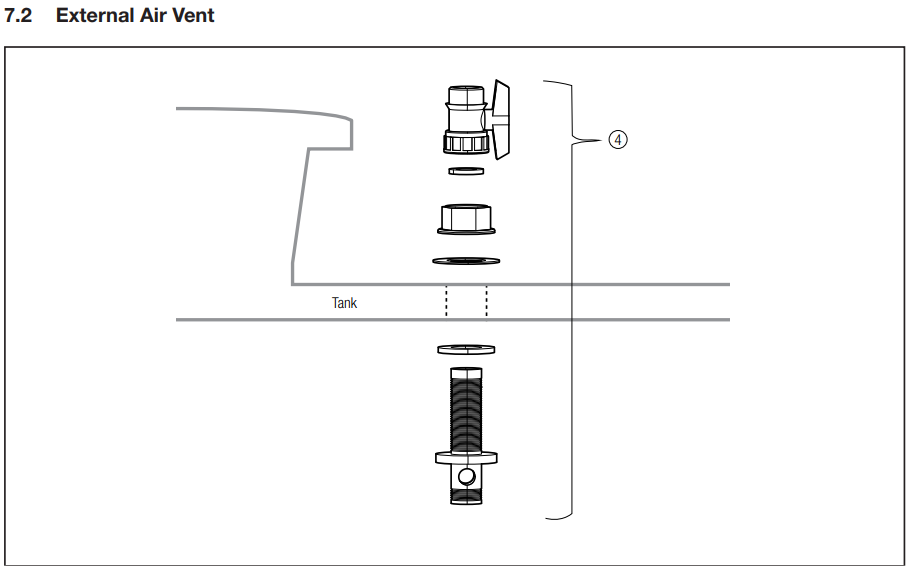

    External Air Vent
    5
    5
    R1016600
    TLD-051-1947
    SFHT Sand Filter Complete Drain Fitting
    Product #: TLD-051-1947
    Mfg #: R1016600
    Notes:
    Media Drain
    6
    6
    R1016700
    TLD-051-1948
    Complete Gauge Panel Assembly with Gauges for SFHT Sand Filter
    Product #: TLD-051-1948
    Mfg #: R1016700
    Notes:

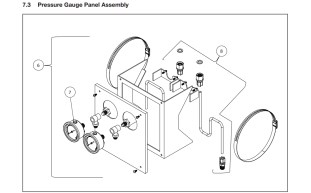

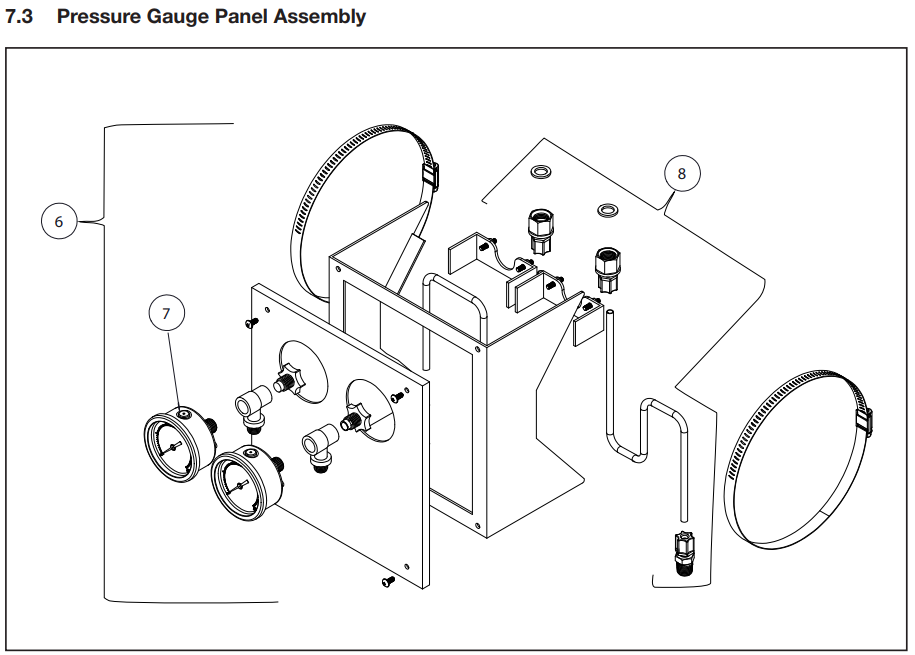

    Pressure Gauge Panel Assembly
    7
    7
    R1016800
    TLD-051-1949
    Pressure Gauge for SFHT Sand Filter
    Product #: TLD-051-1949
    Mfg #: R1016800
    Notes:
    Pressure Gauge Panel Assembly
    8
    8
    R1016900
    TLD-051-1950
    Gauge Panel Tubing Kit with Hardware for SFHT Sand Filter
    Product #: TLD-051-1950
    Mfg #: R1016900
    Notes:
    Pressure Gauge Panel Assembly
    Not Shown
    Not Shown
    81017000
    Diffuser Arm Assy, All 34" Models
    Product #:
    Mfg #: 81017000
    Not Shown
    Not Shown
    R1017400
    TLD-051-1955
    Sand Filter Tank Influent Header Pipe Only for SFHT3484
    Product #: TLD-051-1955
    Mfg #: R1017400
    Not Shown
    Not Shown
    R1017900
    TLD-051-1960
    Sand Filter Tank Lateral for 34" Models
    Product #: TLD-051-1960
    Mfg #: R1017900
    Not Shown
    Not Shown
    R1018400
    TLD-051-1965
    Sand Filter Tank Effluent Header Pipe Only for SFHT3484
    Product #: TLD-051-1965
    Mfg #: R1018400
    Not Shown
    Not Shown
    R1018800
    TLD-051-1969
    4" FibergIass Header U-Bolt Kit
    Product #: TLD-051-1969
    Mfg #: R1018800
