Hayward

9.25" Dark Gray Auto-Skim Wide Track Square Skimmer

Product #:HAY-25-1001

Mfg. Part #:SP10852OMTEDGR

Hayward SP10852OMTEDGR 9.25" Dark Gray Auto-Skim Wide Track Square Skimmer

Hayward

9.25" Dark Gray Auto-Skim Wide Track Square Skimmer

Product #:HAY-25-1001

Mfg. Part #:SP10852OMTEDGR

EA

Description

Manufactured to Hayward’s uncompromising standards, these large capacity skimmers for vinyl and fiberglass applications install easily and perform flawlessly even in the most difficult environments. The bodies are molded out of durable ABS plastic and do not contain any assembly seams below water level. They feature a standard square or round cover and collar assembly allowing up to 1.5" vertical adjustment. Additional extension collar accessories are available to meet needs for all applications. The Auto-Skim Wide Track Series includes all of the same high quality features in addition to an expansive 15.5" skimmer face and a choice of two throat lengths. The enlarged opening and added installation flexibility allows for increased skimming action and reduced time for debris removal. Add optional float valve and equalizer kit with an NSF approved cover to any Auto-Skim model with a square cover to accommodate commercial requirements.

Feature Bullets

  • 1.5" and 2" port sizes for plumbing versatility
  • Standard cover and collar assembly with 1.5" vertical adjustment
  • Color options available
  • Integral Flo-Control slide plate
  • Optional float valve for thru skimmer suction outlet system
  • Optional extension collar allows 2.5" additional vertical height
  • Optional stackable notched extension collar allows infinite vertical adjustment
  • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • ApplicationPool
    • Shipping Dimensions21 x 20 x 21 inch
    • ChannelNone
    • ColorDark Gray
    • Each Product Weight20 pound
    • MaterialABS or acrylonitrile butadiene styrene
    • Minimum Sell Quantity1
    • Pallet Quantity16
    • Commercial, Residential, or ProfessionalResidential
    • For Use WithVinyl/Fiberglass Applications
    • Warranty - AdditionalParts - 1 year
    • UPC Code610377142700

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

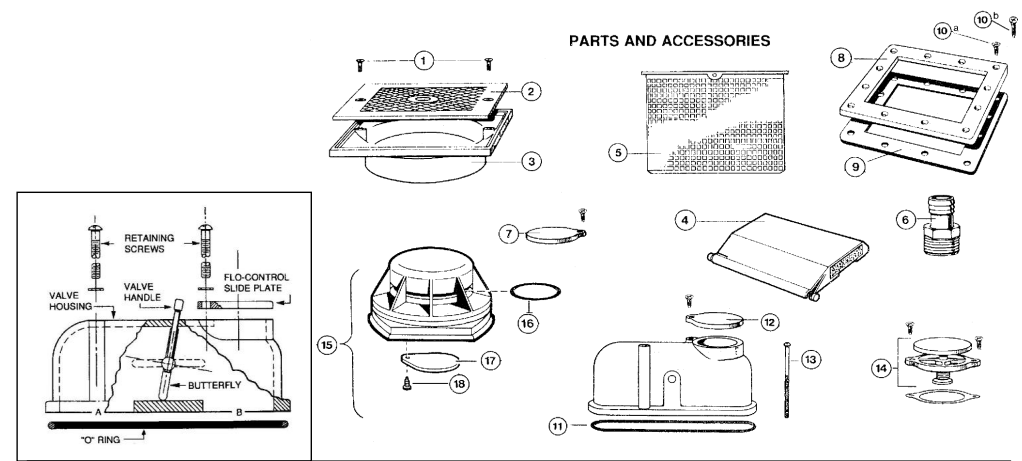

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    SPX1082Z1
    HAY-251-1919
    Product #: HAY-251-1919
    Mfg #: SPX1082Z1
    2
    2
    SPX1082E
    HAY-251-1913
    Product #: HAY-251-1913
    Mfg #: SPX1082E
    2
    2
    WGX1082E
    HAY-251-2001
    Product #: HAY-251-2001
    Mfg #: WGX1082E
    2
    2
    SPX1084R
    HAY-251-1929
    Product #: HAY-251-1929
    Mfg #: SPX1084R
    3
    3
    SPX1082F
    HAY-251-1914
    Product #: HAY-251-1914
    Mfg #: SPX1082F
    4
    4
    SPX1082K
    HAY-251-1917
    Product #: HAY-251-1917
    Mfg #: SPX1082K
    5
    5
    SPX1082CA
    HAY-251-1911
    Product #: HAY-251-1911
    Mfg #: SPX1082CA
    6
    6
    SPX1082Z3
    HAY-251-1921
    Product #: HAY-251-1921
    Mfg #: SPX1082Z3
    7
    7
    SPX1082H1
    Flo-Control Side Plate
    Product #:
    Mfg #: SPX1082H1
    8
    8
    SPX048L
    Face Plate (SP1084)
    Product #:
    Mfg #: SPX048L
    8a
    8a
    SPX1085B
    HAY-251-1934
    Product #: HAY-251-1934
    Mfg #: SPX1085B
    9
    9
    SPX1084B
    HAY-251-1923
    Gasket (SP1084)
    Product #: HAY-251-1923
    Mfg #: SPX1084B
    9
    9
    SPX085D
    Gasket (SP1085) Wide Track
    Product #:
    Mfg #: SPX085D
    10
    10
    SPX1084Z4
    Screw Set Containing 12 Short Flat Head Screws and 2 Pan Head Screws
    Product #:
    Mfg #: SPX1084Z4
    10
    10
    SPX1084Z4AM
    HAY-251-1931
    Product #: HAY-251-1931
    Mfg #: SPX1084Z4AM

    Wholegoods

    There are no wholegoods available.
