Brands
Hayward

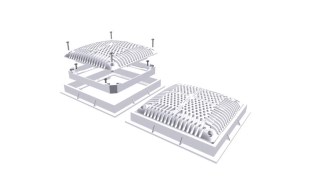

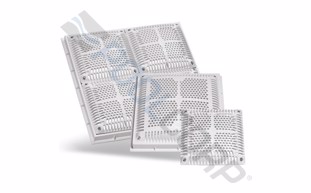

9" White Square High Flow Cover Inner and Outer Frame

Product #:HAY-25-1911

Mfg. Part #:WG1031HF2PAK2


Hayward 1K-WG1031HF2PAK 9" White Square High Flow Cover Inner and Outer Frame

Hayward

9" White Square High Flow Cover Inner and Outer Frame

Product #:HAY-25-1911

Mfg. Part #:WG1031HF2PAK2

Description

Hayward's High Flow suction outlets have some of the industry's highest approved flow rates for use in new construction or as a replacement cover. They also retrofit into all existing Hayward frames. VBG compliant and tested to ANSI/APSP-16 standards.

Documents

Feature Bullets

  • ASME approved flow rates
  • Retrofits to all Hayward existing frames
  • 7-Years lifetime Warranty
  • 1-Year limited warranty
  • All Hayward drain covers can be used as a single replacement cover when installed on the same suction line as an EcoStar(R) SVRS or a Stratum(R) SVRS

    • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • ColorWhite
    • Shipping Dimensions12.91 x 6.93 x 7.24 inch
    • Commercial, Residential, or ProfessionalCommercial, Residential
    • Cover Open Area23.96 square inch
    • Each Product Weight4.25 pound
    • Floor Flow Rate Measure A264 gal/min
    • For Use WithSuction Outlet Drains
    • Master Carton Quantity4
    • Minimum Sell Quantity1
    • Pallet Quantity128
    • Wall Flow Rate Measure A224 gal/min
    • For Use WithSuction Outlet Drains
    • UPC Code0610377144704
