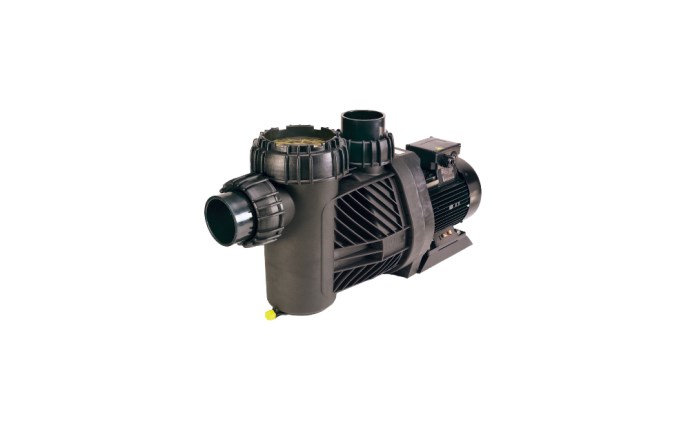

Speck Pumps IG264-1500M-000 94-VIII Self-Priming Pool Pump 5HP; 208-230V
Description
The Speck Model 94 self-priming pump offers commercial pool pump quality for use in fountains, large residential and small commercial applications. This pump is perfect for filter applications as well as water features. The Speck Model 94 continues to set standards for the future by using 100% recyclable "environment friendly" plastics.
Branch Availability
content loaded
Specifications
- BrandSPECK PUMPS
- ApplicationPool
- Shipping Dimensions35 x 13 x 21 inch
- ChannelNone
- ColorBlack
- Commercial, Residential, or ProfessionalCommercial, Residential
- Each Product Weight75 pound
- FinishStandard
- Green or Energy Efficient ProductTrue
- Horsepower5 horse power
- Master Carton Quantity1
- MaterialPlastic
- Minimum Sell Quantity1
- Pallet Quantity1
- PhaseSingle
- Voltage208V, 230V
- UPC Code026415000008
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

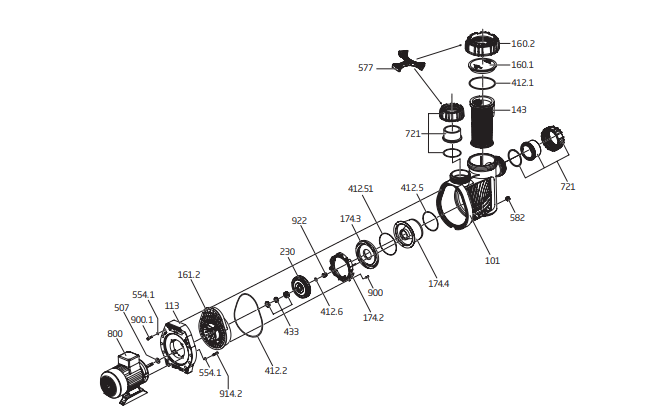

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
160.2
160.2
2921516022
Lock Ring - Lid
Product #:
Mfg #: 2921516022
Notes:
1 req.160.1
160.1
2921516012
Lid - Clear
Product #:
Mfg #: 2921516012
Notes:
1 req.412.1
412.1
2921541210
O-Ring - Lid 148 x 6.5mm
Product #:
Mfg #: 2921541210
Notes:
1 req.577
577
2902099800
Spanner - Lid, Unions
Product #:
Mfg #: 2902099800
Notes:
1 req.143
143
2921514302
Basket - One Piece
Product #:
Mfg #: 2921514302
Notes:
1 req.582
582
290115820
Drain Cap w/ Gasket - Casing
Product #:
Mfg #: 290115820
Notes:
1 req.101
101
2921510102
Casing
Product #:
Mfg #: 2921510102
Notes:
1 req.554.1
554.1
5871250800
Washer - Casing & Flange Bolt 8.4mm A4
Product #:
Mfg #: 5871250800
Notes:
18 req.412.5
412.5
2902041252
O-Ring - Diffuser 123 x 5mm
Product #:
Mfg #: 2902041252
Notes:
1 req.412.51
412.51
2902041251
O-Ring - Confusor 145 x 2.5mm
Product #:
Mfg #: 2902041251
Notes:
1 req.174.2
174.2
2902017425
SPK-101-3214
Product #: SPK-101-3214
Mfg #: 2902017425
Notes:
1 req.174.4
174.4
2902017421
Confusor for Diffuser
Product #:
Mfg #: 2902017421
Notes:
1 req.174.3
174.3
2902017424
Cover Disk - Diffuser
Product #:
Mfg #: 2902017424
Notes:
1 req.230
230
2902012812
Impeller (-VIII) - 5.0 HP S.F. 1.15 120 / 12.8mm
Product #:
Mfg #: 2902012812
Notes:
1 req.412.6
412.6
2923541229
SPK-101-1420
O-Ring - Shaft 16.9 x 2.75mm
Product #: SPK-101-1420
Mfg #: 2923541229
Notes:
1 req.Wholegoods
There are no wholegoods available.
