Acura Spa Systems 2 Speed Spa Pump 1 Phase 3HP 230V
Product #:ASY-10-1009
Mfg. Part #:AE23020
- This product is obsolete.
- The superceded product was not found.
Acura Spa Systems AE23020 2-Speed Spa Pump; 1-Phase, 230 V, 10.5/2.6 A, 3 HP
Acura Spa Systems 2 Speed Spa Pump 1 Phase 3HP 230V
Product #:ASY-10-1009
Mfg. Part #:AE23020
Description
Acura Spa Systems 2 Speed Spa Pump 1 Phase 3HP 230V
Documents
Branch Availability
content loaded
Specifications
- Amps High Speed10.5
- Amps Low Speed2.6
- Each Product Weight22 pound
- Flow Rate Max108 gal/min
- Flow Rate Min108 gal/min
- Frequency Rating (Hz)60
- Horsepower3 horse power
- Master Carton Quantity1
- Minimum Sell Quantity1
- Motor Speed2-Speed
- Pallet Quantity1
- PhaseSingle
- RPMs Max3450
- RPMs Min1725
- Voltage230V

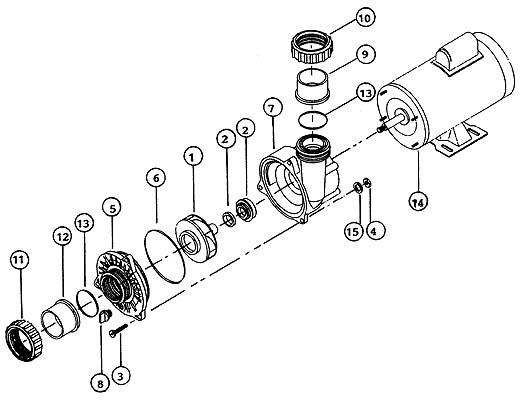

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
01
01
799-A
Impeller for AE11575
Product #:
Mfg #: 799-A
01
01
800-A
ASY-10-1000
800-A 1HP MAVERICK AE11510 IMPELLER
Product #: ASY-10-1000
Mfg #: 800-A
01
01
810-A
ASY-10-1001
810-A 1.5HP MAVERICK AE23015 IMPELLER
Product #: ASY-10-1001
Mfg #: 810-A
01
01
820-A
ASY-10-1002
820-A 2HP MAVERICK AE SERIES IMPELLER
Product #: ASY-10-1002
Mfg #: 820-A
02
02
1092-A
Standard Pump Shaft Seal
Product #:
Mfg #: 1092-A
02
02
1092-P
Pump Shaft Seal with Elastomer covered Spring (optional)
Product #:
Mfg #: 1092-P
02
02
1092-S
Special Pump Shaft Seal- Chemical Corrosion Resistant (optional)
Product #:
Mfg #: 1092-S
-
-
1110-A
Volute- Faceplate
Product #:
Mfg #: 1110-A
Notes:
Includes 5,7-
-
1110-A10
Spa Pump: Volute- Faceplate- O-Ring- Pump Shaft Seal and 800-A Impeller for AE11510- AE11510-1 or AE11510-1SS (Motor NOT included)
Product #:
Mfg #: 1110-A10
Notes:
Includes 1,2,5,6,7-
-
1110-A15
Spa Pump: Volute- Faceplate- O-Ring- Pump Shaft Seal and 810-A Impeller for AE11515- AE23015 or AE23015-1 (Motor NOT included)
Product #:
Mfg #: 1110-A15
Notes:
Includes 1,2,5,6,7-
-
1110-A20
Spa Pump: Volute- Faceplate- O-Ring- Pump Shaft Seal and 820-A Impeller for AE11520- AE23020- AE23020-1 or AE23020-50HZ (Motor NOT included)
Product #:
Mfg #: 1110-A20
Notes:
Includes 1,2,5,6,7-
-
1110-A75
Spa Pump: Volute- Faceplate- O-Ring- Pump Shaft Seal and 799-A Impeller for AE11575-1- AE11575-1SS- AC11575-1 or AC23075-1 (Motor NOT included)
Product #:
Mfg #: 1110-A75
Notes:
Includes 1,2,5,6,706
06
1060-A
Maverick Large O-Ring
Product #:
Mfg #: 1060-A
08
08
796
Drain Plug
Product #:
Mfg #: 796
-
-
1660
Intake Union (with O-Ring)
Product #:
Mfg #: 1660
Notes:
Includes 11,12,13Wholegoods
There are no wholegoods available.
