Century

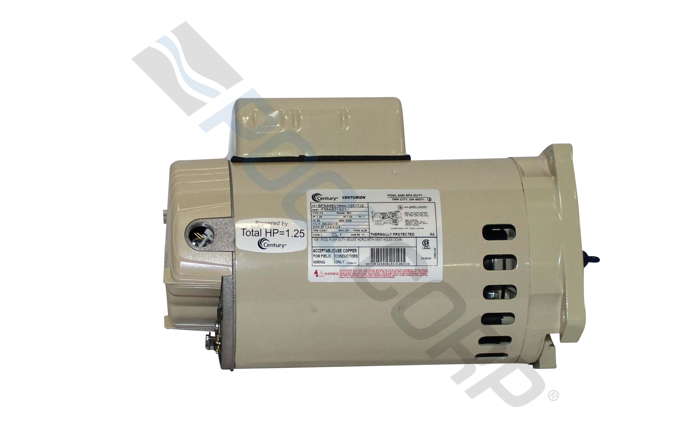

Almond Century Frame Square Flange ODP Motor 115/230V .75 HP
Product #:MGT-60-1449
Mfg. Part #:BPA449V1
Century® BPA449V1 Motor; 0.75 HP, 3450 RPM, 115/208-230 V, 56Y Square Flange, Almond
Century
Almond Century Frame Square Flange ODP Motor 115/230V .75 HP
Product #:MGT-60-1449
Mfg. Part #:BPA449V1
EA
Description
Century(R) AC Motor, CX-Type, Motor Design: PSC, Open Dripproof Enclosure, 0.75 HP, 1.25 THP, 3450 RPM, 56Y Frame, Voltage Rating: 115/208-230 V, 7-6.4/12.8 A, Frequency Rating: 60 Hz, 1-Phase, Motor Thermal Protection: Auto, Insulation Class: F, 1.00 Service Factor, Ball Bearing, Ambient Temperature: 50 deg C, CCWPE Shaft Rotation, Shaft Diameter: 5/8 Inch, Shaft Length: 3/4 Inch, Overall Length: 13.13 Inch, 6-1/2 Inch Diameter, Continuous Duty, Square Flange, Shaft Material: 303 Stainless Steel, Almond
Documents
Branch Availability
content loaded
Specifications
- BrandCentury
- Ambient Temperature50 degrees Celsius
- Shipping Dimensions20 x 11 x 9.5 inch
- Amps High Speed12.8
- Amps Low Speed7
- Bearing TypeBall
- Duty CycleContinuous
- Each Product Weight29.55 pound
- Frequency Rating (Hz)60
- Horsepower0.75 horse power
- Insulation ClassF
- Master Carton Quantity1
- Minimum Sell Quantity1
- Motor Enclosure TypeOpen Drip Proof
- Motor Shaft RotationCounterclockwise Pulley End
- Motor Thermal ProtectionAutomatic Reset
- Pallet Quantity30
- PhaseSingle
- RPMs Max3450
- RPMs Min3450
- Service Factor1
- Shaft Diameter0.625 inch
- Shaft Length0.75 inch
- Shaft Material303 Stainless Steel
- Standards ApprovalsCSA Certified
- Voltage115V, 208V, 230V
- ChannelNone
- Diameter6.5 inch
- Flange TypeSquare
- Green or Energy Efficient ProductTrue
- Thrust HP1.25
- UPC Code786674070326
