- This product is obsolete.
- The superceded product was not found.

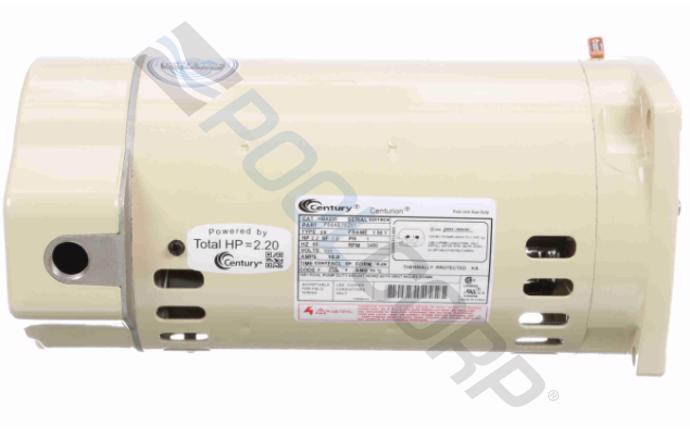

Century® Centurion® Pro HBA220 Pool and Spa Pump Motor; 2.2HP, 230V, Y56YFR, Square Flange, Almond
Description
Almond Square Flange Centurion Pro Motor comes with long lasting with Triple Seal™ protection to prevent water and debris intrusion. Choose this pump for fast and easy installation with the open and accessible terminal board and wiring compartment.
Documents
Branch Availability
content loaded
Specifications
- BrandCentury
- Ambient Temperature50 degrees Celsius
- Shipping Dimensions15.98 x 9.13 x 9.13 inch
- Amps High Speed10
- Amps Low Speed10
- ApplicationPool
- Bearing TypeSealed Ball
- Duty CycleContinuous
- Each Product Weight21 pound
- Frequency Rating (Hz)60
- Horsepower2.2 horse power
- Insulation ClassF
- Minimum Sell Quantity1
- Motor Enclosure TypeOpen Drip Proof
- Motor Frame Size56Y
- Motor Shaft RotationCounterclockwise Pulley End
- Pallet Quantity40
- PhaseSingle
- RPMs Max3450
- RPMs Min3450
- Service Factor1
- Shaft Design1/2 Threaded
- Shaft Diameter0.625
- Voltage230V
- ChannelNone
- Commercial, Residential, or ProfessionalResidential
- Flange TypeSquare
- Frame MaterialRolled Steel
