Jandy AquaPure APURE35 Ei Series Electronic Salt Chlorinator 35K gal
Description
APURE35 AquaPure® Ei™ Electronic Salt Water Chlorine Generator from Zodiac is an eco-friendly option for sparkling and clean water. It is compact, easy-to-install, and for pools with a capacity of 35,000 gallons.
Documents
Branch Availability
content loaded
Specifications
- BrandJandy
- Each Product Weight14.3 pound
- Shipping Dimensions20.5 x 14.75 x 9.25 inch
- Flow Rate Max92 gal/min
- Flow Rate Min40 gal/min
- Master Carton Quantity1
- Minimum Sell Quantity1
- Pallet Quantity20
- Pool Size Max35000 gallon
- Pool Size Min35000 gallon
- Pressure Rating Max50 pounds per square inch
- Pressure Rating Min50 pounds per square inch
- Salinity Range Max4000 parts per million
- Salinity Range Min4000 parts per million
- UPC Code052337052382
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

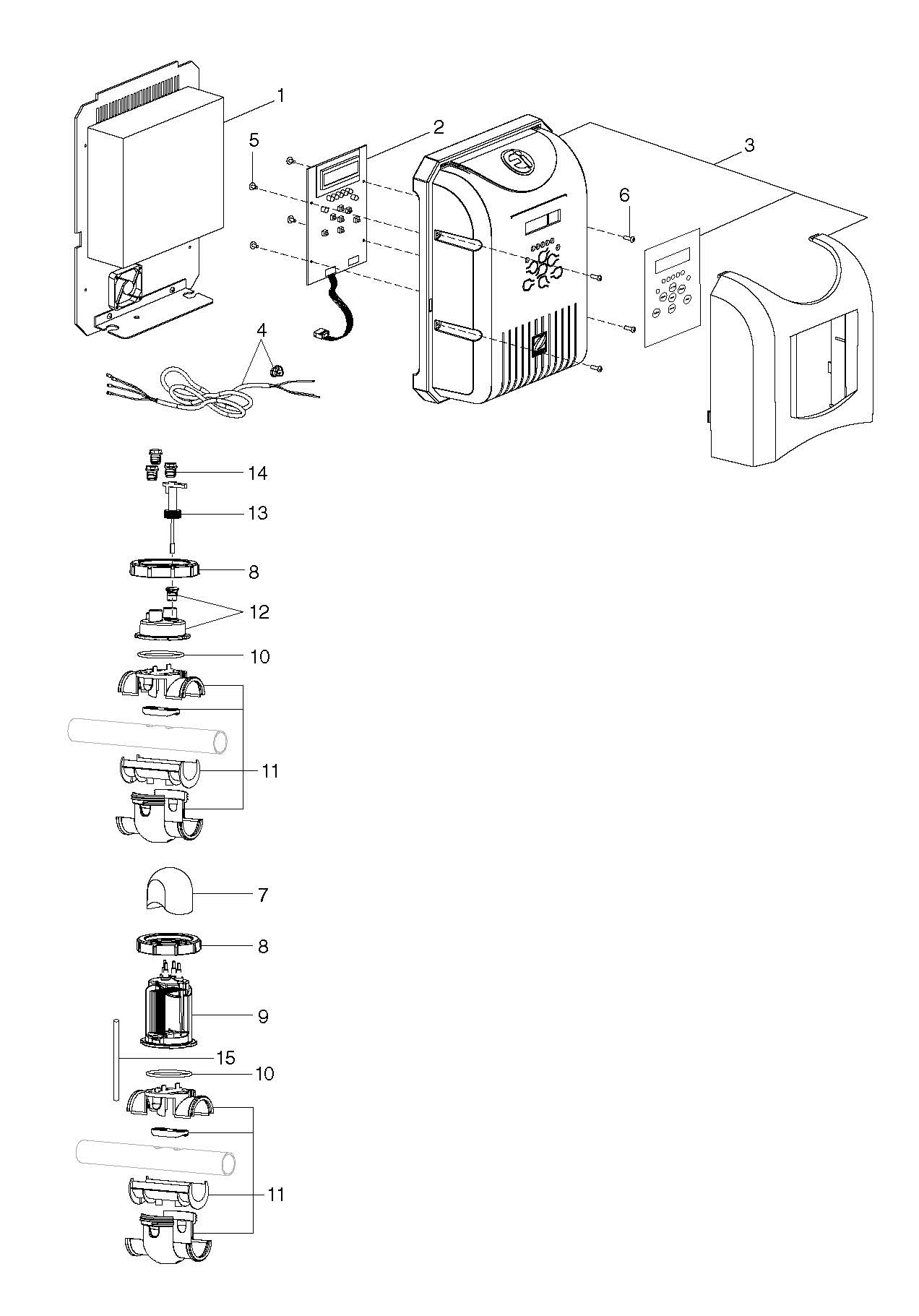

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
R0512100
JDY-451-2100
Product #: JDY-451-2100
Mfg #: R0512100
2
2
R0512300
JDY-451-5026
Product #: JDY-451-5026
Mfg #: R0512300
3
3
R0512400
JDY-451-5021
R0512400 AQUAPURE EI COVER ASSY
Product #: JDY-451-5021
Mfg #: R0512400
4
4
R0512500
JDY-451-5020
R0512500 OUTPUT CABLE ASSY R KIT
Product #: JDY-451-5020
Mfg #: R0512500
5
5
R0512800
PCB Mtg Screws #4 x 1/4
Product #:
Mfg #: R0512800
6
6
R0512900
Set Screw M3 x 12mm
Product #:
Mfg #: R0512900
7
7
R0511200
JDY-451-9820
R0511200 AQUAPURE EI CHLOR TERMINAL CAP
Product #: JDY-451-9820
Mfg #: R0511200
8
8
R0511300
JDY-451-9830
R0511300 AQUAPURE EI CHLOR LOCKING RING
Product #: JDY-451-9830
Mfg #: R0511300
8
9
9
R0511400
JDY-451-9810
Product #: JDY-451-9810
Mfg #: R0511400
10
10
11
11
R0511700
JDY-451-9870
R0511700 SADDLE CLAMP ASSY W/ ORING
Product #: JDY-451-9870
Mfg #: R0511700
11
11
