Rheem

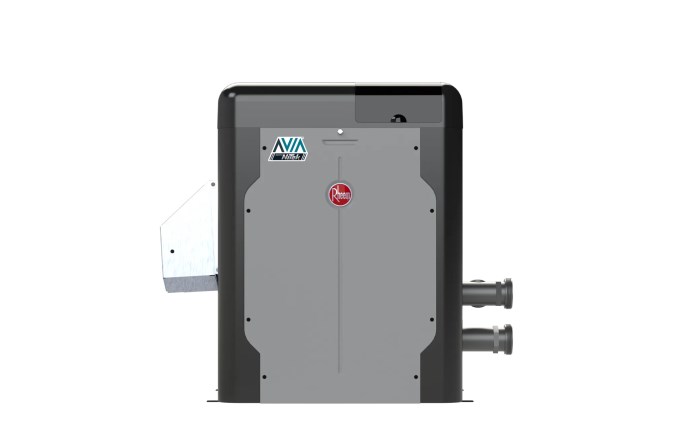

Avia 404B Propane Digital Heater with Copper Heat Exchanger 399K BTU
Product #:RAY-15-1036
Mfg. Part #:100-10008678
Rheem Avia 100-10008678 404B Propane Digital Heater with Copper Heat Exchanger 399K BTU; 0'-4500'
Rheem
Avia 404B Propane Digital Heater with Copper Heat Exchanger 399K BTU
Product #:RAY-15-1036
Mfg. Part #:100-10008678
EA
Description
Managing your pool heater has never been easier or smarter. AVIA is built with an innovative Wi-Fi enabled control system that allows you to manage your pool heater with one accessory through the Raymote app – so no need for a separate control panel to manage your pool heater.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandRheem
- ApplicationPool, Spa
- Shipping Dimensions38 x 26 x 34 inch
- BTU Input399000 British thermal unit
- Cabinet Depth29 inch
- Cabinet Height30.38 inch
- Cabinet Width16.92 inch
- ChannelNone
- ColorGray, Black
- Commercial, Residential, or ProfessionalCommercial
- Each Product Weight135 pound
- Flow Rate Max100 gal/min
- Flow Rate Min40 gal/min
- Fuel TypePropane
- Heater ColorGray, Black
- Ignition TypeElectronic
- Minimum Sell Quantity1
- Pallet Quantity4
- PhaseSingle
- Thermal Efficiency84
- Voltage120V, 240V
- Warranty - General3 years
- UPC Code662021936845

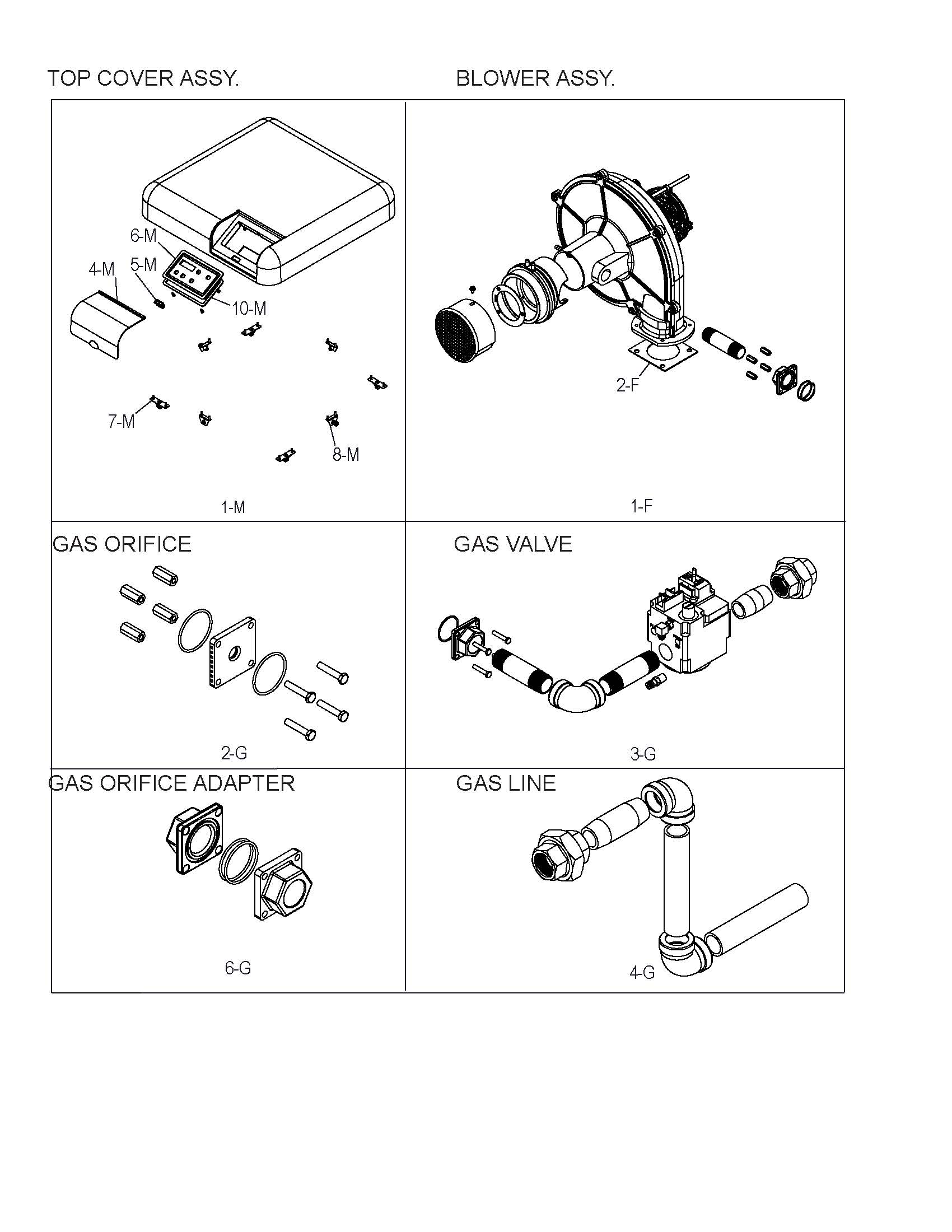

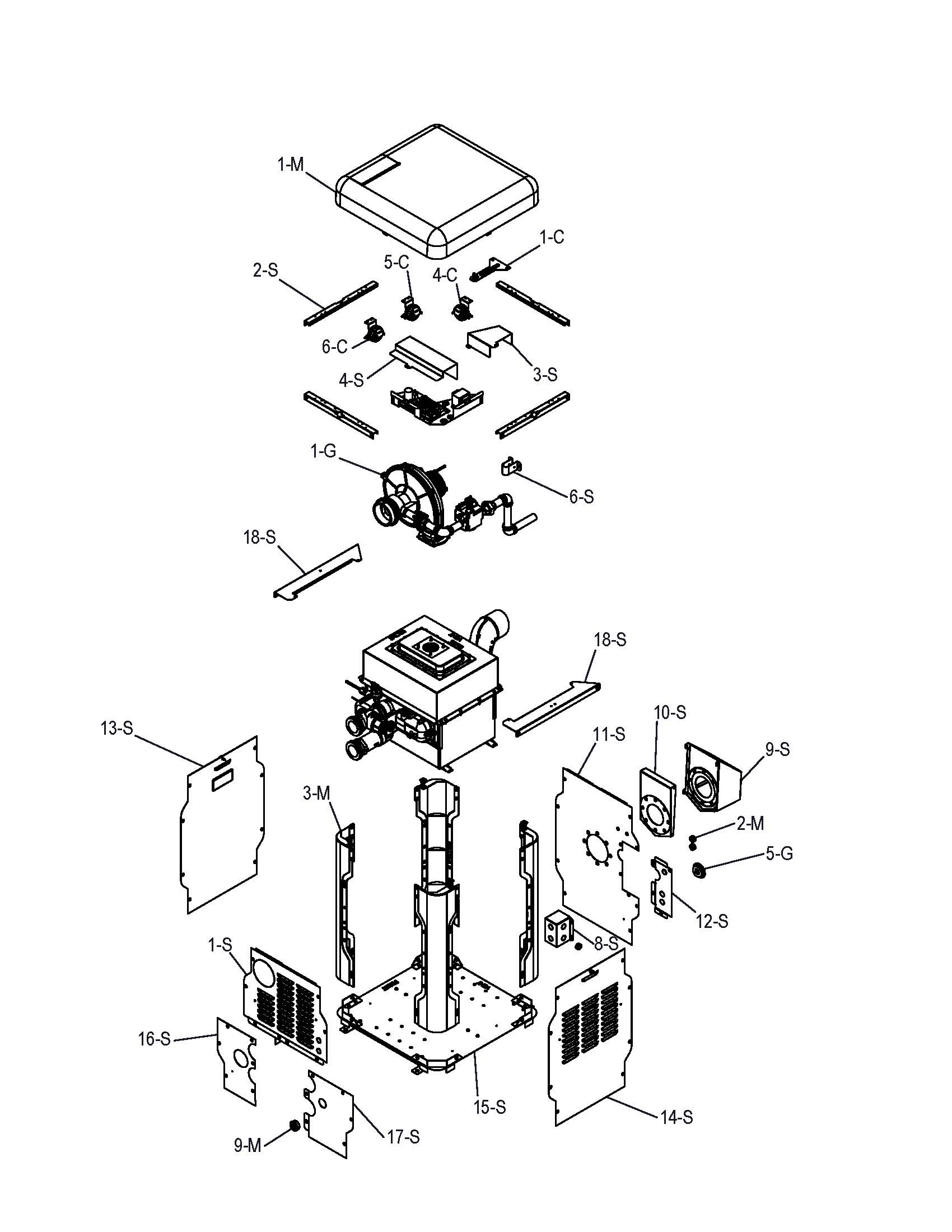

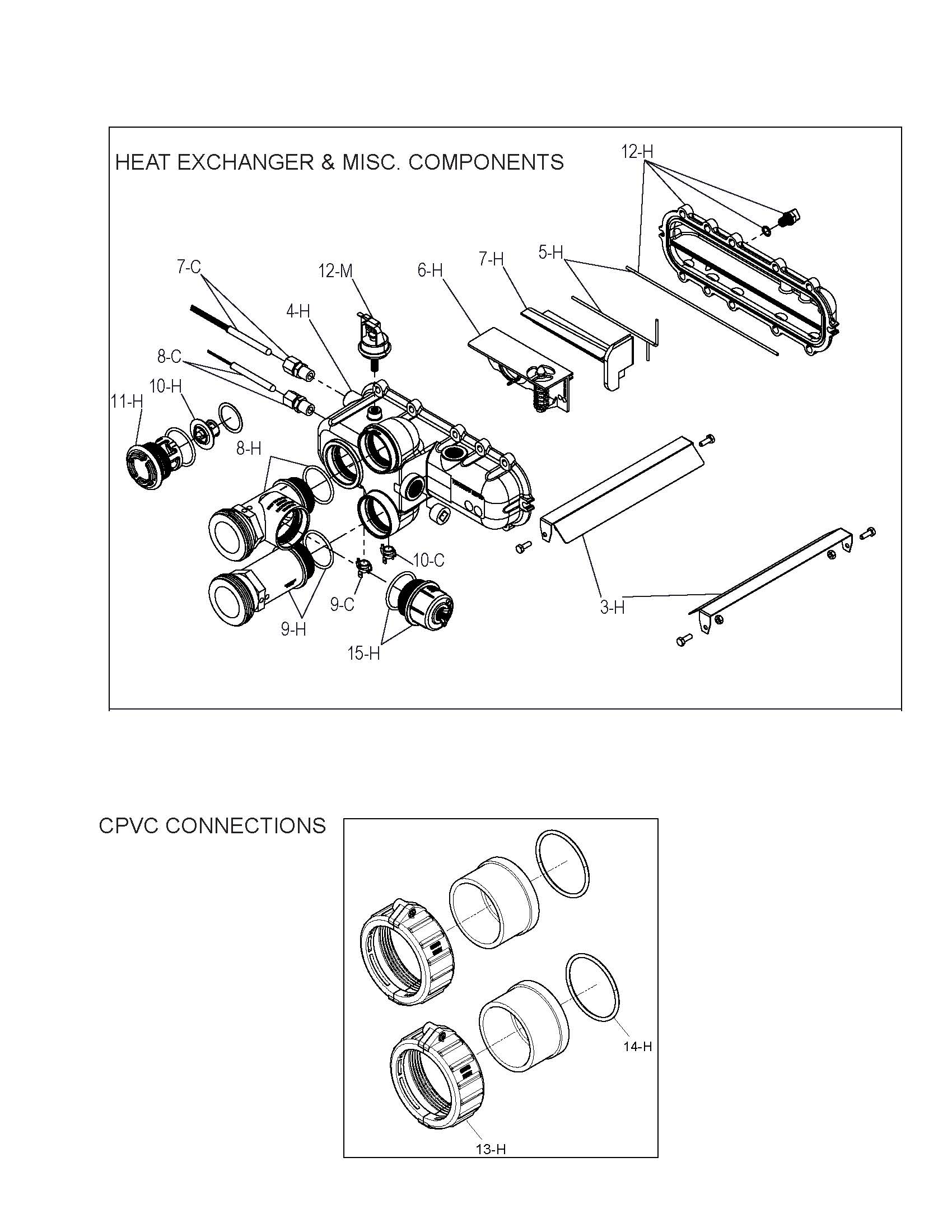

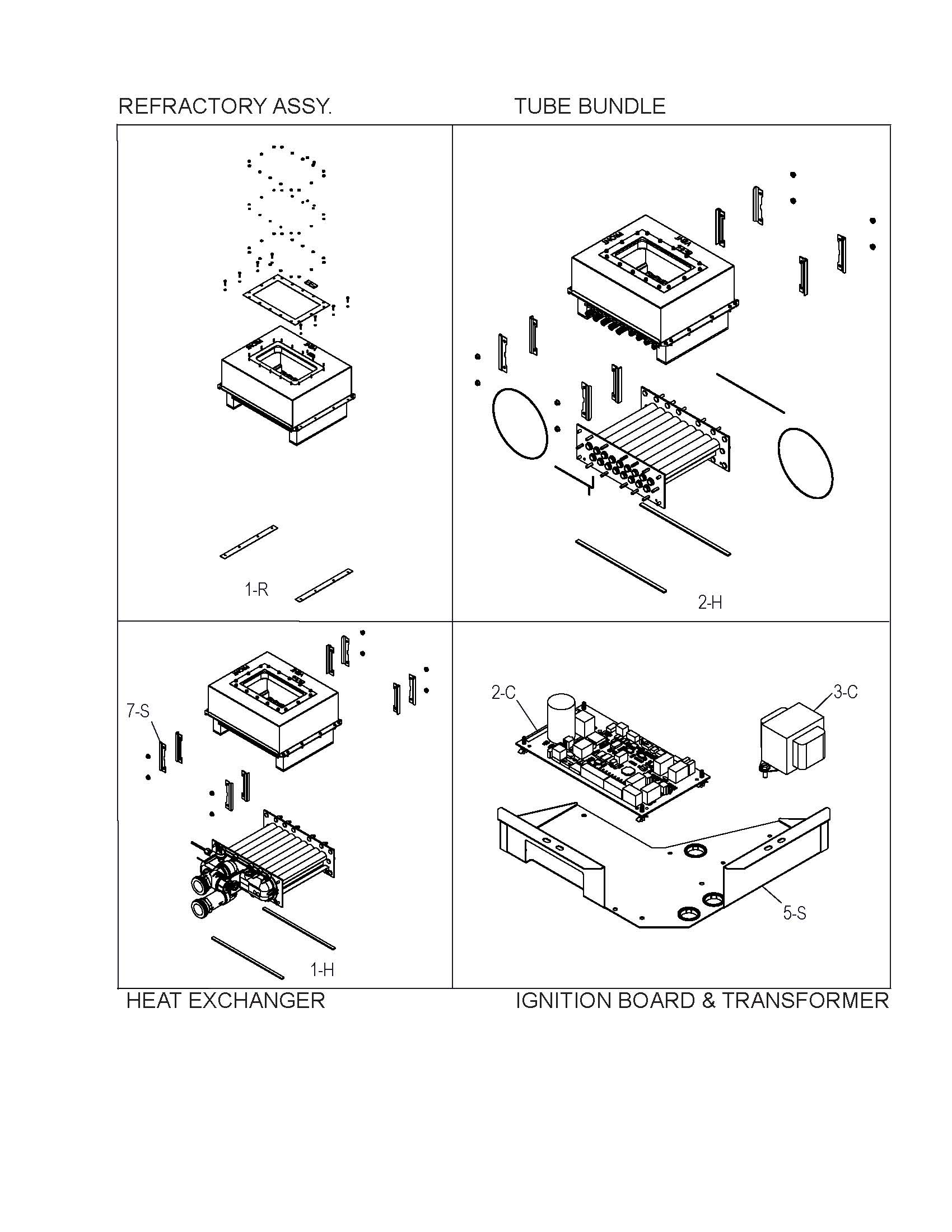

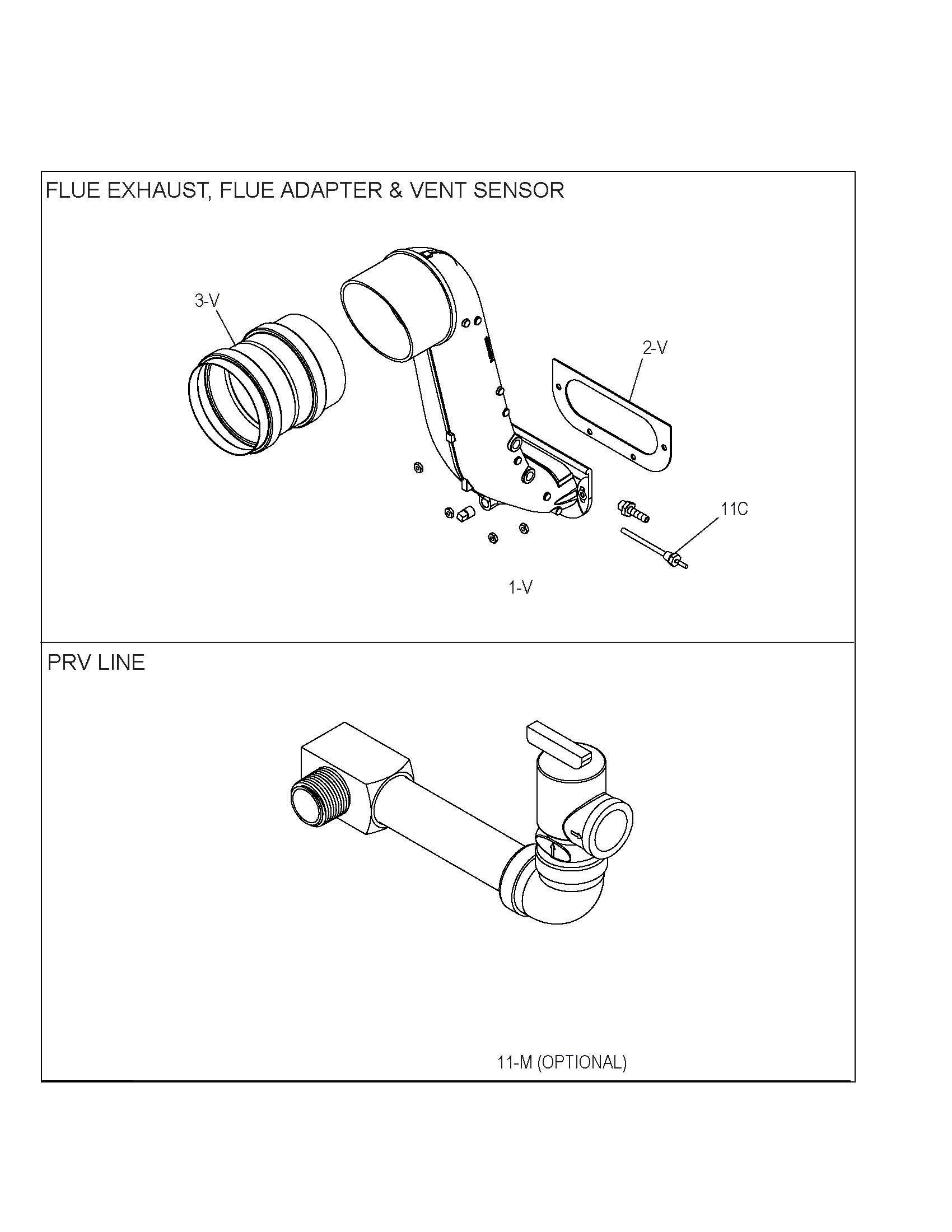

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes

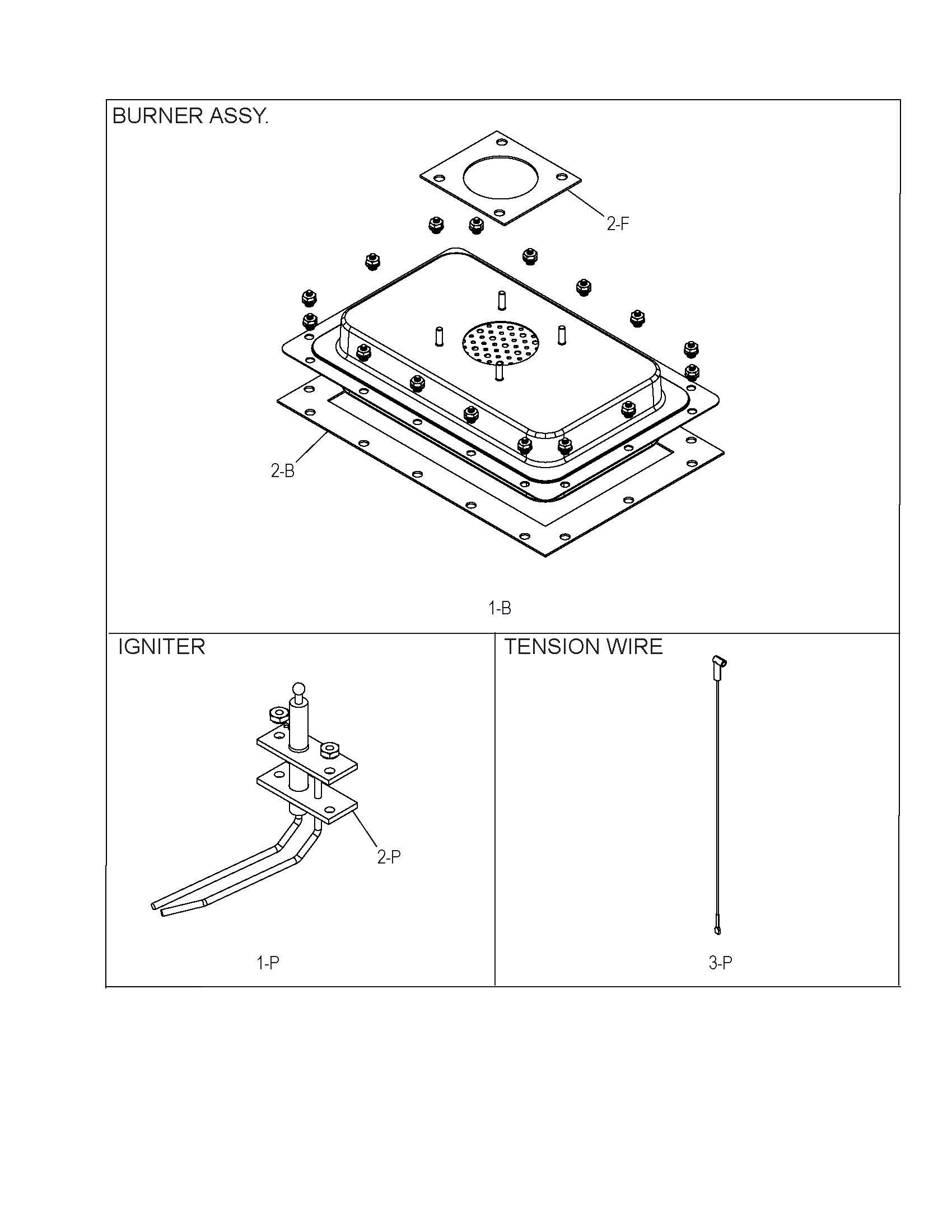

1-B
1-B
018873F
Kit-Burner
Product #:
Mfg #: 018873F
2-B
1-C
2-C
3-C
4-C
5-C
6-C
7-C
7-C
009577F
RAY-151-1208
Product #: RAY-151-1208
Mfg #: 009577F
8-C
9-C
10-C
11-C
12-C
12-C
014126F
RAY-151-1910
Product #: RAY-151-1910
Mfg #: 014126F
Notes:
Not Shown13-C
Wholegoods
There are no wholegoods available.
