Pentair

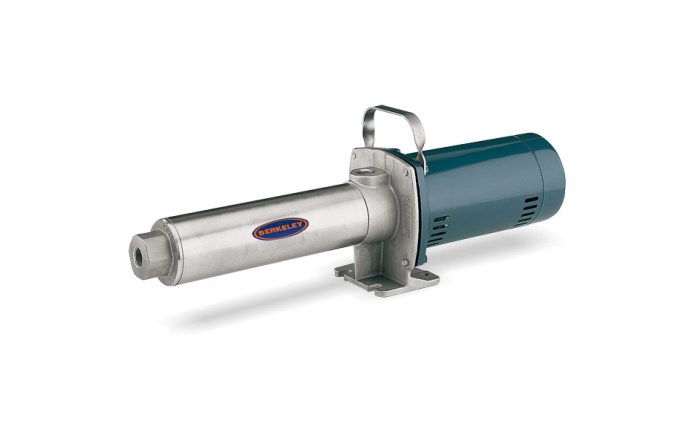

Berkeley MGPS Series High Pressure Booster Pump 1 HP 115/230V
Product #:STA-101-8010
Mfg. Part #:MGPS7E
Pentair Berkeley MGPS7E MGPS Series High Pressure Booster Pump 1 HP 115/230V
Pentair
Berkeley MGPS Series High Pressure Booster Pump 1 HP 115/230V
Product #:STA-101-8010
Mfg. Part #:MGPS7E
EA
Description
Pentair Berkeley MGPS7E MGPS Series High Pressure Booster Pump 1 HP 115/230V. The MGP/MGPS Booster Pumps are the most durable booster pump available. The proven SignaSeal floating impeller design minimizes thrust loads, allowing for continuous operation without damage to motor bearings, mechanical seal or pump hydraulic components. Applications include: Residential, commercial or agricultural pressure washing, Booster and spray systems, Filtration and reverse osmosis, HVAC, and General purpose pumping
Branch Availability
content loaded
Specifications
- BrandPentair
- ApplicationOutdoor
- Shipping Dimensions37.31 x 9.19 x 12.56 inch
- Each Product Weight48 pound
- Max Working Pressure315 pounds per square inch
- Minimum Sell Quantity1
- Temperature Rating Max140
- Mechanical Seal MaterialBuna, Carbon, Ceramic
- UPC Code022315323940
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

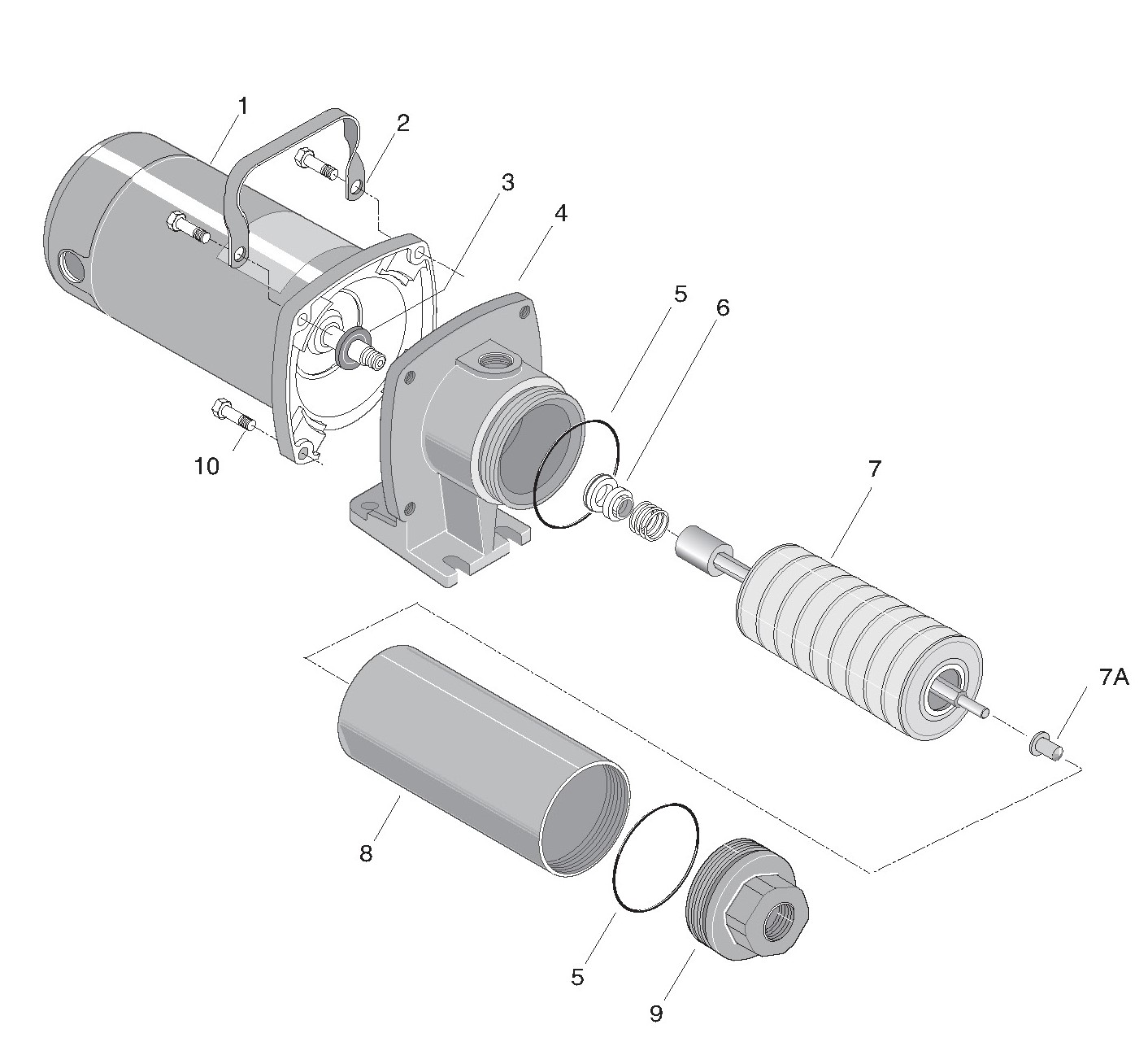

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
J218-1655
Motor - 1 phase
Product #:
Mfg #: J218-1655
1
1
AP100EH
Motor - 3 phase
Product #:
Mfg #: AP100EH
2
2
C54-21
Handle
Product #:
Mfg #: C54-21
Notes:
Does not come standard with pumps3
4
4
C2-85
Pump Body - HP7, HP10 Series
Product #:
Mfg #: C2-85
4
4
C2-86SS
Pump Body - HPS7, HPS10 Series
Product #:
Mfg #: C2-86SS
4
4
C2-85A
Pump Body - HP20 Series
Product #:
Mfg #: C2-85A
4
4
C2-86SSA
Pump Body - HPS20 Series
Product #:
Mfg #: C2-86SSA
4
4
C2-85B
Pump Body - HP30 Series
Product #:
Mfg #: C2-85B
4
4
C2-86SSB
Pump Body - HPS30 Series
Product #:
Mfg #: C2-86SSB
5
5
U9-430
O-Ring
Product #:
Mfg #: U9-430
Notes:
2 Required6
6
U109-118
STA-101-1249
Shaft Seal Assembly
Product #: STA-101-1249
Mfg #: U109-118
7
7
P325-424R
Pump Stack - 7GPM
Product #:
Mfg #: P325-424R
7
7
P325-439R
Pump Stack - 10GPM
Product #:
Mfg #: P325-439R
7
7
P325-602R
Pump Stack - 20GPM
Product #:
Mfg #: P325-602R
Wholegoods
There are no wholegoods available.
