Little Giant

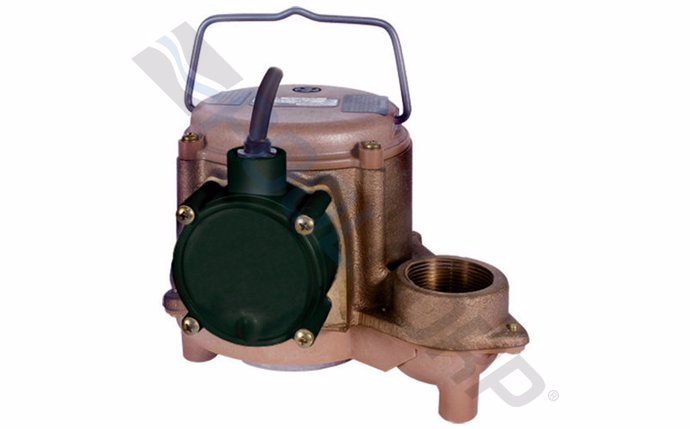

Big John Pump with 10' Cord 4/10HP 115V

Product #:LGP-10-7006

Mfg. Part #:508257

*Non-Stocking item: additional charges may apply

Franklin Electric 508257 8-CBM Little Giant Submersible Sump Pump; 4/10 HP, 830 W, 115 V, 17 A, 60 Hz, 10 ft Cord, 54 gpm

Branch Availability

content loaded

Specifications

  • BrandLittle Giant
  • Amps High Speed17
  • Amps Low Speed17
  • Cord Length10 foot
  • Each Product Weight19.65 pound
  • Frequency Rating (Hz)60
  • Horsepower4 horse power
  • Master Carton Quantity4
  • MaterialBronze, Carbon, Cast Iron, Ceramic, Rolled Steel, Polypropylene or polypropene, Stainless Steel
  • Max Liquid Temperature140 degrees Fahrenheit
  • Max Working Pressure9.9 pounds per square inch
  • Power Rating830 watt
  • Shut Off22.9 foot
  • Voltage115V
  • UPC Code0010121082571

WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

Parts & Schematics

content loaded
LegendMfg #Product #DescriptionNotes
01108101LGP-101-5727#6 & #8 HOUSING
01108101LGP-101-5727#6 & #8 HOUSING
02928004LGP-101-6113BIG JOHN SUMP PUMP VOLUTE SEAL RING
03108028Pump Base
03108033Pump Base
03106079LGP-101-6079BLACK 6 SERIES VOLUTE
03108033Pump Base
03106181LGP-101-6181BIG JOHN SUMP PUMP VOLUTE
06951240Wiring Harness Assembly- With Tube- 10�
04909009LGP-101-5745909009 SCREW/ WASHER
04909021LGP-101-5215#10-24x.5" SCREW/ WASHER
06951548Wiring Harness Assembly- 10�
05108082LGP-101-5182SUMP PUMP INTAKE SCREEN
06951550Wiring Harness Assembly- 25�
06951563Wiring Harness Assembly- With Tube- 25�
