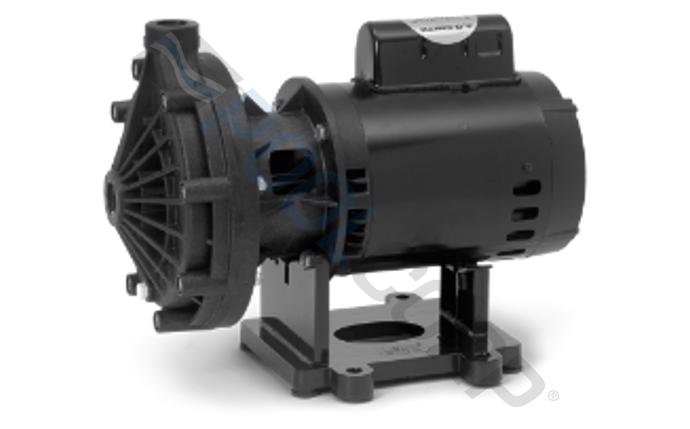

Pentair EC-LA01N Booster Pump 3/4HP 115/230V
EA
Description
The Booster Pump combines ultimate performance with efficiency for pressure-side pool cleaner ease. The 3/4HP Booster Pump is made from durable, corrosion-proof materials, and provides 50 psi at 12 GPM.
Branch Availability
content loaded
Specifications
- BrandPentair
- Amps High Speed13
- Shipping Dimensions16 x 9.25 x 10 inch
- Amps Low Speed6.5
- ApplicationPool
- ChannelNone
- ColorBlack
- Each Product Weight32 pound
- Frequency Rating (Hz)60
- Horsepower0.75 horse power
- IncludesHose and adapters
- Minimum Sell Quantity1
- Pallet Quantity24
- Port Size 10.75 inch
- Port Size 1 FITNPT
- Product Height11.5 inch
- Product Width9 inch
- Service Factor1.5
- Service Factor HP1.13
- Voltage115V, 230V
- Warranty - General1 years
- UPC Code788379500245
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

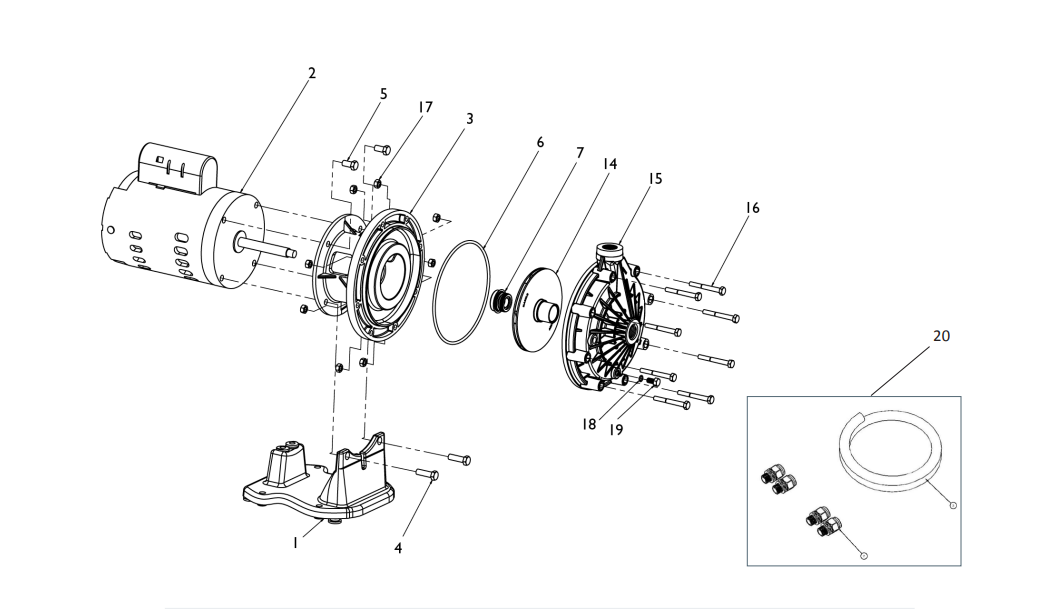

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
2
2
LA10NS
LET-201-1000
Motor, 230/115 V, 1 ph, 60 hz, 6.5/13 A
Product #: LET-201-1000
Mfg #: LA10NS
3
4
4
LA136
Bolt 3/8-16 x 1-1/4 in., 2 req.
Product #:
Mfg #: LA136
5
5
LA135
Bolt 3/8-16 x 3/4 in., 2 req.
Product #:
Mfg #: LA135
6
7
7
071734S
PUR-101-1734
Product #: PUR-101-1734
Mfg #: 071734S
14
14
15
16
17
17
LA125
PAC-101-1107
Nut
Product #: PAC-101-1107
Mfg #: LA125
18
19
20
Wholegoods
There are no wholegoods available.
