Pentair

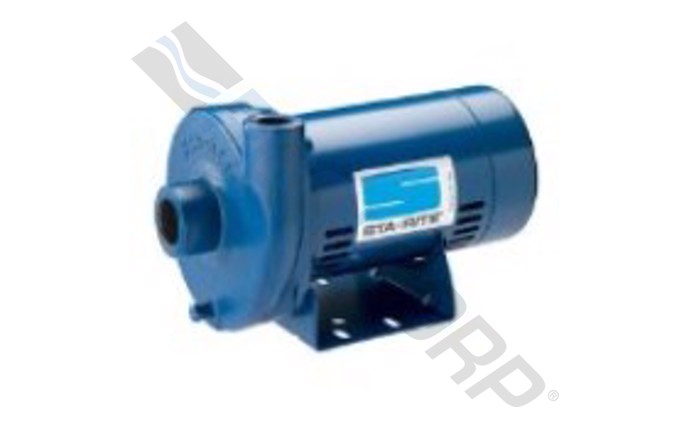

Cast Iron Centrifugal Pump and Motor Assembly 1HP 115/230V
Product #:STA-10-389
Mfg. Part #:JBHE-63S
- This product is obsolete.
- The superceded product was not found.
Pentair StaRite JBHE-63S 1Cast Iron Centrifugal Pump and Motor Assembly 1HP 115 / 230V 1 Ph
Pentair
Cast Iron Centrifugal Pump and Motor Assembly 1HP 115/230V
Product #:STA-10-389
Mfg. Part #:JBHE-63S
Description
Pentair StaRite JBHE-63S 1Cast Iron Centrifugal Pump and Motor Assembly 1HP 115 / 230V 1 Ph is part of the J Series with Noryl impeller is abrasion-resistant for normal applications with working temperatures to 140 degrees Fahrenheit. The JB series includes a silicon bronze impeller and viton seal for higher heat capacities.
Branch Availability
content loaded
Specifications
- BrandPentair
- ApplicationInground, Pool, Spa
- Commercial, Residential, or ProfessionalResidential
- Each Product Weight38 pound
- Horsepower1 horse power
- Master Carton Quantity1
- MaterialCast Iron
- Minimum Sell Quantity1
- Pallet Quantity1
- PhaseSingle
- Voltage115V, 230V
- UPC Code022315144330
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

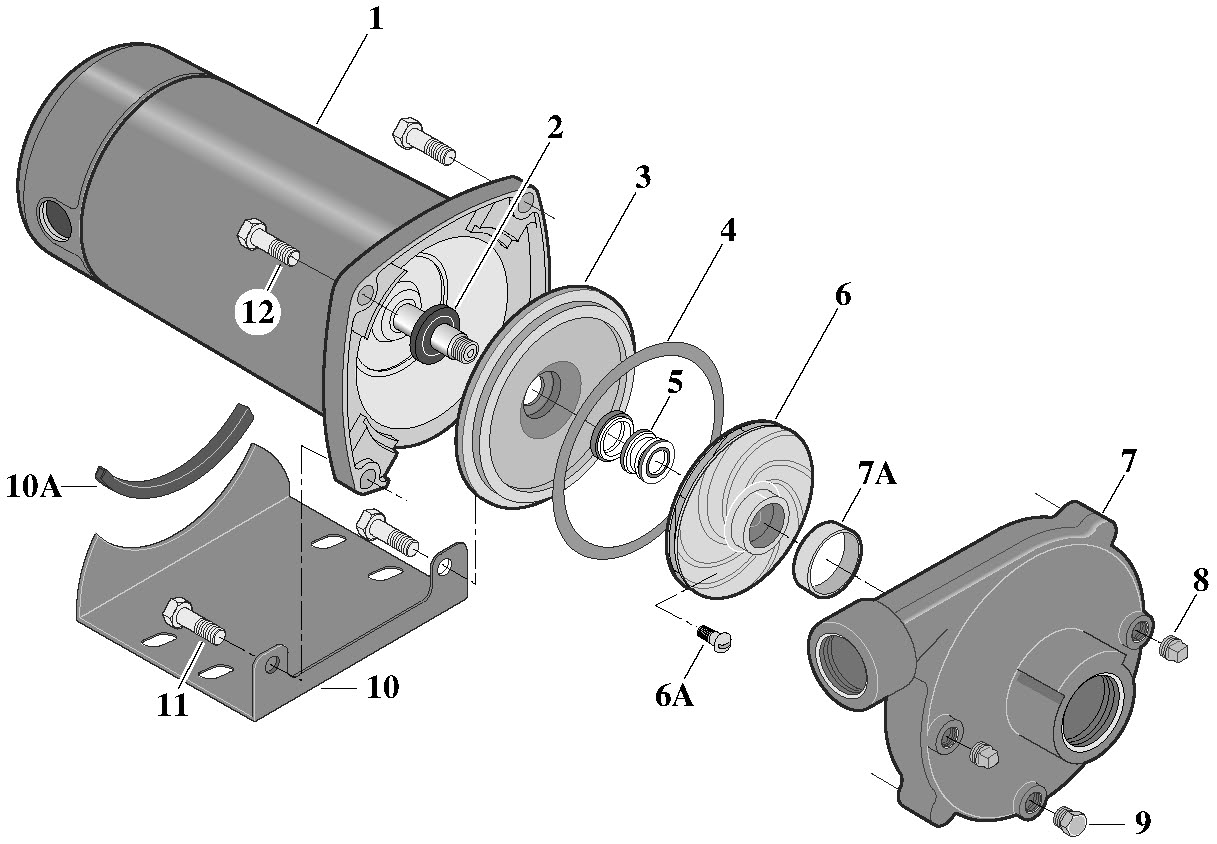

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
J218-596PKG
Motor, 115/230V, 1 Phase
Product #:
Mfg #: J218-596PKG
2
3
3
C3-178
STA-101-0688
Seal Plate
Product #: STA-101-0688
Mfg #: C3-178
4
4
C20-121C
Gasket, Seal Plate
Product #:
Mfg #: C20-121C
5
5
U109-6A
Shaft Seal
Product #:
Mfg #: U109-6A
6
6
C5-254BA
Impeller, Single Phase
Product #:
Mfg #: C5-254BA
6A
7
7
C101-284A
STA-101-1340
Volute Assembly with Wear Ring
Product #: STA-101-1340
Mfg #: C101-284A
7A
7A
C23-27
STA-101-0567
Wear Ring
Product #: STA-101-0567
Mfg #: C23-27
8
8
U78-941ZPV
STA-101-0530
Pipe Plug, 1/4" NPT Hex Hd.
Product #: STA-101-0530
Mfg #: U78-941ZPV
10
10
J104-9
Base with Motor Pad
Product #:
Mfg #: J104-9
10A
10A
C35-5S
Motor Pad
Product #:
Mfg #: C35-5S
12
12
U30-75ZP
STA-101-0536
Hex Capscrew, 3/8" - 16 x 1-1/4" Lg.
Product #: STA-101-0536
Mfg #: U30-75ZP
