National Diversified Sales

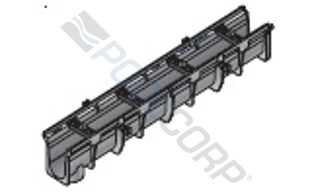

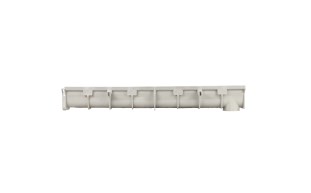

Dura Slope 6" x 4' x 6.4" Light Gray Channel Drain, 4.7" to 5.00 Invert Depth

Product #:NDS-58-1636

Mfg. Part #:DS-093


National Diversified Sales Dura Slope DS-093 6" x 4' x 6.4" Light Gray Channel Drain, 4.7" to 5.00 Invert Depth

National Diversified Sales

Dura Slope 6" x 4' x 6.4" Light Gray Channel Drain, 4.7" to 5.00 Invert Depth

Product #:NDS-58-1636

Mfg. Part #:DS-093

Description

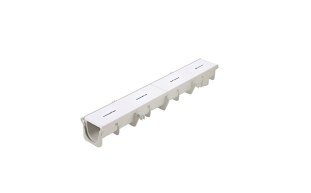

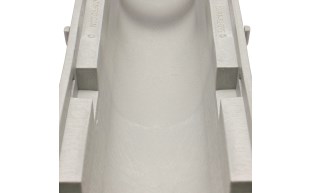

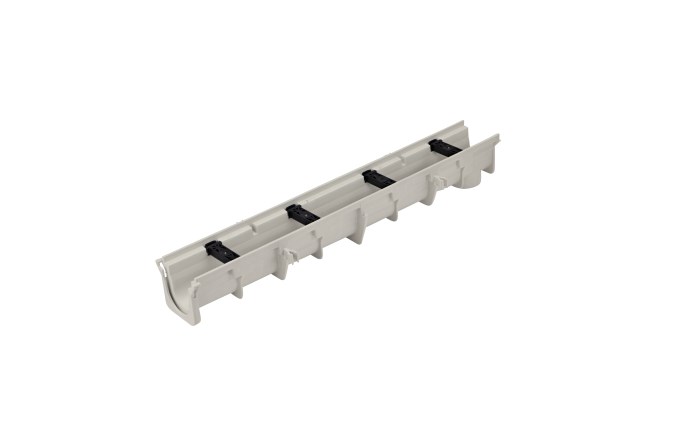

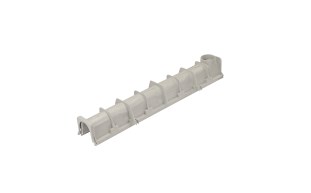

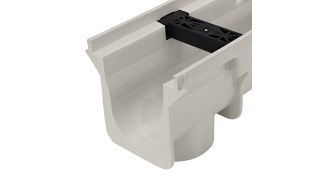

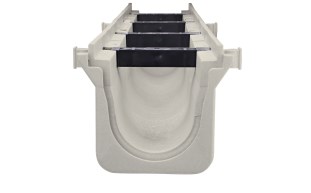

Remove excess surface water from impervious surfaces with the National Diversified Sales Dura Slope DS-093 6" x 4' x 6.4" Light Gray Channel Drain, 4.7" to 5.00 Invert Depth. This channel drain section has a built-in 0.7% slope with depths from 4.67" to 5.00" and is made of high-density polyethylene (HDPE) containing UV inhibitors. Channel comes with recyclable blank grate inserts to protect the channel from debris during installation, eliminating the need for using plywood. A durable alternative to concrete drains, the lightweight Dura Slope channel drainage system has lower freight costs compared to concrete, and is designed for easier handling and installation. The modular system consists of pre-sloped and neutral sections that snap together for secure alignment and minimal joint movement during installation. Each channel features a bottom outlet, rebar clips, and grate locking system. Channel drains, also known as trench drains, are long, narrow drains used for surface drainage of hardscapes. Channel drains collect and convey water to drain pipes, which carry the water downstream to discharge with a pop-up emitter, or to percolate into the ground with a dry well, infiltration trench, or local stormwater system. NDS channel and trench drains are engineered for durability, drainage, and performance.

Documents

No documents available

Feature Bullets

  • Captures surface runoff and conveys to connected drain pipe to prevent costly property damage and mildew growth
  • Ideal for driveways, parking areas, warehouses, loading docks, pools, wash-down areas, and other impervious surfaces
  • Modular sections snap together with interlocking tongue and groove joints and secures alignment
  • Lightweight yet durable for lower freight costs compared to traditional concrete channel drains; easier handling and installation
  • DuraLoc™ integral joint lock prevents joint movement during installation

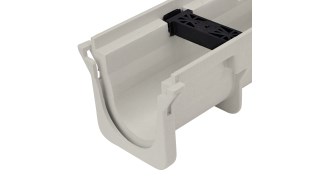

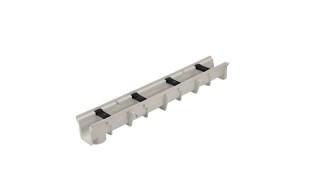

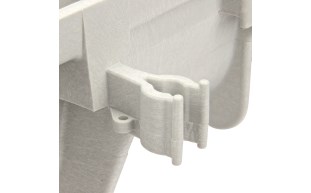

  • LeveLoc™ rebar clips with integral protruding knob levels channel and grips rebar

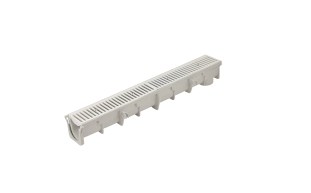

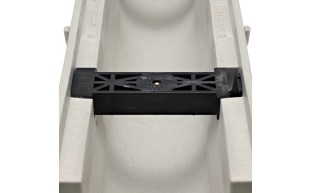

  • ProFit™ locking system locks grate to integral frame
  • Branch Availability

    content loaded

    Specifications

    • BrandNational Diversified Sales
    • ApplicationDriveway, Outdoor, Pool
    • Shipping Dimensions40.1 x 8.2 x 9.1 inch
    • ColorLight Gray
    • Each Product Weight11.05 pound
    • Flow Rate187 gal/min
    • Grate ColorLight Gray
    • Master Carton Quantity20
    • MaterialPolyethylene (plastic)
    • Minimum Sell Quantity1
    • Pallet Quantity20
    • Product Depth6.4 inch
    • Product Height6 inch
    • Product Width4 foot
    • UPC Code052063008868
