Hayward

DV5000™ Diaphragm Disc Suction Pool Cleaner

Product #:HAY-20-1016

Mfg. Part #:W3DV5000

  • This product is obsolete.
  • The superseded product was not found.

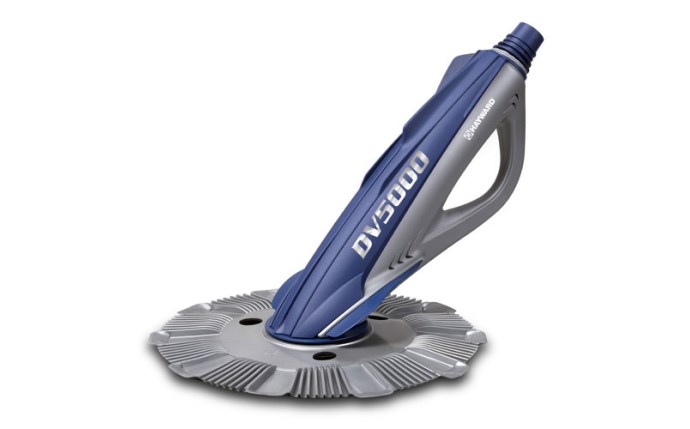

Hayward DV5000™ W3DV5000 Diaphragm Disc Suction Pool Cleaner

Hayward

DV5000™ Diaphragm Disc Suction Pool Cleaner

Product #:HAY-20-1016

Mfg. Part #:W3DV5000

EA

Description

Hayward DV5000™ W3DV5000 Diaphragm Disc Suction Pool Cleaner. The DV5000™ automatic suction pool cleaner vacuums debris in a single pass. It quietly and efficiently propels itself through the water cleaning up dirt, debris, twigs and more. DV5000 is backed by the most trusted name in pool equipment, Hayward. Regardless of your pool's shape, size or surface the DV5000 suction pool cleaners afford users a more energy-efficient random cleaning pattern.

Documents

No documents available

Feature Bullets

  • Efficient Pool Cleaning - Cleans your pool's floor and walls - automatically. Vacuums dirt from 3 intake ports
  • Simple & Reliable - One moving part ensures years of dependable service. Swivel foot pad for easy navigation out of tight corners
  • Easy to Use - Connects in less than 10 minutes to skimmer or suction port, no tools required
  • Energy efficient, powered by existing filtration system, does not require booster pump
  • Includes 40 feet of hose to cover pools up to 16 ft x 32 ft
  • Powered by your existing filtration equipment. Cleans your pool’s floor and walls – automatically
  • Swivel foot pad for easy navigation out of tight corners
  • Optional leaf basket and skimmer vacuum plate
  • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • ApplicationInground, Pool
    • Shipping Dimensions31.5 x 7.5 x 16 inch
    • ColorGray, Blue
    • ChannelPool Equipment
    • Cleaner TypeSuction Side
    • Each Product Weight15 pound
    • Green or Energy Efficient ProductTrue
    • Hose Length40 foot
    • Includes40 ft Hose
    • Master Carton Quantity1
    • Minimum Sell Quantity1
    • Pallet Quantity21
    • Pool Size16 ft x 32 ft
    • Warranty - General2 years
    • UPC Code0610377390057

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

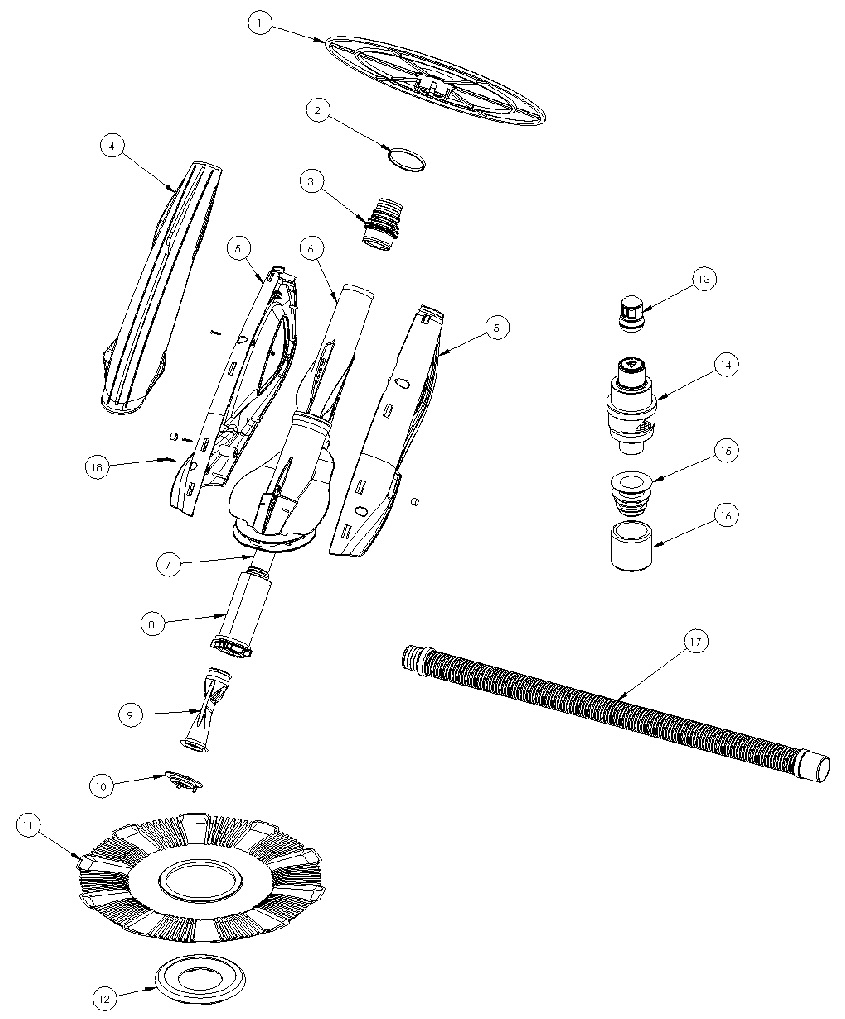

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    DCX110
    HAY-201-0004
    DCX110 KINGRAY HALO
    Product #: HAY-201-0004
    Mfg #: DCX110
    2
    2
    DCX334
    Band
    Product #:
    Mfg #: DCX334
    3
    3
    DCX212
    HAY-201-6130
    DCX212 SWIVEL PIT ASSY
    Product #: HAY-201-6130
    Mfg #: DCX212
    4
    4
    DCX332
    HAY-201-6131
    DCX332 DIAPHRAGM TOP COVER KIT
    Product #: HAY-201-6131
    Mfg #: DCX332
    5
    5
    DCX353
    HAY-201-6144
    DCX353 DIAPHRAGM BODY HALVES KIT
    Product #: HAY-201-6144
    Mfg #: DCX353
    6
    6
    DCX315
    HAY-201-6147
    DCX315 DIAPHRAGM BODY KIT
    Product #: HAY-201-6147
    Mfg #: DCX315
    7
    7
    DCX108
    HAY-201-0003
    Product #: HAY-201-0003
    Mfg #: DCX108
    8
    8
    DCX105
    HAY-201-0000
    Product #: HAY-201-0000
    Mfg #: DCX105
    9
    9
    DCX105C
    HAY-201-0024
    Product #: HAY-201-0024
    Mfg #: DCX105C
    10
    10
    DCX106
    HAY-201-0002
    DCX106 KINGRAY CASSETTE RETAINER
    Product #: HAY-201-0002
    Mfg #: DCX106
    11
    11
    DCX152
    HAY-201-0011
    Product #: HAY-201-0011
    Mfg #: DCX152
    12
    12
    DCX150
    HAY-201-0010
    Product #: HAY-201-0010
    Mfg #: DCX150
    13
    13
    DCX170
    HAY-201-0013
    DCX170 KINGRAY / SUNRAY EYEBALL DIVERTER
    Product #: HAY-201-0013
    Mfg #: DCX170
    14
    14
    DCX180
    HAY-201-0018
    DCX180 KINGRAY / SUNRAY FLOW REGULATOR W/ BYPASS LID
    Product #: HAY-201-0018
    Mfg #: DCX180
    15
    15
    DCX172
    HAY-201-0014
    Product #: HAY-201-0014
    Mfg #: DCX172
