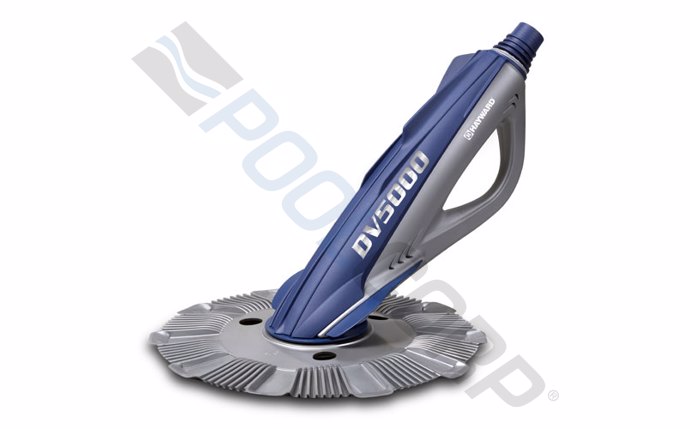

Hayward DV5000™ Diaphragm Disc Suction Pool Cleaner
Description
Hayward DV5000™ Diaphragm Disc Suction Pool Cleaner. The DV5000™ automatic suction pool cleaner vacuums debris in a single pass. It quietly and efficiently propels itself through the water cleaning up dirt, debris, twigs and more. DV5000 is backed by the most trusted name in pool equipment, Hayward. Regardless of your pool's shape, size or surface the DV5000 suction pool cleaners afford users a more energy-efficient random cleaning pattern.
Branch Availability
content loaded
Specifications
- BrandHayward
- ApplicationInground, Pool
- Shipping Dimensions31.5 x 7.5 x 16 inch
- ColorGray, Blue
- ChannelNone
- Cleaner TypeSuction Side, Vacuum
- Each Product Weight15 pound
- Green or Energy Efficient ProductTrue
- Hose Length40 foot
- Includes40 ft Hose
- Master Carton Quantity1
- Minimum Sell Quantity1
- Pallet Quantity21
- Pool Size16 ft x 32 ft
- UPC Code0610377139281
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

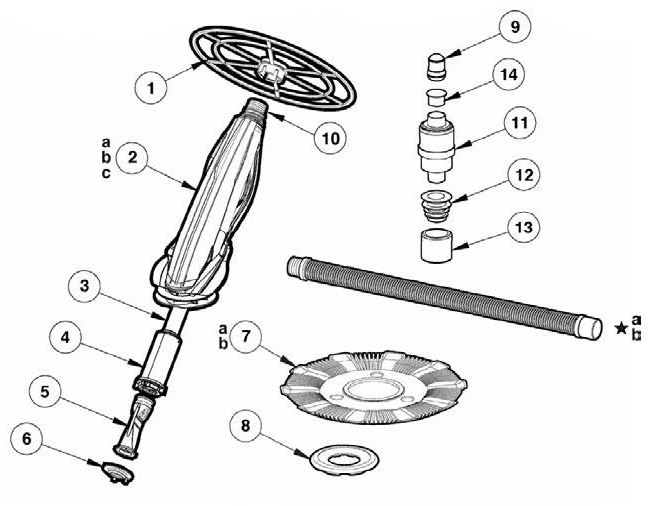

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
DCX110
HAY-201-0004
DCX110 KINGRAY HALO
Product #: HAY-201-0004
Mfg #: DCX110
2a
2a
DCX353
HAY-201-6144
DCX353 DIAPHRAGM BODY HALVES KIT
Product #: HAY-201-6144
Mfg #: DCX353
2b
2b
DCX332
HAY-201-6131
DCX332 DIAPHRAGM TOP COVER KIT
Product #: HAY-201-6131
Mfg #: DCX332
2c
2c
DCX334
Body Set Screws and Plugs (DV5000)
Product #:
Mfg #: DCX334
3
4
5
6
6
DCX106
HAY-201-0002
DCX106 KINGRAY CASSETTE RETAINER
Product #: HAY-201-0002
Mfg #: DCX106
7a
7b
8
10
10
DCX212
HAY-201-6130
DCX212 SWIVEL PIT ASSY
Product #: HAY-201-6130
Mfg #: DCX212
11
11
DCX180
HAY-201-0018
DCX180 KINGRAY / SUNRAY FLOW REGULATOR W/ BYPASS LID
Product #: HAY-201-0018
Mfg #: DCX180
12
13
