Raypak

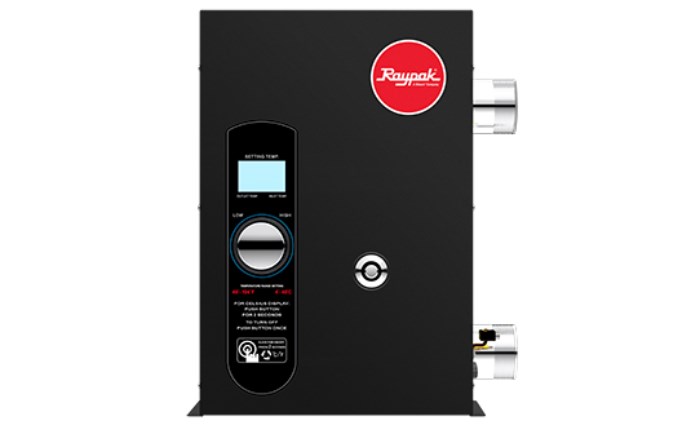

E3T Electric Pool & Spa Heater 1 Ph 27kW 240V

Product #:RAY-15-0015

Mfg. Part #:100-10000666


Raypak 100-10000666 E3T Electric Pool & Spa Heater 1 Ph 27kW 240V

Raypak

E3T Electric Pool & Spa Heater 1 Ph 27kW 240V

Product #:RAY-15-0015

Mfg. Part #:100-10000666

EA

Description

This heater is designed to raise and maintain water temperature by circulating water through an internal heating system before returning it to the vessel. As water passes through the unit, heat is transferred efficiently to achieve the desired temperature and offset heat loss caused by ambient conditions, evaporation, and system use. The heater provides consistent thermal output to support both initial heat-up and ongoing temperature maintenance.

Branch Availability

content loaded

Specifications

  • BrandRaypak
  • ChannelNone
  • Shipping Dimensions11.8 x 5.5 x 16.5 inch
  • ColorBlack
  • Each Product Weight25.9 pound
  • Minimum Sell Quantity1
  • UPC Code840328459957

WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

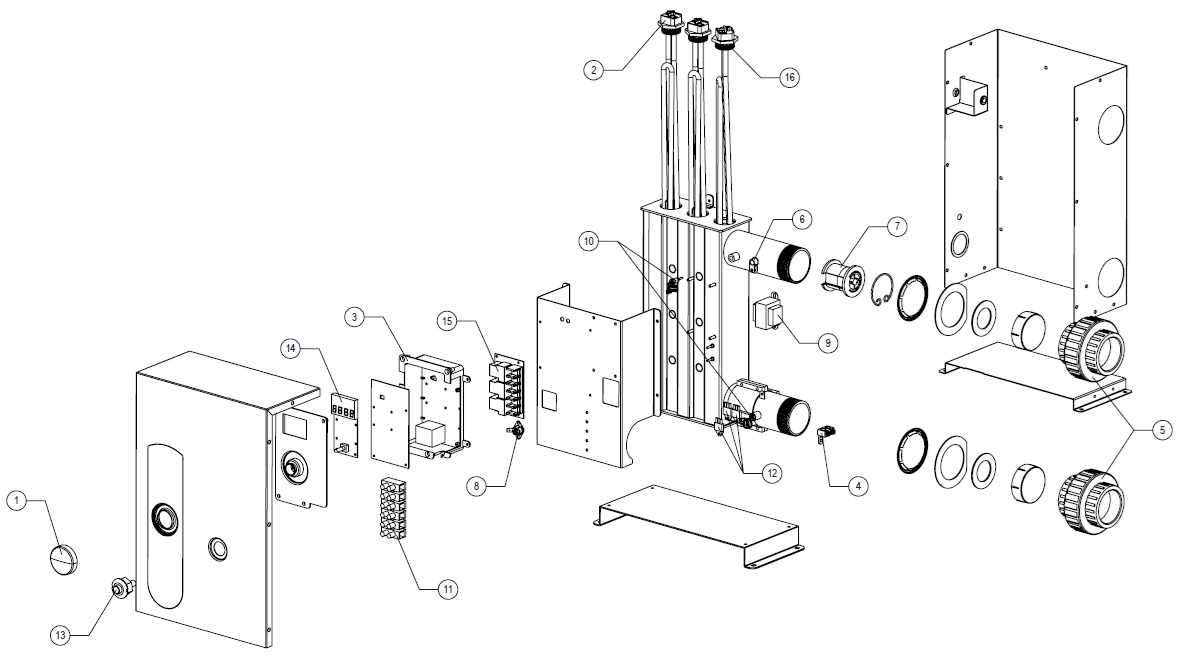

Parts & Schematics

content loaded
Mfg #
Product #
Description
Notes
1
1
017154F
Knob
Product #:
Mfg #: 017154F
2
2
017140F
Heating Element 9KW 240V
Product #:
Mfg #: 017140F
Notes:
Includes O-ring
3
3
017159F
Enclosure-PC Board
Product #:
Mfg #: 017159F
4
4
017148F
Grounding Terminal
Product #:
Mfg #: 017148F
5
5
017180F
Union-2" NPT X 2" C PVC
Product #:
Mfg #: 017180F
6
6
017151F
Hall Effect Sensor
Product #:
Mfg #: 017151F
7
7
017155F
RAY-151-1949
Product #: RAY-151-1949
Mfg #: 017155F
8
8
100-10003171
High Limit Manual-Reset
Product #:
Mfg #: 100-10003171
9
9
100-10003172
Transformer AC 220V 50Hz
Product #:
Mfg #: 100-10003172
10
10
100-10003173
Inlet & Outlet Thermistor
Product #:
Mfg #: 100-10003173
Notes:
Includes O-ring
11
11
100-10003175
Terminal Block PA18H-6P
Product #:
Mfg #: 100-10003175
12
12
100-10003170
Triac 3-Wire
Product #:
Mfg #: 100-10003170
13
13
100-10003178
Push Button
Product #:
Mfg #: 100-10003178
14
14
100-10003180
Circuit Board with LED Display
Product #:
Mfg #: 100-10003180
15
15
100-10003184
Relay
Product #:
Mfg #: 100-10003184

Wholegoods

There are no wholegoods available.
