Fire Magic

Echelon Diamond Power Burner Natural Gas with Stainless Steel Cooking Grid

Product #:RPC-95-0002

Mfg. Part #:19-6B1N-0

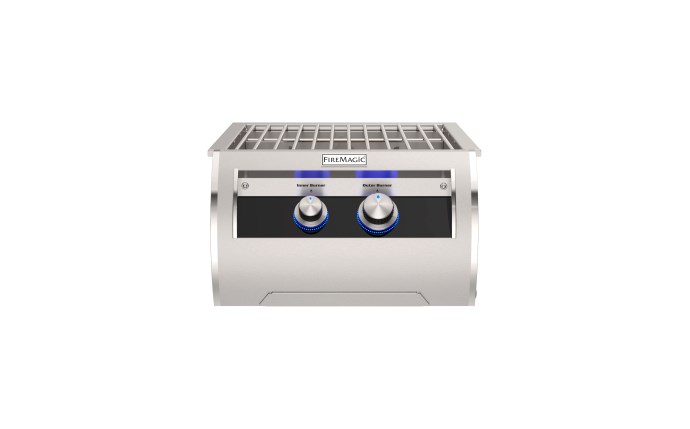

Fire Magic Echelon Diamond 19-6B1N-0 Power Burner Natural Gas with Stainless Steel Cooking Grid

Fire Magic

Echelon Diamond Power Burner Natural Gas with Stainless Steel Cooking Grid

Product #:RPC-95-0002

Mfg. Part #:19-6B1N-0

EA

Description

Paired with our flagship Fire Magic Echelon Diamond grill this high-heat power burner enhances your outdoor cooking versatility. With sleek lines highlighted by a modern black glass control panel this is a perfect match for your Fire Magic Echelon Diamond grill. Our dual brass burners power offers multiple cooking options.

Documents

Feature Bullets

  • All 300 Stainless Steel Housing
  • Stainless steel rod grids for pots and pans
  • The 10” diameter, heat-concentrating flame collimator focuses heat on the center 25% of unit
  • Back-lit control knobs for added aesthetics and visibility
  • Soft touch knobs for ease of use
  • Internal burner 3,000-15,000 BTU's
  • 24" x 18.25" Cooking surface
  • Includes removable stainless-steel lid

    • Branch Availability

    content loaded

    Specifications

    • BrandFire Magic
    • ApplicationOutdoor, Patio
    • Shipping Dimensions27 x 26 x 18 inch
    • ChannelNone
    • ColorBlack, Silver
    • Commercial, Residential, or ProfessionalResidential
    • Cutout Depth18.75 inch
    • Cutout Height11.5 inch
    • Cutout Width19 inch
    • Each Product Weight72 pound
    • MaterialStainless Steel
    • Minimum Sell Quantity1
    • Warranty - General3 years
    • BTUs60000
    • Burner MaterialStainless Steel
    • Cooking Grate MaterialStainless Steel
    • Cooking System TypeGas
    • Cover ColorSilver
    • Cover MaterialStainless Steel
    • Fuel TypeNatural Gas
    • Number of Burners2

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

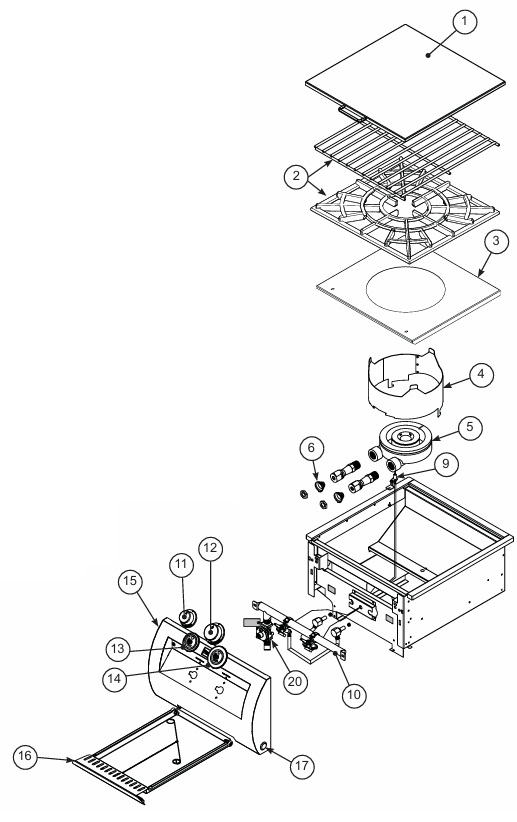

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    3278-06
    RPC-95-0083
    Protective Cover for Stainless Steel Power Burner
    Product #: RPC-95-0083
    Mfg #: 3278-06
    2
    2
    3545
    Porcelain cast iron cooking grid
    Product #:
    Mfg #: 3545
    2
    2
    3545-S
    Stainless steel cooking grid
    Product #:
    Mfg #: 3545-S
    3
    3
    3278-30
    Interior protection plate
    Product #:
    Mfg #: 3278-30
    4
    4
    3278-09
    Flame collimator
    Product #:
    Mfg #: 3278-09
    Notes:
    Stir fry ring
    5
    5
    3278-01B
    Burner assembly
    Product #:
    Mfg #: 3278-01B
    6
    6
    3/2/3048
    Air shutter spring
    Product #:
    Mfg #: 3/2/3048
    Notes:
    Set of 2
    7
    7
    3001-30-1
    Natural gas orifice
    Product #:
    Mfg #: 3001-30-1
    Notes:
    Outer Burner, Not shown
    7
    7
    3001-50-1
    Propane gas orifice
    Product #:
    Mfg #: 3001-50-1
    Notes:
    Outer Burner, Not shown
    8
    8
    3001-46-1
    Natural gas orifice
    Product #:
    Mfg #: 3001-46-1
    Notes:
    Inner Burner, Not Shown
    8
    8
    3001-1.25-1
    Propane gas orifice
    Product #:
    Mfg #: 3001-1.25-1
    Notes:
    Inner Burner, Not Shown
    9
    9
    4199-52
    Igniter assembly
    Product #:
    Mfg #: 4199-52
    10
    10
    3278-14
    Valve manifold
    Product #:
    Mfg #: 3278-14
    11
    11
    24182-42
    Small knob
    Product #:
    Mfg #: 24182-42
    Notes:
    Inner Burner
    12
    12
    24182-41
    Large knob
    Product #:
    Mfg #: 24182-41
    Notes:
    Outer Burner
