EE-TI Heat/Cool Heat Pump 140K BTU

Product #:AEH-15-1029

Mfg. Part #:EE3000T-R

  • This product is obsolete.
  • The superseded product was not found.

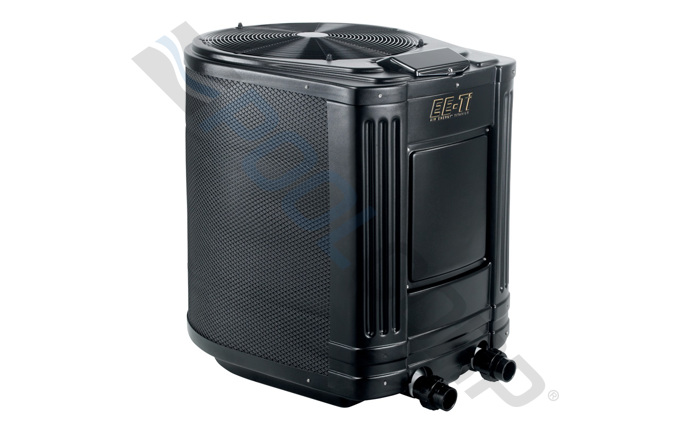

Jandy EE3000T-R EE-Tix, Heat/Cool Heat Pump 140K BTU 1PH, AEH-15-1029.

Jandy

EE-TI Heat/Cool Heat Pump 140K BTU

Product #:AEH-15-1029

Mfg. Part #:EE3000T-R

EA

Description

EE-TI Air Energy™ heat pumps make life around the pool easy. Saves as much as 80% to heat a pool over alternate heating methods. Jandy’s Air Energy heat pumps by Zodiac simply absorb free heat from the air and transfer it to the water, making the heating process efficient, ecological, and cost effective.

Documents

Feature Bullets

  • Advanced Controls - The control panel features can be accessed at the Heat Pump or moved to the home, cabana, or patio.
  • Temperature Control Features - Air defrost allows the Heat Pump to operate at lower air temperatures.
  • Automation Ready - Allows easy connection to Zodiac controls, other pool/spa automation systems, and automatic valve systems.
  • Efficient Design - Maintain Temperature feature keeps water at a set point temperature automatically, 24 hours per day, by overriding the pool time clock.

    • Branch Availability

    content loaded

    Specifications

    • BrandJandy
    • ApplicationPool
    • Shipping Dimensions42 x 34 x 48 inch
    • BTU Output140000
    • ChannelNone
    • Commercial, Residential, or ProfessionalCommercial, Residential
    • Each Product Weight344 pound
    • Frequency Rating (Hz)60
    • Master Carton Quantity1
    • Minimum Sell Quantity1
    • Pallet Quantity1
    • PhaseSingle
    • Voltage230V
    • Warranty - General2 years

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

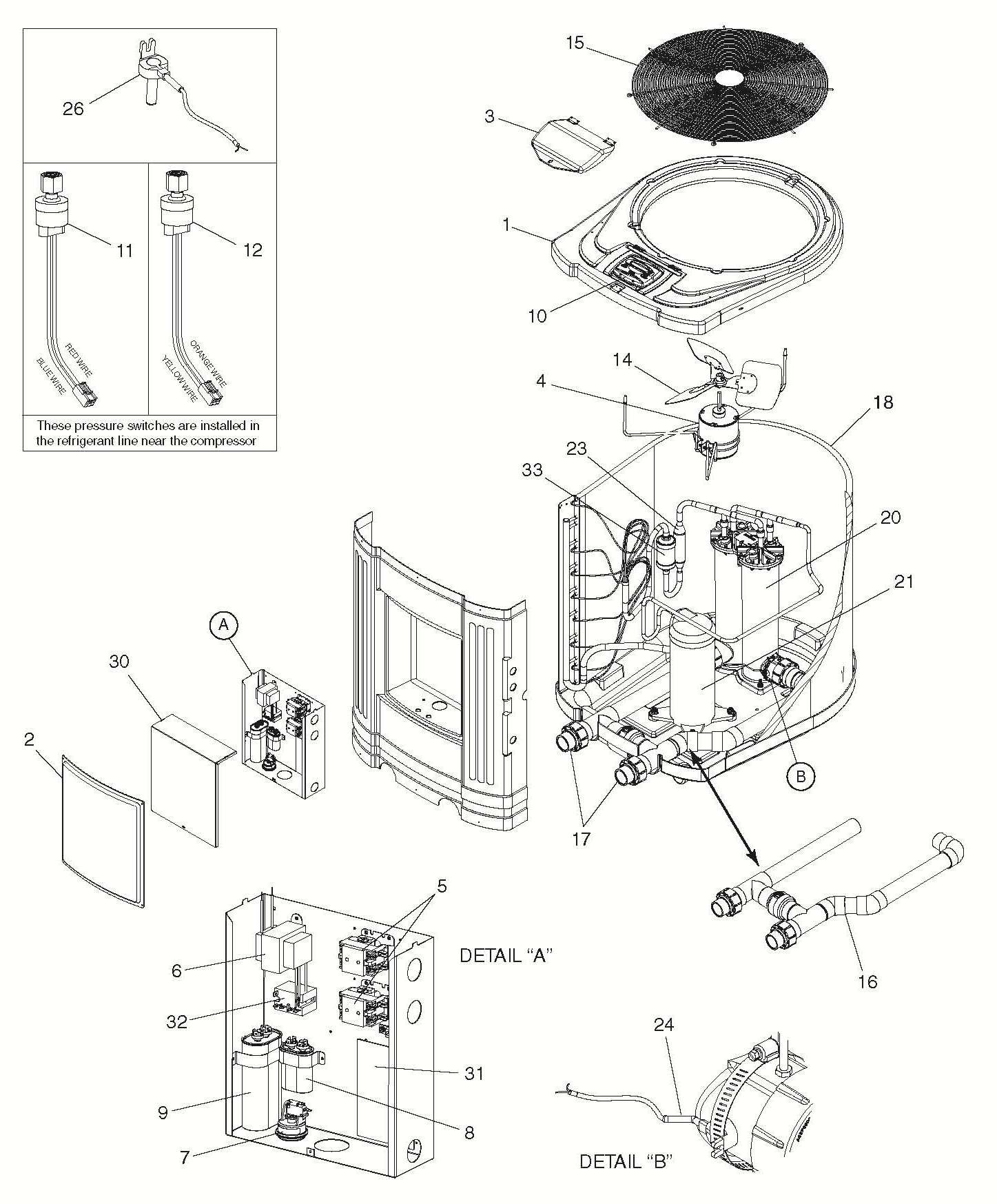

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    01
    01
    R3009100
    LAR-151-2254
    R3009100 PRO SERIES TOP ENCLOSURE JACKET
    Product #: LAR-151-2254
    Mfg #: R3009100
    01
    01
    R3009700
    LAR-151-2257
    R3009700 PRO SERIES TOP ENCLOSURE AE1500 REPL KIT
    Product #: LAR-151-2257
    Mfg #: R3009700
    02
    02
    R3000500
    LAR-151-2226
    R3000500 PRO SERIES HEAT PUMP REPL KIT
    Product #: LAR-151-2226
    Mfg #: R3000500
    03
    03
    R3000601
    AEH-151-1040
    R3000601 JE/ EE-TI/ AE-TI SMOKED CONTROL COVER
    Product #: AEH-151-1040
    Mfg #: R3000601
    04
    04
    R3000701
    AEH-151-1005
    EE-Ti 1/2 HP Fan Motor Heat Pump Replacement Kit 230 VAC
    Product #: AEH-151-1005
    Mfg #: R3000701
    04
    04
    R3000703
    AEH-151-1050
    R3000703 230VAC 0.5HP 1500 FAN MOTOR
    Product #: AEH-151-1050
    Mfg #: R3000703
    05
    05
    R3000801
    AEH-151-1006
    AE-Ti/EE-Ti 2-Pole 1-Phase Contactor
    Product #: AEH-151-1006
    Mfg #: R3000801
    05
    05
    R3000802
    LAR-151-2227
    R3000802 PRO SERIES 3-POLE CONTACTOR 3PH REPL KIT
    Product #: LAR-151-2227
    Mfg #: R3000802
    06
    06
    R3000901
    AEH-151-1007
    AE-Ti Transformer Replacement Kit 240/24V
    Product #: AEH-151-1007
    Mfg #: R3000901
    07
    07
    R3001000
    AEH-151-1008
    EE-Ti/AE-Ti Water Pressure Switch Replacement Kit
    Product #: AEH-151-1008
    Mfg #: R3001000
    08
    08
    R3001100
    AEH-151-1168
    EE-Ti 7.5/370 MDF Capacitor Fan Motor Replacement Kit
    Product #: AEH-151-1168
    Mfg #: R3001100
    08
    08
    R3001101
    AEH-151-1167
    R3001101 3/370 MFD FAN MOTOR CAPACITOR
    Product #: AEH-151-1167
    Mfg #: R3001101
    09
    09
    R3001203
    AEH-151-1170
    R3001203 80/370 COMPRESSOR CAPACITOR
    Product #: AEH-151-1170
    Mfg #: R3001203
    09
    09
    R3001204
    AEH-151-1169
    R3001204 60/370 COMPRESSOR CAPACITOR
    Product #: AEH-151-1169
    Mfg #: R3001204
    10
    10
    R3008800
    AEH-151-1033
    Universal Controller Replacement Kit
    Product #: AEH-151-1033
    Mfg #: R3008800

    Wholegoods

    There are no wholegoods available.
