Jandy
ePump™ VS 2.2HP 115/230 VAC with SpeedSet Controller Preinstalled
Product #:JDY-10-1004
Mfg. Part #:VSSHP220DV2AS

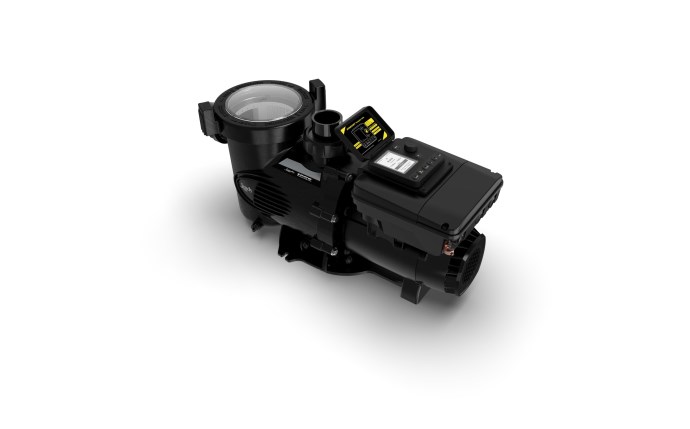

Jandy ePump™ VSSHP220DV2AS VS 2.2 HP 115/230 VAC with SpeedSet Controller Preinstalled, 2 Aux Relays
Jandy
ePump™ VS 2.2HP 115/230 VAC with SpeedSet Controller Preinstalled
Product #:JDY-10-1004
Mfg. Part #:VSSHP220DV2AS
EA
Description
Jandy ePump™ VSSHP220DV2AS VS 2.2 HP 115/230 VAC with SpeedSet Controller Preinstalled, 2 Aux Relays, when building a high-end pool, you want a high-end pump. The ePump™ is a high performance, low-maintenance, energy-saving variable-speed pool pump, in a large-sized body.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandJandy
- Amperage2100
- Shipping Dimensions33 x 14.5 x 18 inch
- ApplicationPool
- ColorBlack
- Commercial, Residential, or ProfessionalCommercial
- Each Product Weight66 pound
- Green or Energy Efficient ProductTrue
- Horsepower2.2
- Minimum Sell Quantity1
- Standards ApprovalsNSF Certified, Energy Star Certified
- Warranty - General3
- Wattage2100
- UPC Code052337101950

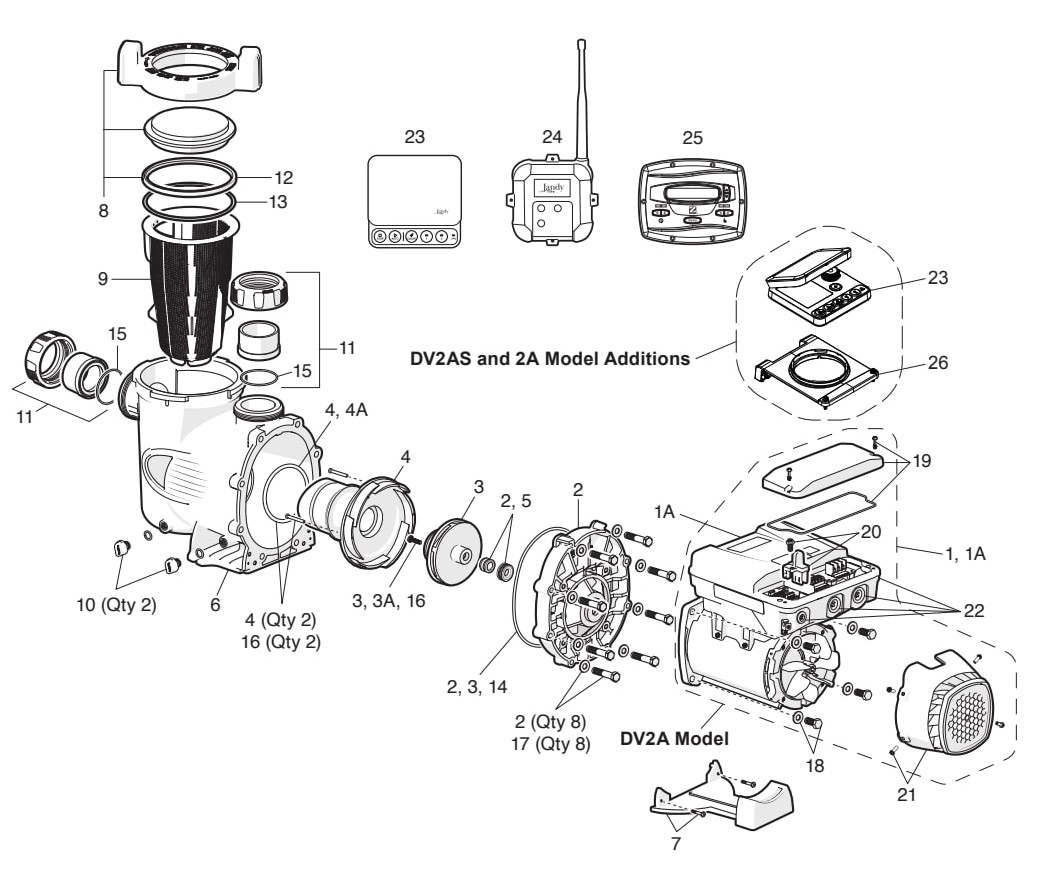

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
R0890100
Motor and Drive, 2.2 HP DV2A Models
Product #:
Mfg #: R0890100
1A
1A
R0974402
TLD-101-0010
Product #: TLD-101-0010
Mfg #: R0974402
2
2
R0445200
TLD-101-2030
Product #: TLD-101-2030
Mfg #: R0445200
3
3
R0807200
2.7 HP Impeller with Screw, Backplate and O-Ring
Product #:
Mfg #: R0807200
3A
4
4A
4A
R0622000
Diffuser O-Ring
Product #:
Mfg #: R0622000
5
6
7
7
R0445700
TLD-101-2011
Product #: TLD-101-2011
Mfg #: R0445700
8
9
9
R0445900
TLD-101-2013
Product #: TLD-101-2013
Mfg #: R0445900
10
11
12
12
R0446200
TLD-101-2019
Product #: TLD-101-2019
Mfg #: R0446200
Wholegoods
There are no wholegoods available.
