U.S. MOTORS

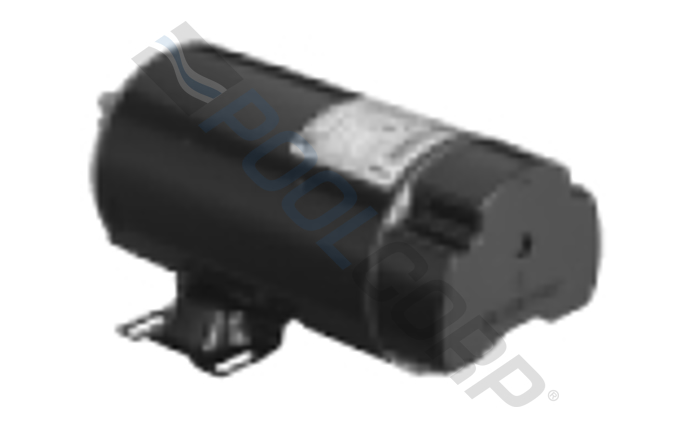

EZ48 1 Speed Pool/Spa Pump 48Y ODP Thru-Bolt Motor 1HP 115V
Product #:EMR-60-6077
Mfg. Part #:EZBN25
U.S. MOTORS EZBN25 EZ48 1 Speed Pool/Spa Pump 48Y ODP Thru-Bolt Motor 1HP 115V
U.S. MOTORS
EZ48 1 Speed Pool/Spa Pump 48Y ODP Thru-Bolt Motor 1HP 115V
Product #:EMR-60-6077
Mfg. Part #:EZBN25
Description
The U.S. MOTORS EZBN25 is a EZ48 1 Speed Pool/Spa Pump 48Y ODP Thru-Bolt Motor. It runs at 1HP and 115V. Thru-Bolt Motors are designed to ensure a secure and reliable connection of pump motors.
Documents
Branch Availability
content loaded
Specifications
- BrandU.S. MOTORS
- Ambient Temperature50 degrees Celsius
- Amps High Speed12
- Amps Low Speed12
- ApplicationPool, Spa
- Bearing TypeSealed Ball
- ColorBlack
- Each Product Weight20 pound
- Frequency Rating (Hz)60
- Horsepower1 horse power
- Insulation ClassB
- Length Less Shaft9.3 inch
- Master Carton Quantity1
- Material300 Stainless Steel
- Minimum Sell Quantity1
- Motor Enclosure TypeOpen Drip Proof
- Motor Frame Size48Y
- Motor Shaft RotationCounterclockwise
- Motor Speed1-Speed
- Motor Thermal ProtectionAutomatic Reset
- Pallet Quantity1
- PhaseSingle
- RPMs Max3450
- RPMs Min3450
- Service Factor1
- Shaft DesignThreaded
- Shaft Diameter0.5 inch
- Shaft Length1.81 inch
- Shaft Material303 Stainless Steel
- Voltage115V
- ChannelNone
- Shaft Height3.5 inch
- UPC Code786382058425
Parts & Schematics
There are no parts or schematics available.
Wholegoods
There are no wholegoods available.
