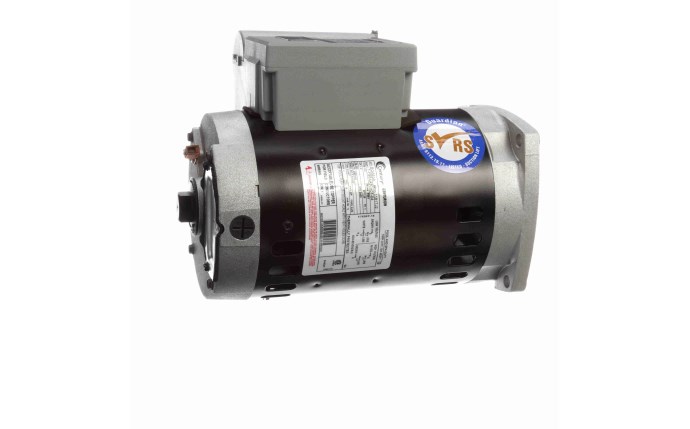

Century® Guardian® BG853A Guardian Square Flange Pool Pump Motor ; 1HP, 1 Ph, 60 Hz, 230/115 V, 3600 RPM, P56Y Frame
Description
The Guardian motor with safety vacuum release system (SVRS) is designed to stop the pool pump motor if a blockage is detected. Thanks to this piece of mind product, you can go on enjoying your leisure time without worrying about potential motor damage.
Branch Availability
content loaded
Specifications
- BrandCentury
- Ambient Temperature50 degrees Celsius
- Shipping Dimensions19 x 10 x 11.5 inch
- Amps High Speed14.2
- Amps Low Speed7.1
- ApplicationPool
- Bearing TypeBall
- ColorBlack
- Duty CycleContinuous
- Each Product Weight26 pound
- Frequency Rating (Hz)60
- Horsepower1 horse power
- Insulation ClassB
- Minimum Sell Quantity1
- Motor Enclosure TypeOpen Drip Proof
- Motor Frame Size56Y
- Motor Shaft RotationCounterclockwise Pulley End
- Motor Speed1-Speed
- Motor Thermal ProtectionAutomatic Reset
- Pallet Quantity30
- PhaseSingle
- RPMs Max3450
- RPMs Min3450
- Service Factor1.25
- Shaft DesignThreaded
- Shaft Diameter0.625 inch
- Shaft Length0.75 inch
- Shaft MaterialStainless Steel
- Standards ApprovalsCSA Certified
- Voltage115V, 230V
- Commercial, Residential, or ProfessionalResidential
- Diameter6.5 inch
- Flange TypeSquare
- Frame MaterialRolled Steel
- Motor RatingUp-Rated
- UPC Code786674013866
